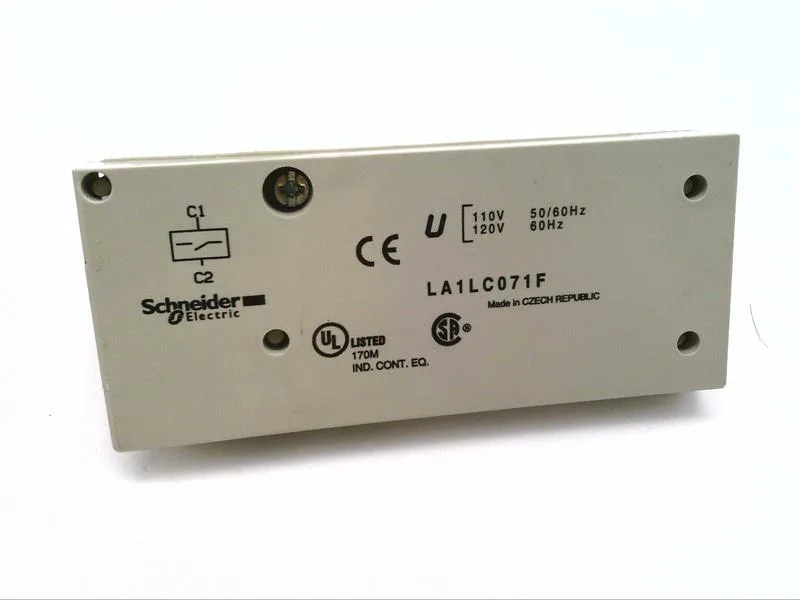

Schneider Electric LA1LC071F
MPNLA1LC071F
Obsolete
LA1LC071F - INTEGRAL by TELEMECANIQUE
$101.47Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Voltage release type | Instantaneous Shunt trip |
| Product or component type | Shunt trip |
| Threshold tripping voltage | 0.35...0.7 Uc |
| Coil voltage | 110 V AC 50 Hz 110...120 V AC 60 Hz |
| Control circuit voltage limits | 0.7...1.1 Uc |
| Inrush power in | 8 VA AC |
| Hold-in power consumption in | 4 VA AC |
| Connections - terminals | screw connection |
| Range | TeSys |
| Category | 22384-STARTERS,INTEGRAL,ACCESS |
| Time delay | Without time delay |
| Operating time | >= 10 ms |
| Quantity per set | Set of 10 |
| Device short name | LA1LC |
| Device application | Control |
MPN
LA1LC071F
