Schneider Electric LC1D505FE7
MPNLC1D505FE7
Active

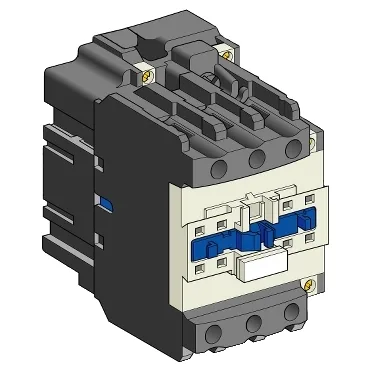

contactor TeSys LC1-D - 3 poles - AC-3 440V 50 A - coil 115 V AC
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Product / component type | Contactor |
| Application | Resistive load Motor control |
| Parameter | Value |
|---|---|
| Utilisation category | AC-1 AC-2 AC-3 AC-4 |
| Parameter | Value |
|---|---|
| Pole configuration | 3P |
| Parameter | Value |
|---|---|
| IP degree of protection | IP2X conforming to IEC 60529 IP2X conforming to VDE 0106 |
| Operating altitude | 3000 m without derating |
| Fire resistance | 850 °C conforming to IEC 60695-2-1 |
| Parameter | Value |
|---|---|
| Standards | IEC 60947-4-1 UL 508 EN 60947-5-1 CSA C22.2 No 14 EN 60947-4-1 IEC 60947-5-1 |
| Parameter | Value |
|---|---|
| Width | 75 mm |
| Height | 127 mm |
| Depth | 114 mm |
MPN
LC1D505FE7
