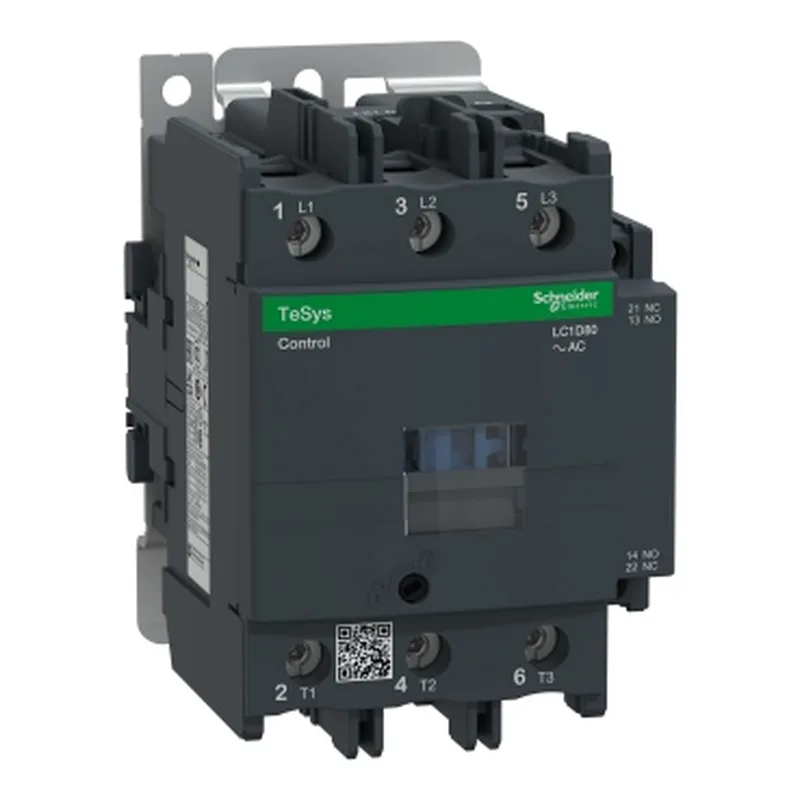

Schneider Electric LC1D80S5
MPNLC1D80S5
Active
Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 80A, 500V AC 50Hz coil, screw clamp terminals
$433.76Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jun 2026
Specifications
| Parameter | Value |
|---|---|
| Product / component type | Contactor |
| Series / range | TeSys |
| Application | Motor control Resistive load |
| Parameter | Value |
|---|---|
| Rated operational voltage (Ue) | Power circuit Power circuit 10 MOhm for signalling circuit |
| Utilisation category | AC-3 AC-3e AC-4 AC-1 |
| Parameter | Value |
|---|---|
| Pole configuration | 3P |
| Parameter | Value |
|---|---|
| IP degree of protection | IP20 front face IEC 60529 |
| Operating altitude | 0...3000 m |
| Mechanical robustness | Vibrations contactor open 2 Gn, 5...300 Hz) Shocks contactor open 8 Gn for 11 ms) Vibrations contactor closed 3 Gn, 5...300 Hz) Shocks contactor closed 10 Gn for 11 ms) |
| Protective treatment / pollution degree | THIEC 60068-2-30 |
| Fire resistance | 1562 °F (850 °C) IEC 60695-2-1 |
| Flame retardance | V1 UL 94 |
| Parameter | Value |
|---|---|
| Standards | EN 60947-4-1 EN 60947-5-1 IEC 60947-4-1 IEC 60947-5-1 CSA C22.2 No 14 UL 60947-4-1 IEC 60335-2-40:Annex JJ UL 60335-2-40:Annex JJ IEC 60335-1:Clause 30.2 |
| Parameter | Value |
|---|---|
| Width | 3.3 in (85 mm) |
| Height | 5 in (127 mm) |
| Depth | 5.1 in (130 mm) |
MPN
LC1D80S5
