Schneider Electric LC1E120M7 — Contactors

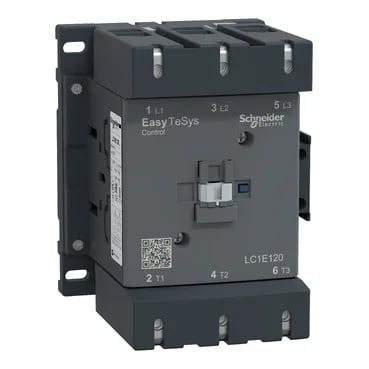

Schneider Electric LC1E120M7 Easy TeSys Contactor, 120A AC-3

MPNLC1E120M7
Active

Schneider Electric Easy TeSys Control, LC1E120M7, 3-pole contactor, AC-3/AC-3e 120A/96A ≤440V, 220V AC coil 50/60Hz.

StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

Identification

LC1E120M7 — Identification
ParameterValue
Product / component typeContactor
Series / rangeEasy TeSys
ApplicationMotor control Resistive load

Ratings & Performance

LC1E120M7 — Ratings & Performance
ParameterValue
Rated operational voltage (Ue)Power circuit: 10 MOhm for control circuit
Utilisation categoryAC-3 AC-3e AC-1

Contacts & Poles

LC1E120M7 — Contacts & Poles
ParameterValue
Pole configuration3P

Environmental

LC1E120M7 — Environmental
ParameterValue
IP degree of protectionIP2X conforming to IEC 60529
Operating altitude3000 m without derating
Mechanical robustnessVibrations contactor open (1.5 Gn, 5...300 Hz) Vibrations contactor closed (3 Gn, 5...300 Hz) Shocks contactor open (6 Gn for 11 ms) Shocks contactor closed (7 Gn for 11 ms)
Protective treatment / pollution degreeTH (pollution degree 3) conforming to IEC 60068-2-30 test Db
Fire resistance850 °C conforming to IEC 60695-2-1

Approvals

LC1E120M7 — Approvals
ParameterValue
StandardsEN/IEC 60947-1 EN/IEC 60947-4-1 EN/IEC 60947-5-1 GB/T 14048.1 GB/T 14048.4 GB/T 14048.5

Mechanical

LC1E120M7 — Mechanical
ParameterValue
Width120 mm
Height158 mm
Depth132 mm

Product details

The LC1E120M7 is a 3-pole contactor from the Easy TeSys Control range, rated 120 A in AC-3 duty and 96 A in AC-3e at ≤440 V. The 220 V AC coil at 50/60 Hz is fixed; if your control voltage is different, this isn't the variant you want. It also carries an AC-1 rating for resistive loads, meaning it can switch heaters or lighting banks where the current doesn't spike on make.

Mounts on DIN rail or plate, which gives you flexibility in panel layout — snap it on a rail for quick replacement or bolt it to a backplate in high-vibration environments. IP2X means finger-safe from the front but not sealed; keep it inside an enclosure.

Operating altitude goes to 3000 m without derating — useful for high-altitude installations where air density drops and contactors typically need to be de-rated. Ambient temperature range is -20 to 70 °C at the coil, with operation limited to -5 to 55 °C; storage from -60 to 80 °C.

Frequently asked questions

What utilisation categories does it carry, and what do they mean for my motor load?

It is rated AC-3 (squirrel-cage motor starting, 120 A), AC-3e (energy-efficient motor starting, 96 A), and AC-1 (resistive load). The AC-3e rating is the one to watch for modern IE3/IE4 motors that draw slightly different inrush characteristics.

What compliance documentation does this contactor carry?

It complies with EN/IEC 60947-1, EN/IEC 60947-4-1, EN/IEC 60947-5-1, and the equivalent Chinese GB/T 14048.1, GB/T 14048.4, GB/T 14048.5. Fire resistance is 850 °C per IEC 60695-2-1. The TH protective treatment per IEC 60068-2-30 covers pollution degree 3 environments.

What are the mounting options?

It mounts on DIN rail or directly to a backplate. Dimensions are 158 mm high, 120 mm wide, 132 mm deep.

MPN
LC1E120M7
