Schneider Electric LC1E160Q7 — Contactors

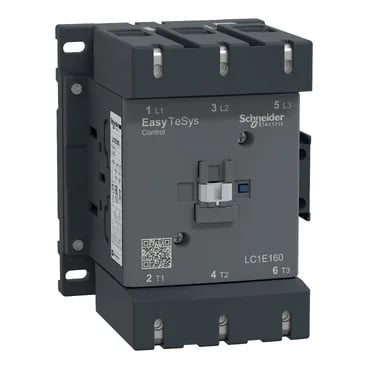

Schneider Electric LC1E160Q7 Easy TeSys Contactor, 3P, 160A

MPNLC1E160Q7
Active

Schneider Electric Easy TeSys Control, LC1E160Q7, 3P(3NO) contactor, AC-3/AC-3e ≤440 V, 160 A / 100 A, 380 V AC coil 50/60 Hz, DIN-rail / plate mount, 2.3 kg.

StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

Identification

LC1E160Q7 — Identification
ParameterValue
Product / component typeContactor
Series / rangeEasy TeSys
ApplicationMotor control Resistive load

Ratings & Performance

LC1E160Q7 — Ratings & Performance
ParameterValue
Rated operational voltage (Ue)Power circuit: 10 MOhm for auxiliary contact circuit
Utilisation categoryAC-3 AC-3e AC-1

Contacts & Poles

LC1E160Q7 — Contacts & Poles
ParameterValue
Pole configuration3P

Environmental

LC1E160Q7 — Environmental
ParameterValue
IP degree of protectionIP2X conforming to IEC 60529
Operating altitude3000 m without derating
Mechanical robustnessVibrations contactor open (1.5 Gn, 5...300 Hz) Vibrations contactor closed (3 Gn, 5...300 Hz) Shocks contactor open (6 Gn for 11 ms) Shocks contactor closed (7 Gn for 11 ms)
Protective treatment / pollution degreeTH (pollution degree 3) conforming to IEC 60068-2-30 test Db
Fire resistance850 °C conforming to IEC 60695-2-1

Approvals

LC1E160Q7 — Approvals
ParameterValue
StandardsEN/IEC 60947-1 EN/IEC 60947-4-1 EN/IEC 60947-5-1 GB/T 14048.1 GB/T 14048.4 GB/T 14048.5

Mechanical

LC1E160Q7 — Mechanical
ParameterValue
Width120 mm
Height158 mm
Depth132 mm

Product details

It handles 160 A in AC-3 duty (motor start/run) and 100 A in AC-3e duty up to 440 V, with a 380 V AC coil that works on 50/60 Hz supplies. It's built to EN/IEC 60947-4-1 (the contactor standard for motor starters) and carries IP2X finger protection on the enclosure. The 1.5 ms non-overlap time between NC and NO contacts is a detail the panel builder cares about — it prevents a momentary short across the coil circuit when the contactor transitions.

That -5 °C lower end means it's fine for a heated electrical room but not for an unheated shed in a northern winter — if the panel sits outdoors, you'll want to check the ambient at startup.

Frequently asked questions

What are the key ratings for this contactor?

It is a 3-pole contactor rated 160 A in AC-3 duty and 100 A in AC-3e duty at ≤440 V, with a 380 V AC coil at 50/60 Hz. It meets EN/IEC 60947-4-1 and carries IP2X protection.

What standards does the LC1E160Q7 comply with?

It complies with EN/IEC 60947-1, EN/IEC 60947-4-1, EN/IEC 60947-5-1, and the corresponding Chinese GB/T standards. Fire resistance is tested to 850 °C per IEC 60695-2-1.
