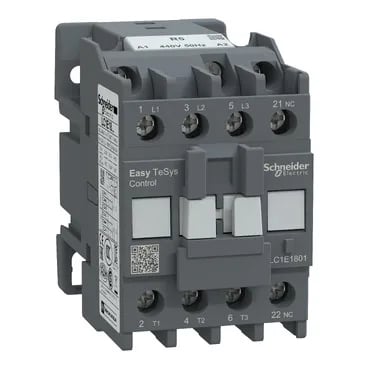

The Schneider Electric LC1E1801R5 is a 3-pole contactor from the Easy TeSys Control range, rated for AC-3 motor switching up to 18 A at ≤440 V with a 440 V AC 50 Hz coil and one NC auxiliary contact. Rated for utilisation categories AC-3 (motor starting), AC-3e (enhanced motor), and AC-1 (resistive load), this contactor handles both motor control and resistive load applications.
For a direct replacement within the Easy TeSys family, a parametric cross-reference is needed — contact us with your application details and we can identify a current-production equivalent.
Compliant with EN/IEC 60947-1, -4-1, and -5-1, plus GB/T 14048.1.4, and.5, and EN/IEC 60335-1 Clause 30.2 and -2-40 Annex JJ. IP2X finger protection per IEC 60529. Ambient temperature range: -5 °C to 55 °C operation, -20 °C to 70 °C at Uc, storage -60 °C to 80 °C. Mechanical robustness rated for vibrations (1.5 Gn open, 3 Gn closed, 5-300 Hz) and shocks (7 Gn open, 10 Gn closed, 11 ms).
