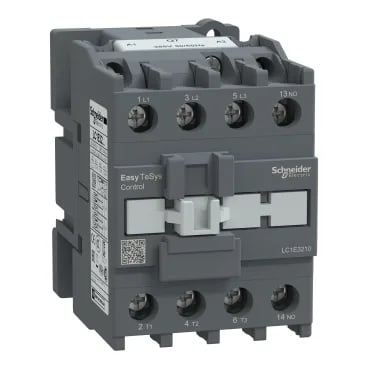

Schneider Electric Easy TeSys Control LC1E3210Q7, 3P(3NO) contactor, AC-3/AC-3e 32A ≤440V, 380V AC coil 50/60Hz, 1NO auxiliary contact.
| Parameter | Value |
|---|---|
| Product / component type | Contactor |
| Series / range | Easy TeSys |
| Application | Motor control Resistive load |
| Parameter | Value |
|---|---|
| Rated operational voltage (Ue) | Power circuit: 10 MOhm for control circuit |
| Utilisation category | AC-3 AC-3e AC-1 |
| Parameter | Value |
|---|---|
| Pole configuration | 3P |
| Parameter | Value |
|---|---|
| IP degree of protection | IP2X conforming to IEC 60529 |
| Operating altitude | 3000 m without derating |
| Mechanical robustness | Vibrations contactor open (1.5 Gn, 5...300 Hz) Vibrations contactor closed (3 Gn, 5...300 Hz) Shocks contactor closed (10 Gn for 11 ms) Shocks contactor open (6 Gn for 11 ms) |
| Protective treatment / pollution degree | TH (pollution degree 3) conforming to IEC 60068-2-30 test Db |
| Fire resistance | 850 °C conforming to IEC 60695-2-1 |
| Parameter | Value |
|---|---|
| Standards | EN/IEC 60947-1 EN/IEC 60947-4-1 EN/IEC 60947-5-1 GB/T 14048.1 GB/T 14048.4 GB/T 14048.5 EN/IEC 60335-1:Clause 30.2 EN/IEC 60335-2-40:Annex JJ |
| Parameter | Value |
|---|---|
| Width | 56 mm |
| Height | 84 mm |
| Depth | 86 mm |
It switches 32 A in AC-3 duty (motor starting) up to 440 V, with a 380 V AC coil at 50/60 Hz. One normally-open auxiliary contact is built in.
The IP2X finger protection means it's safe for open-panel mounting where accidental contact is possible.
Operates from -5 to 55 °C, stores from -60 to 80 °C, and works at altitudes up to 3000 m without derating. Protective treatment TH (pollution degree 3) handles humid environments per IEC 60068-2-30.
32 A in AC-3 (motor) duty at ≤440 V, 380 V AC coil 50/60 Hz, 3 poles with one normally-open auxiliary contact.
EN/IEC 60947-1, -4-1, -5-1, GB/T 14048.1/4/5, and portions of EN/IEC 60335 for appliance applications.
56 mm wide, 84 mm tall, 86 mm deep. Fits DIN rail or plate mounting.
