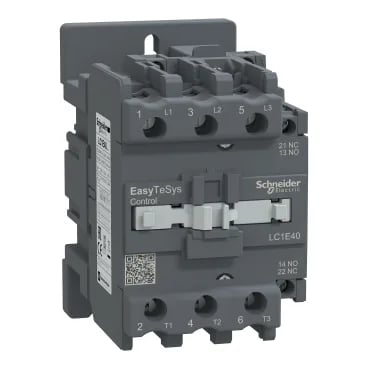

Schneider Electric LC1E40M6 — Contactors

Schneider LC1E40M6 Easy TeSys Contactor, 40A AC-3, 220V AC C

MPNLC1E40M6
Active

Schneider Electric Easy TeSys Control series, LC1E40M6, 3-pole contactor, 40 A AC-3 at ≤440 V, 220 V AC coil, DIN-rail mount.

StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

Identification

LC1E40M6 — Identification
ParameterValue
Product / component typeContactor
Series / rangeEasy TeSys
ApplicationMotor control Resistive load

Ratings & Performance

LC1E40M6 — Ratings & Performance
ParameterValue
Rated operational voltage (Ue)Power circuit: 10 MOhm for control circuit
Utilisation categoryAC-3 AC-3e AC-1

Contacts & Poles

LC1E40M6 — Contacts & Poles
ParameterValue
Pole configuration3P

Environmental

LC1E40M6 — Environmental
ParameterValue
IP degree of protectionIP2X conforming to IEC 60529
Operating altitude3000 m without derating
Mechanical robustnessVibrations contactor open (1.5 Gn, 5...300 Hz) Vibrations contactor closed (3 Gn, 5...300 Hz) Shocks contactor open (6 Gn for 11 ms) Shocks contactor closed (7 Gn for 11 ms)
Protective treatment / pollution degreeTH (pollution degree 3) conforming to IEC 60068-2-30 test Db
Fire resistance850 °C conforming to IEC 60695-2-1

Approvals

LC1E40M6 — Approvals
ParameterValue
StandardsEN/IEC 60947-1 EN/IEC 60947-4-1 EN/IEC 60947-5-1 GB/T 14048.1 GB/T 14048.4 GB/T 14048.5 EN/IEC 60335-1:Clause 30.2 EN/IEC 60335-2-40:Annex JJ

Mechanical

LC1E40M6 — Mechanical
ParameterValue
Width75 mm
Height127 mm
Depth114 mm

Product details

The Schneider Electric LC1E40M6 is a 3-pole contactor from the Easy TeSys Control range, rated 40 A in AC-3 duty at up to 440 V with a 220 V AC coil. AC-3 is the standard utilisation category for squirrel-cage motor switching — starting and stopping during running, not plugging or inching — so the 40 A figure is the motor current it handles in that cycle. The same contactor also carries AC-3e (enhanced motor switching) and AC-1 (resistive load) ratings, giving flexibility for heater banks or lighting circuits on the same panel. That matters when the contactor drives a reversing starter or a star-delta transition — you need that guaranteed break-before-make to avoid a phase-to-phase short through the power circuit.

Dimensions are 75 mm wide, 127 mm high, 114 mm deep — the depth is the dimension behind the panel face, so check gland-plate clearance if the enclosure is shallow.

That covers the contactor as a switching device, its motor-starting duty, and the control-circuit auxiliaries. Also listed for EN/IEC 60335-1 Clause 30.2 and -2-40 Annex JJ, which means it meets glow-wire and fire-resistance requirements for appliance and HVAC applications.

Frequently asked questions

What are the key ratings for this contactor?

Rated 40 A in AC-3 duty at up to 440 V, with a 220 V AC coil. Also carries AC-3e and AC-1 utilisation categories. Three poles, all normally open.

What standards does the LC1E40M6 comply with?

Certified to EN/IEC 60947-1, -4-1, -5-1, GB/T 14048.1/4/5, and EN/IEC 60335-1 Clause 30.2 and -2-40 Annex JJ. Fire resistance at 850 °C per IEC 60695-2-1.

What is the mounting and enclosure requirement?

Mounts on DIN rail or plate. IP2X front protection means it needs to be inside a cabinet — not rated for washdown or outdoor exposure.
