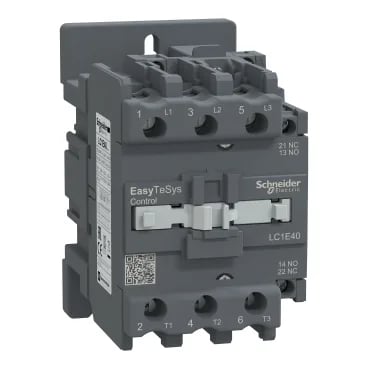

Schneider Electric LC1E40Q5 — Contactors

Schneider LC1E40Q5 Easy TeSys Contactor, 40A AC-3, 380VAC Co

MPNLC1E40Q5
Active

Schneider Electric Easy TeSys Control LC1E, 3P(3NO) contactor, AC-3 ≤440 V 40 A, 380 V AC 50 Hz coil, plate/DIN-rail mount.

StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

Identification

LC1E40Q5 — Identification
ParameterValue
Product / component typeContactor
Series / rangeEasy TeSys
ApplicationMotor control Resistive load

Ratings & Performance

LC1E40Q5 — Ratings & Performance
ParameterValue
Rated operational voltage (Ue)Power circuit: 10 MOhm for control circuit
Utilisation categoryAC-3 AC-3e AC-1

Contacts & Poles

LC1E40Q5 — Contacts & Poles
ParameterValue
Pole configuration3P

Environmental

LC1E40Q5 — Environmental
ParameterValue
IP degree of protectionIP2X conforming to IEC 60529
Operating altitude3000 m without derating
Mechanical robustnessVibrations contactor open (1.5 Gn, 5...300 Hz) Vibrations contactor closed (3 Gn, 5...300 Hz) Shocks contactor open (6 Gn for 11 ms) Shocks contactor closed (7 Gn for 11 ms)
Protective treatment / pollution degreeTH (pollution degree 3) conforming to IEC 60068-2-30 test Db
Fire resistance850 °C conforming to IEC 60695-2-1

Approvals

LC1E40Q5 — Approvals
ParameterValue
StandardsEN/IEC 60947-1 EN/IEC 60947-4-1 EN/IEC 60947-5-1 GB/T 14048.1 GB/T 14048.4 GB/T 14048.5 EN/IEC 60335-1:Clause 30.2 EN/IEC 60335-2-40:Annex JJ

Mechanical

LC1E40Q5 — Mechanical
ParameterValue
Width75 mm
Height127 mm
Depth114 mm

Product details

The Schneider Electric LC1E40Q5 is a three-pole contactor from the Easy TeSys Control range, rated for 40 A in AC-3 duty at ≤440 V — meaning it handles motor switching up to that current, plus resistive loads (AC-1) and AC-3e applications. The 380 V AC 50 Hz coil pulls in reliably across the rated control voltage band. The 75 mm width and 127 mm height keep it compact for multi-contactor assemblies.

For resistive loads, the AC-1 category applies, though the exact current isn't listed here; typical derating from AC-3 to AC-1 is roughly 1.5×, but verify against the full datasheet for your specific load. Altitude rating of 3000 m without derating covers most installations; above that, standard IEC derating applies.

Also passes the glow-wire test at 850 °C per IEC 60695-2-1, and meets the appliance standard EN/IEC 60335-1 Clause 30.2 and EN/IEC 60335-2-40 Annex JJ for heating and air-conditioning equipment. IP2X finger protection on the contactor body.

Frequently asked questions

What are the key ratings for the LC1E40Q5?

AC-3 motor-switching rating of 40 A at ≤440 V, 380 V AC 50 Hz coil, three-pole (3NO). Mounts on plate or DIN rail. Operating temperature -5 to +55 °C, altitude 3000 m without derating.

What compliance documentation does Schneider provide for this contactor?

The contactor is certified to EN/IEC 60947-1, -4-1, -5-1 and the corresponding GB/T standards. It also meets the glow-wire test at 850 °C and the appliance standards EN/IEC 60335-1 Clause 30.2 and EN/IEC 60335-2-40 Annex JJ.

MPN
LC1E40Q5
