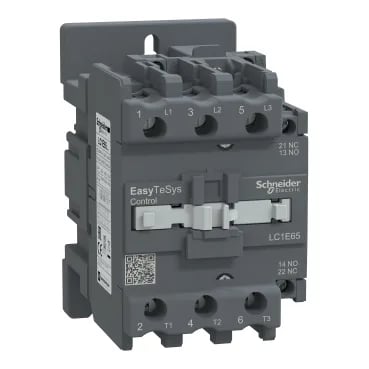

The LC1E65E7 is a 3-pole contactor from Schneider Electric's Easy TeSys Control range, rated for 65 A in AC-3 duty at ≤440 V — that's the motor-switching current, covering induction motors up to roughly 30 kW at 400 V three-phase. Mounts on DIN rail or a backplate — the 75 mm width fits a standard 4-module footprint, and the 127 mm height leaves clearance for wiring ducts in a shallow enclosure. The 114 mm depth means it projects about 4.5 inches from the rail, so factor that into gland-plate clearance.
Compliant with EN/IEC 60947-4-1 (contactor standard) and EN/IEC 60947-5-1 (control-circuit devices), plus the GB/T equivalents for the Chinese market. Fire resistance tested to 850 °C per IEC 60695-2-1, so it meets glow-wire requirements for household-appliance circuits (EN/IEC 60335-1 Clause 30.2 and 60335-2-40 Annex JJ). The TH protective treatment per IEC 60068-2-30 means it's verified for humid, tropical environments — pollution degree 3. Operates from -5 °C to 55 °C ambient, stores from -60 °C to 80 °C, and works up to 3000 m altitude without derating. The IP2X finger protection on the contactor body is standard for enclosed panels; the real sealing happens at the enclosure level.
Switching timing and mechanical robustness
Mechanical vibration tolerance is 1.5 Gn (open) and 3 Gn (closed) across 5–300 Hz, with shock ratings of 6 Gn (open) and 7 Gn (closed) for 11 ms. That's sufficient for most industrial machinery and conveyor systems.
