Schneider Electric LC1E80E7 — Contactors

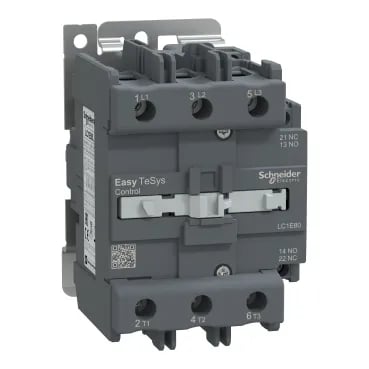

Schneider LC1E80E7 Easy TeSys Contactor, 80A AC-3, 48V Coil

MPNLC1E80E7
Active

Schneider Electric Easy TeSys Control, LC1E80E7, 3-pole contactor, 80 A AC-3 at ≤440 V, 48 V AC 50/60 Hz coil, DIN rail/plate mount.

StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

Identification

LC1E80E7 — Identification
ParameterValue
Product / component typeContactor
Series / rangeEasy TeSys
ApplicationMotor control Resistive load

Ratings & Performance

LC1E80E7 — Ratings & Performance
ParameterValue
Rated operational voltage (Ue)Power circuit: 10 MOhm for control circuit
Utilisation categoryAC-3 AC-3e AC-1

Contacts & Poles

LC1E80E7 — Contacts & Poles
ParameterValue
Pole configuration3P

Environmental

LC1E80E7 — Environmental
ParameterValue
IP degree of protectionIP2X conforming to IEC 60529
Operating altitude3000 m without derating
Mechanical robustnessVibrations contactor open (1.5 Gn, 5...300 Hz) Vibrations contactor closed (3 Gn, 5...300 Hz) Shocks contactor open (6 Gn for 11 ms) Shocks contactor closed (7 Gn for 11 ms)
Protective treatment / pollution degreeTH (pollution degree 3) conforming to IEC 60068-2-30
Fire resistance850 °C conforming to IEC 60695-2-1

Approvals

LC1E80E7 — Approvals
ParameterValue
StandardsEN/IEC 60947-1 EN/IEC 60947-4-1 EN/IEC 60947-5-1 GB/T 14048.1 GB/T 14048.4 GB/T 14048.5 EN/IEC 60335-1:Clause 30.2 EN/IEC 60335-2-40:Annex JJ

Mechanical

LC1E80E7 — Mechanical
ParameterValue
Width85 mm
Height127 mm
Depth121 mm

Product details

The LC1E80E7: It carries AC-3e and AC-1 utilisation categories too, so it's rated for both motor starts and resistive loads.

Mounts on DIN rail or plate — both are listed, so you can land it in a standard panel or bolt it to a backplate. Dimensions are 85 mm wide, 127 mm high, 121 mm deep, which fits the standard Easy TeSys footprint. The IP2X finger protection means it's safe to touch in an open panel, but it's not sealed against dust or water — keep it inside the enclosure.

Mechanical and environmental limits

The non-overlap time between NC and NO contacts is guaranteed at 1.5 ms on both energisation and de-energisation, which matters for interlocking circuits where you need to ensure break-before-make. Vibration resistance is 1.5 Gn open and 3 Gn closed, shock at 6 Gn open and 7 Gn closed — solid enough for most industrial environments.

Frequently asked questions

What are the key ratings for the LC1E80E7?

It is a 3-pole contactor rated 80 A in AC-3 duty at ≤440 V, with a 48 V AC 50/60 Hz coil. It also covers AC-3e and AC-1 categories, and mounts on DIN rail or plate.

What standards does the LC1E80E7 comply with?

It complies with EN/IEC 60947-1, 60947-4-1, 60947-5-1, and the Chinese GB/T equivalents 14048.1, 14048.4, and 14048.5. It also meets glow-wire test at 850 °C per IEC 60695-2-1.

What is the mechanical robustness of this contactor?

It withstands vibration at 1.5 Gn open and 3 Gn closed, and shock at 6 Gn open and 7 Gn closed, over the 5-300 Hz range.
