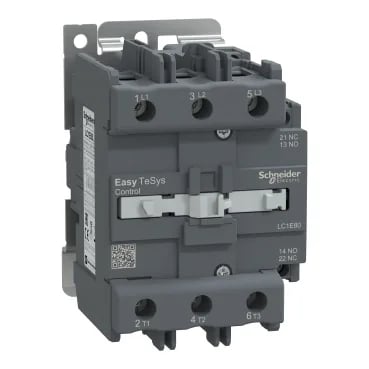

The Schneider Electric LC1E80F7 is a three-pole contactor from the Easy TeSys Control range, rated 80 A in AC-3 and AC-3e utilisation categories at ≤440 V, with a 110 V AC 50/60 Hz coil.
The 85 mm width and 127 mm height are the usual three-pole contactor footprint — check the 121 mm depth for enclosure depth clearance, especially on shallow backplates. The IP2X degree of protection means the contactor body resists finger ingress, but it is not sealed against dust or moisture — fit it inside an enclosure rated for the environment.
AC-3e is the same duty but with enhanced electrical endurance for frequent cycling. The non-overlap time of 1.5 ms on both energisation and de-energisation between NC and NO contacts guarantees that the normally-closed and normally-open poles never close simultaneously — important for interlocking reversing starters or bypass circuits where overlap would short the supply. The TH protective treatment (pollution degree 3 per IEC 60068-2-30) means it handles humid, mildly corrosive atmospheres — typical for industrial control rooms but not for direct washdown.
