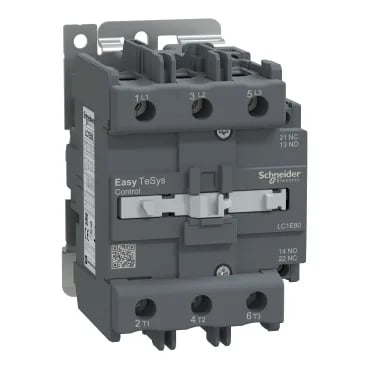

The LC1E80P7 is a 3-pole contactor from Schneider Electric's Easy TeSys Control range, rated 80 A in AC-3 utilisation category at ≤440 V, with a 230 V AC coil. AC-3 is the standard duty for squirrel-cage motor starting — the 80 A figure means it handles motor loads up to roughly 37 kW at 400 V three-phase, depending on the exact motor FLA. It also carries an AC-1 rating for resistive loads, where the thermal current capacity is higher, and an AC-3e rating for energy-efficient motors with higher inrush.
Mounts on either a plate or a 35 mm DIN rail, which covers the two common panel-building approaches. Dimensions are 85 mm wide, 127 mm high, 121 mm deep — fits standard enclosure backplates without surprises. That matters when the contactor is used in a reversing or star-delta starter where a NC auxiliary must break before the NO power contacts close — 1.5 ms is tight enough to prevent a phase-to-phase short during transition.
IP2X finger protection on the contactor body.
This is an active, current-production part. No phase-out or last-time-buy notice applies. The Easy TeSys Control range is Schneider's economy contactor line — widely stocked and interchangeable with the broader TeSys range for panel builds.
