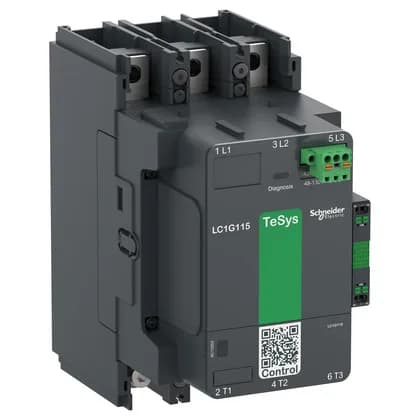

Schneider Electric LC1G115EHEN

Schneider Electric LC1G115EHEN Contactor, 115 A, 48-130 V Co

MPNLC1G115EHEN
Active

Schneider Electric TeSys Giga LC1G115EHEN, 3-pole contactor, 115 A, coil 48–130 V AC/DC, motor power 55 kW at 400 V AC-3e.

$175.26Ref. price · indicative, final on quote
Schneider Electric LC1G115EHEN datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

LC1G115EHEN key specifications
ParameterValue
Range of productTeSys Giga
Product or component typeContactor
Coil voltage48...130 V AC 50/60 Hz 48...130 V DC
Voltage1000 V
Control circuit voltage limitsOperational: 0.8 Uc Min...1.1 Uc Max (at Drop-out: 0.1 Uc Max...0.45 Uc Min (at <140 °F (60 °C))
[Ue] rated operational voltage<= 460 V DC
[Uimp] rated impulse withstand voltage8 kV
[Icw] rated short-time withstand current1.1 kA - 10 s 0.64 kA - 30 s 0.52 kA - 1 min 0.4 kA - 3 min 0.32 kA - 10 min
Breaking capacity1040 A at 440 V
[Ie] rated operational current250 A (at 115 A (at <140 °F (60 °C)) at <= 440 V AC-3
[Ith] conventional free air thermal current250 A (at 104 °F (40 °C))
Motor power30 kW at 230 V AC 50/60 Hz (AC-3e) 55 kW at 400 V AC 50/60 Hz (AC-3e) 55 kW at 415 V AC 50/60 Hz (AC-3e) 75 kW at 440 V AC 50/60 Hz (AC-3e) 75 kW at 500 V AC 50/60 Hz (AC-3e) 75 kW at 690 V AC 50/60 Hz (AC-3e) 30 kW at 230 V AC 50/60 Hz (AC-3) 55 kW at 400 V AC 50/60 Hz (AC-3) 55 kW at 415 V AC 50/60 Hz (AC-3) 75 kW at 440 V AC 50/60 Hz (AC-3) 75 kW at 500 V AC 50/60 Hz (AC-3) 75 kW at 690 V AC 50/60 Hz (AC-3) 30 kW at 230 V AC 50/60 Hz (AC-4) 55 kW at 400 V AC 50/60 Hz (AC-4) 55 kW at 415 V AC 50/60 Hz (AC-4) 65 kW at 440 V AC 50/60 Hz (AC-4) 65 kW at 500 V AC 50/60 Hz (AC-4) 75 kW at 690 V AC 50/60 Hz (AC-4)

All specifications

LC1G115EHEN additional specifications
ParameterValue
Inrush power in445 W
Maximum horse power rating30 hp at 200/208 V 60 Hz 40 hp at 230/240 V 60 Hz 75 hp at 460/480 V 60 Hz 100 hp at 575/600 V 60 Hz
Power dissipation per pole10 W AC-1 - Ith 250 A 3 W AC-3 - Ith 115 A
Inrush power in VA (50/60 hz, AC)640 VA
Hold-in power consumption in7.8 W
Poles description3P
Pole contact composition3 NO
Utilisation categoryAC-1 AC-3 AC-3e AC-4 AC-5a AC-5b AC-6a AC-6b AC-8b AC-8a DC-1 DC-3 DC-5
IP degree of protectionIP2X front face with shrouds IEC 60529 IP2X front face with shrouds VDE 0106
Mounting supportPlate
Connection pitch1.4 in (35 mm)
Connections - terminalsPower circuit: bar 2 - busbar cross section: 25 x 6 mm Power circuit: lugs-ring terminals 1 0.3 in² (185 mm²) Power circuit: bolted connection Control circuit: push-in 1 0.0003...0.004 in² (0.2...2.5 mm²) - cable stiffness: solid stranded without cable end Control circuit: push-in 1 0.0004...0.004 in² (0.25...2.5 mm²) - cable stiffness: flexible with cable end Control circuit: push-in 2 0.0008...0.002 in² (0.5...1.0 mm²) with cable end Control circuit: push-in 0.001...0.004 in² (0.75...2.5 mm²) - cable stiffness: solid stranded without cable end Control circuit: push-in 0.001...0.004 in² (0.75...2.5 mm²) - cable stiffness: flexible with cable end
ColorDark grey
Depth7.6 in (193 mm)
Width4.3 in (108 mm)
Height7.6 in (193 mm)
Mechanical durability8 Mcycles
StandardsEN/IEC 60947-4-1 EN/IEC 60947-5-1 UL 60947-4-1 CSA C22.2 No 60947-4-1 JIS C8201-4-1 JIS C8201-5-1 IEC 60335-1:Clause 30.2 IEC 60335-2-40:Annex JJ UL 60335-1 UL 60335-2-40:Annex JJ
RangeTeSys
CategoryUS10I1222329
Operating time40...70 ms closing 15...50 ms opening
Coil technologyBuilt-in bidirectional peak limiting
Average impedance0.00018 Ohm
Device short nameLC1G
Tightening torque159.3 lbf.in (18 N.m)
Compatibility codeLC1G
Overvoltage categoryIII
Protective treatmentTH
Contactor applicationPower switching Motor control
Mechanical robustnessVibrations 5...300 Hz 2 gn contactor open Vibrations 5...300 Hz 4 gn contactor closed Shocks 10 gn 11 ms contactor open Shocks 15 gn 11 ms contactor closed
Associated fuse rating125 A aM at 125 A aM at 315 A gG at 300 A UL Type J at <= 600 V
Maximum operating rate600 cyc/h AC-3 600 cyc/h AC-3e 300 cyc/h AC-1 150 cyc/h AC-4
Safety reliability levelB10d = 400000 cycles contactor with nominal load EN/ISO 13849-1 B10d = 3000000 cycles contactor with mechanical load EN/ISO 13849-1
Irms rated making capacity1560 A at 440 V
Auxiliary contact composition1 NO + 1 NC
Ambient air temperature for storage-76...176 °F (-60...80 °C)
Ambient air temperature for operation-13...140 °F (-25...60 °C)
Permissible ambient air temperature around the device-40...158 °F (-40...70 °C) at Uc

Product details

Schneider LC1G115EHEN TeSys Giga 3-pole contactor with coil rated 48–130 V AC/DC. Motor switching: 55 kW at 400 V AC-3e, 8 Mcycles mechanical life, built-in peak-limiting coil.

Motor duty and contactor endurance

Motor switching ratings: 55 kW at 400 V AC-3e, 75 kW at 690 V. Mechanical durability 8 Mcycles, max operating rate 600 cycles/h in AC-3e. Built-in coil suppression eliminates external suppressor.

Terminal and mounting detail

Power connections are bolted: bar cross-section up to 25x6 mm or ring lugs up to 185 mm². Tightening torque 18 N·m on the power terminals—mark that on the panel drawing. Mount fits a plate, pitch 35 mm. IP2X front face with shrouds keeps accidental contact out.

Frequently asked questions

What control circuit voltage does this contactor accept?

The coil is rated for 48–130 V AC at 50/60 Hz and 48–130 V DC. This single coil covers a broad range of control voltages, typically eliminating the need multiple coil variants.

What compliance documentation is available for this contactor?

The part carries UL 60947-4-1, CSA C22.2 No 60947-4-1, and EN/IEC 60947-4-1 certifications. Schneider Electric provides RoHS and REACH declarations as standard documentation with each shipment.

What is the mechanical durability rating?

8 million cycles mechanical. That figure supports high-cycle automation lines without premature wear-out.
