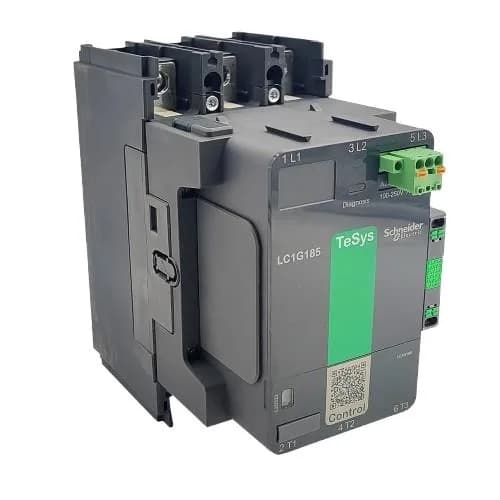

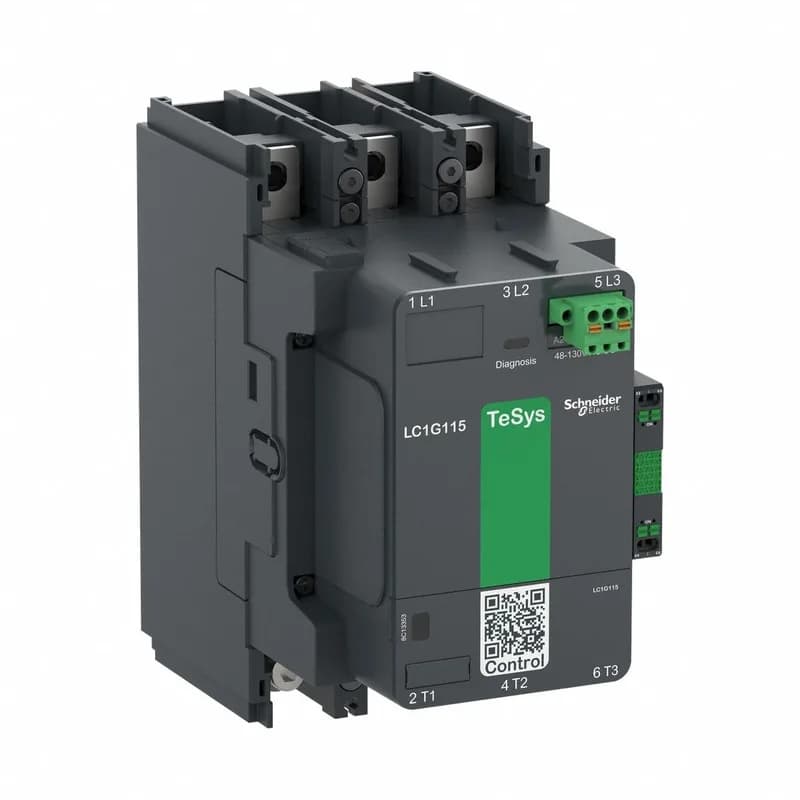

Schneider Electric LC1G185EHEN

Schneider Electric LC1G185EHEN TeSys Giga Contactor, 3P, 48-

MPNLC1G185EHEN
Active

Schneider Electric TeSys Giga LC1G185EHEN, 3-pole contactor, 48–130 V AC/DC coil, AC-3e motor power 110 kW at 690 V.

$246.38Ref. price · indicative, final on quote
Schneider Electric LC1G185EHEN datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

LC1G185EHEN key specifications
ParameterValue
Range of productTeSys Giga
Product or component typeContactor
Coil voltage48...130 V AC 50/60 Hz 48...130 V DC
Voltage1000 V
Control circuit voltage limitsOperational: 0.8 Uc Min...1.1 Uc Max (at Drop-out: 0.1 Uc Max...0.45 Uc Min (at <140 °F (60 °C))
[Ue] rated operational voltage<= 460 V DC
[Uimp] rated impulse withstand voltage8 kV
[Icw] rated short-time withstand current1.5 kA - 10 s 0.92 kA - 30 s 0.74 kA - 1 min 0.5 kA - 3 min 0.4 kA - 10 min
Breaking capacity1610 A at 440 V
[Ie] rated operational current305 A (at 185 A (at <140 °F (60 °C)) at <= 440 V AC-3
[Ith] conventional free air thermal current305 A (at 104 °F (40 °C))
Motor power55 kW at 230 V AC 50/60 Hz (AC-3e) 90 kW at 400 V AC 50/60 Hz (AC-3e) 90 kW at 415 V AC 50/60 Hz (AC-3e) 110 kW at 440 V AC 50/60 Hz (AC-3e) 110 kW at 500 V AC 50/60 Hz (AC-3e) 110 kW at 690 V AC 50/60 Hz (AC-3e) 75 kW at 1000 V AC 50/60 Hz (AC-3e) 55 kW at 230 V AC 50/60 Hz (AC-3) 90 kW at 400 V AC 50/60 Hz (AC-3) 90 kW at 415 V AC 50/60 Hz (AC-3) 110 kW at 440 V AC 50/60 Hz (AC-3) 110 kW at 500 V AC 50/60 Hz (AC-3) 110 kW at 690 V AC 50/60 Hz (AC-3) 75 kW at 1000 V AC 50/60 Hz (AC-3) 55 kW at 230 V AC 50/60 Hz (AC-4) 90 kW at 400 V AC 50/60 Hz (AC-4) 90 kW at 415 V AC 50/60 Hz (AC-4) 100 kW at 440 V AC 50/60 Hz (AC-4) 110 kW at 500 V AC 50/60 Hz (AC-4) 110 kW at 690 V AC 50/60 Hz (AC-4) 75 kW at 1000 V AC 50/60 Hz (AC-4)

All specifications

LC1G185EHEN additional specifications
ParameterValue
Inrush power in445 W
Maximum horse power rating50 hp at 200/208 V 60 Hz 60 hp at 230/240 V 60 Hz 125 hp at 460/480 V 60 Hz 150 hp at 575/600 V 60 Hz
Power dissipation per pole20 W AC-1 - Ith 305 A 6 W AC-3 - Ith 185 A
Inrush power in VA (50/60 hz, AC)640 VA
Hold-in power consumption in7.8 W
Poles description3P
Pole contact composition3 NO
Utilisation categoryAC-1 AC-3 AC-3e AC-4 AC-5a AC-5b AC-6a AC-6b AC-8b AC-8a DC-1 DC-3 DC-5
IP degree of protectionIP2X front face with shrouds IEC 60529 IP2X front face with shrouds VDE 0106
Mounting supportPlate
Connection pitch1.4 in (35 mm)
Connections - terminalsPower circuit: bar 2 - busbar cross section: 25 x 6 mm Power circuit: lugs-ring terminals 1 0.3 in² (185 mm²) Power circuit: bolted connection Control circuit: push-in 1 0.0003...0.004 in² (0.2...2.5 mm²) - cable stiffness: solid stranded without cable end Control circuit: push-in 1 0.0004...0.004 in² (0.25...2.5 mm²) - cable stiffness: flexible with cable end Control circuit: push-in 2 0.0008...0.002 in² (0.5...1.0 mm²) with cable end Control circuit: push-in 0.001...0.004 in² (0.75...2.5 mm²) - cable stiffness: solid stranded without cable end Control circuit: push-in 0.001...0.004 in² (0.75...2.5 mm²) - cable stiffness: flexible with cable end
ColorDark grey
Depth7.6 in (193 mm)
Width4.3 in (108 mm)
Height7.6 in (193 mm)
Mechanical durability8 Mcycles
StandardsEN/IEC 60947-4-1 EN/IEC 60947-5-1 UL 60947-4-1 CSA C22.2 No 60947-4-1 JIS C8201-4-1 JIS C8201-5-1 IEC 60335-1:Clause 30.2 IEC 60335-2-40:Annex JJ UL 60335-1 UL 60335-2-40:Annex JJ
RangeTeSys
CategoryUS10I1222329
Operating time40...70 ms closing 15...50 ms opening
Coil technologyBuilt-in bidirectional peak limiting
Average impedance0.00017 Ohm
Device short nameLC1G
Tightening torque159.3 lbf.in (18 N.m)
Compatibility codeLC1G
Overvoltage categoryIII
Protective treatmentTH
Contactor applicationPower switching Motor control
Mechanical robustnessVibrations 5...300 Hz 2 gn contactor open Vibrations 5...300 Hz 4 gn contactor closed Shocks 10 gn 11 ms contactor open Shocks 15 gn 11 ms contactor closed
Associated fuse rating200 A aM at 160 A aM at 315 A gG at 300 A UL Type J at <= 600 V
Maximum operating rate600 cyc/h AC-3 600 cyc/h AC-3e 300 cyc/h AC-1 150 cyc/h AC-4
Safety reliability levelB10d = 400000 cycles contactor with nominal load EN/ISO 13849-1 B10d = 3000000 cycles contactor with mechanical load EN/ISO 13849-1
Irms rated making capacity2310 A at 440 V
Auxiliary contact composition1 NO + 1 NC
Ambient air temperature for storage-76...176 °F (-60...80 °C)
Ambient air temperature for operation-13...140 °F (-25...60 °C)
Permissible ambient air temperature around the device-40...158 °F (-40...70 °C) at Uc

Product details

The LC1G185EHEN: The coil is 48–130 V AC/DC with built-in bidirectional peak limiting — no external varistor or RC snubber needed across the coil terminals. Holds in at 48 V, drops out cleanly below that threshold, and the integrated suppression keeps conducted noise off the control bus. Mechanical durability is 8 Mcycles, and the maximum operating rate hits 600 cyc/h in AC-3 or AC-3e duty. For resistive loads (AC-1) rate drops to 300 cyc/h; for severe plugging or inching (AC-4) it's 150 cyc/h. These numbers tell you the contactor will outlast most machinery if the duty cycle stays within those limits.

Mounting & Terminations

Power circuit connections accept bar (25 x 6 mm busbar), ring terminals up to 185 mm², or bolted lugs. Tightening torque is 159.3 lbf·in (18 N·m) — a ¾-inch crows-foot on a torque wrench is the usual tool. Mounting is on a flat plate, 4.3 in (108 mm) wide, 7.6 in (193 mm) deep, with a 1.4 in (35 mm) connection pitch between phases. The IP2X front face with shrouds meets IEC 60529 and VDE 0106, so accidental contact with live parts is blocked during panel access.

The coil voltage range (48–130 V) covers standard control voltages without a separate coil variant. Sourced to order; our supply chain supports quoted delivery timelines.

Frequently asked questions

What compliance documentation does this contactor carry?

It is certified to EN/IEC 60947-4-1, EN/IEC 60947-5-1, UL 60947-4-1, CSA C22.2 No 60947-4-1, JIS C8201-4-1 and C8201-5-1, plus IEC 60335-1 and IEC 60335-2-40 Annex JJ. UL and IEC marks are standard.
