Schneider Electric LC1G225KUEN

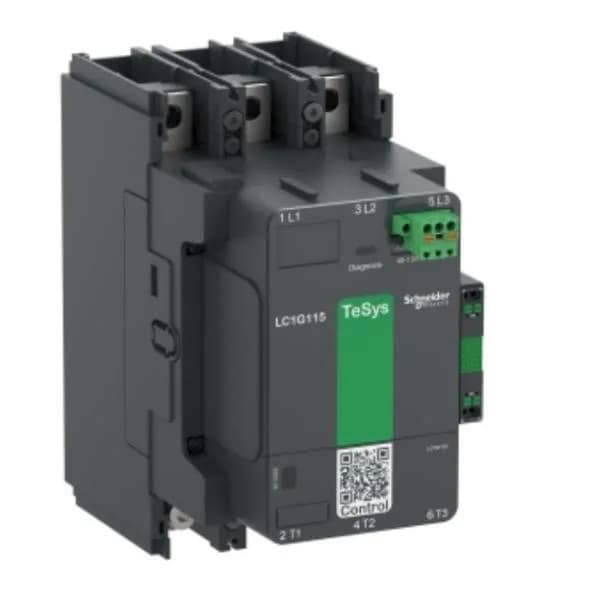

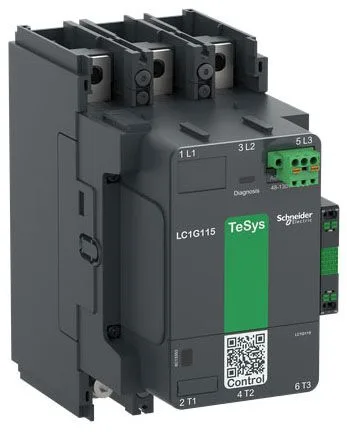

Schneider TeSys Giga LC1G225KUEN Contactor, 110 kW at 400 V

MPNLC1G225KUEN
Active

Schneider Electric TeSys Giga, Contactor, 3P, LC1G225KUEN, 110 kW at 400 V AC-3e, coil 100-250 V AC/DC, 8 Mcycles mechanical durability.

$318.77Ref. price · indicative, final on quote
Schneider Electric LC1G225KUEN datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

LC1G225KUEN key specifications
ParameterValue
Range of productTeSys Giga
Product or component typeContactor
Coil voltage100...250 V AC 50/60 Hz 100...250 V DC
Voltage1000 V
Control circuit voltage limitsOperational: 0.8 Uc Min...1.1 Uc Max (at Drop-out: 0.1 Uc Max...0.45 Uc Min (at <140 °F (60 °C))
[Ue] rated operational voltage<= 460 V DC
[Uimp] rated impulse withstand voltage8 kV
[Icw] rated short-time withstand current1.8 kA - 10 s 1.0 kA - 30 s 0.85 kA - 1 min 0.56 kA - 3 min 0.44 kA - 10 min
Breaking capacity2050 A at 440 V
[Ie] rated operational current330 A (at 225 A (at <140 °F (60 °C)) at <= 440 V AC-3
[Ith] conventional free air thermal current330 A (at 104 °F (40 °C))
Motor power55 kW at 230 V AC 50/60 Hz (AC-3e) 110 kW at 400 V AC 50/60 Hz (AC-3e) 110 kW at 415 V AC 50/60 Hz (AC-3e) 132 kW at 440 V AC 50/60 Hz (AC-3e) 132 kW at 500 V AC 50/60 Hz (AC-3e) 160 kW at 690 V AC 50/60 Hz (AC-3e) 132 kW at 1000 V AC 50/60 Hz (AC-3e) 55 kW at 230 V AC 50/60 Hz (AC-3) 110 kW at 400 V AC 50/60 Hz (AC-3) 110 kW at 415 V AC 50/60 Hz (AC-3) 132 kW at 440 V AC 50/60 Hz (AC-3) 132 kW at 500 V AC 50/60 Hz (AC-3) 160 kW at 690 V AC 50/60 Hz (AC-3) 132 kW at 1000 V AC 50/60 Hz (AC-3) 55 kW at 230 V AC 50/60 Hz (AC-4) 110 kW at 400 V AC 50/60 Hz (AC-4) 110 kW at 415 V AC 50/60 Hz (AC-4) 129 kW at 440 V AC 50/60 Hz (AC-4) 132 kW at 500 V AC 50/60 Hz (AC-4) 132 kW at 690 V AC 50/60 Hz (AC-4) 110 kW at 1000 V AC 50/60 Hz (AC-4)

All specifications

LC1G225KUEN additional specifications
ParameterValue
Inrush power in380 W
Maximum horse power rating60 hp at 200/208 V 60 Hz 75 hp at 230/240 V 60 Hz 150 hp at 460/480 V 60 Hz 150 hp at 575/600 V 60 Hz
Power dissipation per pole20 W AC-1 - Ith 330 A 8 W AC-3 - Ith 225 A
Inrush power in VA (50/60 hz, AC)540 VA
Hold-in power consumption in7.8 W
Poles description3P
Pole contact composition3 NO
Utilisation categoryAC-1 AC-3 AC-3e AC-4 AC-5a AC-5b AC-6a AC-6b AC-8a AC-8b DC-1 DC-3 DC-5
IP degree of protectionIP2X front face with shrouds IEC 60529 IP2X front face with shrouds VDE 0106
Mounting supportPlate
Connection pitch1.4 in (35 mm)
Connections - terminalsPower circuit: bar 2 - busbar cross section: 25 x 6 mm Power circuit: lugs-ring terminals 1 0.3 in² (185 mm²) Power circuit: bolted connection Control circuit: push-in 1 0.0003...0.004 in² (0.2...2.5 mm²) - cable stiffness: solid stranded without cable end Control circuit: push-in 1 0.0004...0.004 in² (0.25...2.5 mm²) - cable stiffness: flexible with cable end Control circuit: push-in 2 0.0008...0.002 in² (0.5...1.0 mm²) with cable end Control circuit: push-in 0.001...0.004 in² (0.75...2.5 mm²) - cable stiffness: solid stranded without cable end Control circuit: push-in 0.001...0.004 in² (0.75...2.5 mm²) - cable stiffness: flexible with cable end
ColorDark grey
Depth7.6 in (193 mm)
Width4.3 in (108 mm)
Height7.6 in (193 mm)
Mechanical durability8 Mcycles
StandardsEN/IEC 60947-4-1 EN/IEC 60947-5-1 UL 60947-4-1 CSA C22.2 No 60947-4-1 JIS C8201-4-1 JIS C8201-5-1 IEC 60335-1:Clause 30.2 IEC 60335-2-40:Annex JJ UL 60335-1 UL 60335-2-40:Annex JJ
RangeTeSys
CategoryUS10I1222329
Operating time40...70 ms closing 15...50 ms opening
Coil technologyBuilt-in bidirectional peak limiting
Average impedance0.00015 Ohm
Device short nameLC1G
Tightening torque159.3 lbf.in (18 N.m)
Compatibility codeLC1G
Overvoltage categoryIII
Protective treatmentTH
Contactor applicationPower switching Motor control
Mechanical robustnessVibrations 5...300 Hz 2 gn contactor open Vibrations 5...300 Hz 4 gn contactor closed Shocks 10 gn 11 ms contactor open Shocks 15 gn 11 ms contactor closed
Associated fuse rating250 A aM at 200 A aM at 400 A gG at 400 A UL Type J at <= 600 V
Maximum operating rate600 cyc/h AC-3 600 cyc/h AC-3e 300 cyc/h AC-1 150 cyc/h AC-4
Safety reliability levelB10d = 400000 cycles contactor with nominal load EN/ISO 13849-1 B10d = 3000000 cycles contactor with mechanical load EN/ISO 13849-1
Irms rated making capacity2720 A at 440 V
Auxiliary contact composition1 NO + 1 NC
Ambient air temperature for storage-76...176 °F (-60...80 °C)
Ambient air temperature for operation-13...140 °F (-25...60 °C)
Permissible ambient air temperature around the device-40...158 °F (-40...70 °C) at Uc

Product details

It switches 110 kW at 400 V AC-3e (motor duty) and covers up to 160 kW at 690 V in the same category. The coil is 100-250 V AC/DC with built-in bidirectional peak limiting — no external suppressor needed on the control circuit.

AC-3e is the motor-switching category with improved lifetime for modern energy-efficient motors. At 400 V, that 110 kW rating is the number you care about for a typical 400 V three-phase line. AC-1 resistive rating is higher (330 A thermally) but for motor loads AC-3 and AC-3e govern. The utilisation list also covers AC-4 (plugging/reversing) and DC loads, so this contactor handles mixed duty. Mechanical durability: 8 Mcycles. Operating rate: 600 cyc/h AC-3, 150 cyc/h AC-4. Average impedance: 0.00015 Ohm per pole; dissipation: 20 W per pole at 330 A AC-1.

Integration notes

Mounts on a plate (not DIN rail) — the 35 mm connection pitch is for the power terminals, not the mounting rail. Power connection is bolted or via ring lugs up to 185 mm². Control circuit uses push-in terminals for 0.2-2.5 mm² wire. Tightening torque for power is 18 N·m. The grey housing size: 193 mm deep, 108 mm wide, 193 mm tall. IP2X with shrouds on the front face. Overvoltage category III. Associated fuse recommendations: 250 A aM or 400 A gG at 400 V, or UL Type J at ≤600 V.

Frequently asked questions

What are the key ratings for motor control?

It switches 110 kW at 400 V AC-3e, 110 kW at 400 V AC-3, and up to 160 kW at 690 V AC-3e. The coil accepts 100-250 V AC or DC.

What compliance documentation does Schneider provide for this contactor?

It conforms to EN/IEC 60947-4-1, UL 60947-4-1, CSA C22.2 No 60947-4-1, and JIS C8201-4-1, among others. RoHS and REACH declarations are available from Schneider.

What colour is the LC1G225KUEN?

Dark grey housing.

What is the depth of this contactor?

193 mm (7.6 in).
