The LC1G500KUEN: This 3-pole contactor from the TeSys Giga range is rated for motor switching with AC-3e utilization up to 355 kW at 690 V. The coil accepts 100-250 V AC/DC, covering common control voltages in one unit. Mechanical durability is 8 Mcycles, and the break capacity is 4600 A at 440 V. On 460/480 V 60 Hz systems, it delivers 400 hp.

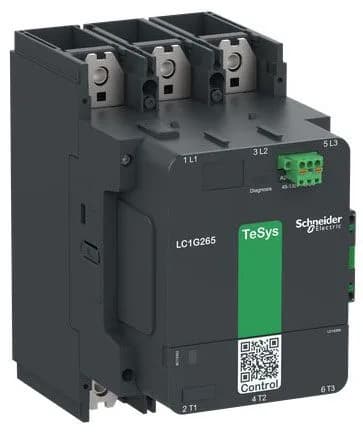

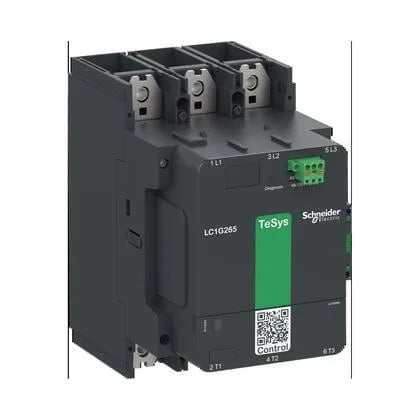

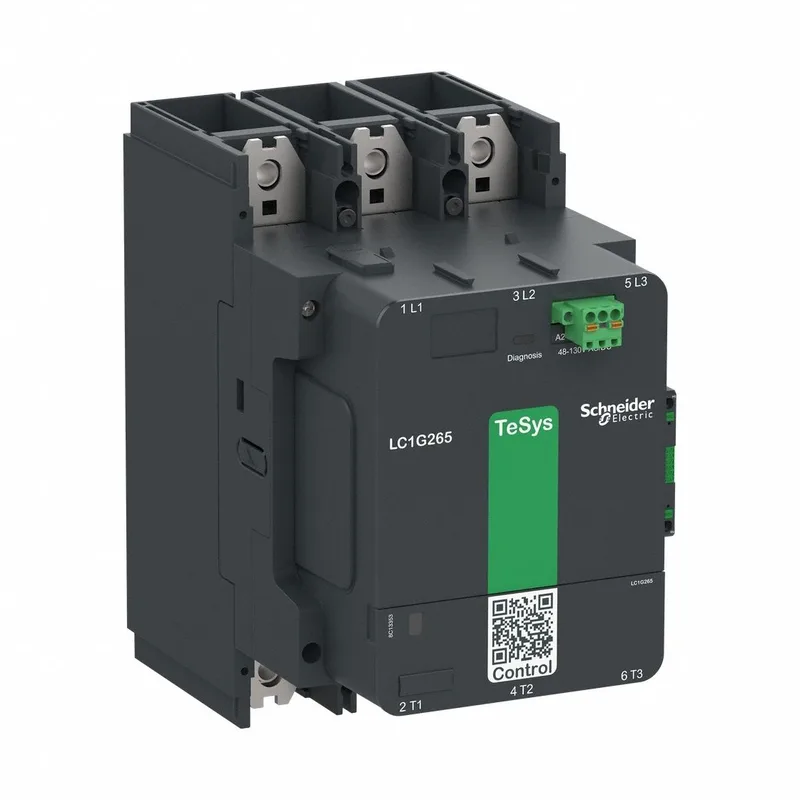

Schneider LC1G500KUEN TeSys Giga Contactor, 3P, 100-250V
MPNLC1G500KUEN
Active
Schneider TeSys Giga LC1G500KUEN, 3-pole power contactor, 100-250V AC/DC coil, 355 kW at 690V AC-3e.
$838.20Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Range of product | TeSys Giga |
| Product or component type | Contactor |
| Coil voltage | 100...250 V AC 50/60 Hz 100...250 V DC |
| Voltage | 1000 V |
| Control circuit voltage limits | Operational: 0.8 Uc Min...1.1 Uc Max (at Drop-out: 0.1 Uc Max...0.45 Uc Min (at <140 °F (60 °C)) |
| [Ue] rated operational voltage | <= 460 V DC |
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Icw] rated short-time withstand current | 4.0 kA - 10 s 2.8 kA - 30 s 2.2 kA - 1 min 1.5 kA - 3 min 1.2 kA - 10 min |
| Breaking capacity | 4600 A at 440 V |
| [Ie] rated operational current | 700 A (at 500 A (at <140 °F (60 °C)) at <= 440 V AC-3 |
| [Ith] conventional free air thermal current | 700 A (at 104 °F (40 °C)) |
| Motor power | 147 kW at 230 V AC 50/60 Hz (AC-3e) 250 kW at 400 V AC 50/60 Hz (AC-3e) 250 kW at 415 V AC 50/60 Hz (AC-3e) 280 kW at 440 V AC 50/60 Hz (AC-3e) 315 kW at 500 V AC 50/60 Hz (AC-3e) 355 kW at 690 V AC 50/60 Hz (AC-3e) 335 kW at 1000 V AC 50/60 Hz (AC-3e) 160 kW at 230 V AC 50/60 Hz (AC-3) 250 kW at 400 V AC 50/60 Hz (AC-3) 250 kW at 415 V AC 50/60 Hz (AC-3) 315 kW at 440 V AC 50/60 Hz (AC-3) 355 kW at 500 V AC 50/60 Hz (AC-3) 355 kW at 690 V AC 50/60 Hz (AC-3) 335 kW at 1000 V AC 50/60 Hz (AC-3) 150 kW at 230 V AC 50/60 Hz (AC-4) 250 kW at 400 V AC 50/60 Hz (AC-4) 250 kW at 415 V AC 50/60 Hz (AC-4) 295 kW at 440 V AC 50/60 Hz (AC-4) 295 kW at 500 V AC 50/60 Hz (AC-4) 355 kW at 690 V AC 50/60 Hz (AC-4) 280 kW at 1000 V AC 50/60 Hz (AC-4) |
All specifications
| Parameter | Value |
|---|---|
| Inrush power in | 660 W |
| Maximum horse power rating | 150 hp at 200/208 V 60 Hz 200 hp at 230/240 V 60 Hz 400 hp at 460/480 V 60 Hz 450 hp at 575/600 V 60 Hz |
| Power dissipation per pole | 40 W AC-1 - Ith 700 A 20 W AC-3 - Ith 500 A |
| Inrush power in VA (50/60 hz, AC) | 750 VA |
| Hold-in power consumption in | 9.3 W |
| Poles description | 3P |
| Pole contact composition | 3 NO |
| Utilisation category | AC-1 AC-3 AC-3e AC-4 AC-5a AC-5b AC-6a AC-6b AC-8a AC-8b DC-1 DC-3 DC-5 |
| IP degree of protection | IP2X front face with shrouds IEC 60529 IP2X front face with shrouds VDE 0106 |
| Mounting support | Plate |
| Connection pitch | 1.8 in (45 mm) |
| Connections - terminals | Power circuit: bar 2 - busbar cross section: 32 x 10 mm Power circuit: lugs-ring terminals 1 0.3 in² (185 mm²) Power circuit: bolted connection Control circuit: push-in 1 0.0003...0.004 in² (0.2...2.5 mm²) - cable stiffness: solid stranded without cable end Control circuit: push-in 1 0.0004...0.004 in² (0.25...2.5 mm²) - cable stiffness: flexible with cable end Control circuit: push-in 2 0.0008...0.002 in² (0.5...1.0 mm²) with cable end Control circuit: push-in 0.001...0.004 in² (0.75...2.5 mm²) - cable stiffness: solid stranded without cable end Control circuit: push-in 0.001...0.004 in² (0.75...2.5 mm²) - cable stiffness: flexible with cable end |
| Color | Dark grey |
| Depth | 8.9 in (226 mm) |
| Width | 5.5 in (140 mm) |
| Height | 8.9 in (225 mm) |
| Mechanical durability | 8 Mcycles |
| Standards | EN/IEC 60947-4-1 EN/IEC 60947-5-1 UL 60947-4-1 CSA C22.2 No 60947-4-1 JIS C8201-4-1 JIS C8201-5-1 IEC 60335-1:Clause 30.2 IEC 60335-2-40:Annex JJ UL 60335-1 UL 60335-2-40:Annex JJ |
| Range | TeSys |
| Category | US10I1222329 |
| Operating time | 40...70 ms closing 15...50 ms opening |
| Coil technology | Built-in bidirectional peak limiting |
| Average impedance | 0.00008 Ohm |
| Device short name | LC1G |
| Tightening torque | 309.8 lbf.in (35 N.m) |
| Compatibility code | LC1G |
| Overvoltage category | III |
| Protective treatment | TH |
| Contactor application | Power switching Motor control |
| Mechanical robustness | Vibrations 5...300 Hz 2 gn contactor open Vibrations 5...300 Hz 4 gn contactor closed Shocks 10 gn 11 ms contactor open Shocks 15 gn 11 ms contactor closed |
| Associated fuse rating | 500 A aM at 400 A aM at 800 A gG at 600 A UL Type L at <= 600 V |
| Maximum operating rate | 600 cyc/h AC-3 600 cyc/h AC-3e 300 cyc/h AC-1 150 cyc/h AC-4 |
| Safety reliability level | B10d = 400000 cycles contactor with nominal load EN/ISO 13849-1 B10d = 3000000 cycles contactor with mechanical load EN/ISO 13849-1 |
| Irms rated making capacity | 5090 A at 440 V |
| Auxiliary contact composition | 1 NO + 1 NC |
| Ambient air temperature for storage | -76...176 °F (-60...80 °C) |
| Ambient air temperature for operation | -13...140 °F (-25...60 °C) |
| Permissible ambient air temperature around the device | -40...158 °F (-40...70 °C) at Uc |
Product details
Frequently asked questions
What is LC1G500KUEN's listed color?
The color is dark grey.
What is LC1G500KUEN's listed depth?
Depth is 8.9 in (226 mm).
What compliance documentation does this brand provide for LC1G500KUEN?
Standards include EN/IEC 60947-4-1, UL 60947-4-1, CSA C22.2 No 60947-4-1, JIS C8201-4-1, IEC 60335-1, and UL 60335-2-40 Annex JJ.
