Schneider Electric LC1G6304LSEA

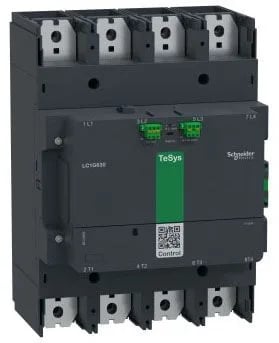

Schneider LC1G6304LSEA TeSys Giga 4-Pole Contactor, 630 A, 500 V Coil

MPNLC1G6304LSEA
Obsolete

Schneider LC1G6304LSEA Iec Contactors — now discontinued. Supplied from remaining channel stock; full specifications, lifecycle and same-series options are below.

Schneider Electric LC1G6304LSEA datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

LC1G6304LSEA key specifications
ParameterValue
Range of productTeSys Giga
Product or component typeContactor
Coil voltage200...500 V AC 50/60 Hz 200...500 V DC
Voltage1000 V
Control circuit voltage limitsOperational: 0.8 Uc Min...1.1 Uc Max (at Drop-out: 0.1 Uc Max...0.45 Uc Min (at <140 °F (60 °C))
[Ue] rated operational voltage<= 460 V DC
[Uimp] rated impulse withstand voltage8 kV
[Icw] rated short-time withstand current5.05 kA - 10 s 4.4 kA - 30 s 3.4 kA - 1 min 2.2 kA - 3 min 1.6 kA - 10 min
Breaking capacity5550 A at 440 V
[Ie] rated operational current630 A (at 1050 A (at <104 °F (40 °C)) at <= 1000 V AC-1
[Ith] conventional free air thermal current1050 A (at 104 °F (40 °C))
Inrush power in390 W

All specifications

LC1G6304LSEA additional specifications
ParameterValue
Power dissipation per pole70 W AC-1 - Ith 1050 A 26 W AC-3 - Ith 630 A
Inrush power in VA (50/60 hz, AC)670 VA
Hold-in power consumption in11.0 W
Poles description4P
Pole contact composition4 NO
Utilisation categoryAC-3 AC-3e AC-1 AC-5a AC-5b AC-6a AC-6b DC-1 DC-3 DC-5
IP degree of protectionIP2X front face with shrouds IEC 60529 IP2X front face with shrouds VDE 0106
Mounting supportPlate
Connection pitch2.8 in (70 mm)
Connections - terminalsPower circuit: bar 2 - busbar cross section: 52 x 20 mm Power circuit: lugs-ring terminals 1 0.3 in² (185 mm²) Power circuit: bolted connection Control circuit: push-in 1 0.0003...0.004 in² (0.2...2.5 mm²) - cable stiffness: solid stranded without cable end Control circuit: push-in 1 0.0004...0.004 in² (0.25...2.5 mm²) - cable stiffness: flexible with cable end Control circuit: push-in 2 0.0008...0.002 in² (0.5...1.0 mm²) with cable end Control circuit: push-in 0.001...0.004 in² (0.75...2.5 mm²) - cable stiffness: solid stranded without cable end Control circuit: push-in 0.001...0.004 in² (0.75...2.5 mm²) - cable stiffness: flexible with cable end
ColorDark grey
Depth10.5 in (266 mm)
Width11.06 in (281 mm)
Height15.3 in (388.5 mm)
Mechanical durability5 Mcycles
StandardsEN/IEC 60947-4-1 EN/IEC 60947-5-1 UL 60947-4-1 CSA C22.2 No 60947-4-1 JIS C8201-4-1 JIS C8201-5-1 UL 60335-1 UL 60335-2-40:Annex JJ
RangeTeSys
CategoryUS10I1222329
Operating time40...70 ms closing 15...50 ms opening
Coil technologyBuilt-in bidirectional peak limiting
Average impedance0.000065 Ohm
Device short nameLC1G
Tightening torque513.3 lbf.in (58 N.m)
Compatibility codeLC1G
Overvoltage categoryIII
Protective treatmentTH
Contactor applicationPower switching
Mechanical robustnessVibrations 5...300 Hz 2 gn contactor open Vibrations 5...300 Hz 4 gn contactor closed Shocks 10 gn 11 ms contactor open Shocks 15 gn 11 ms contactor closed
Associated fuse rating630 A aM at 500 A aM at 1250 A gG at 1000 A UL Type L at <= 600 V
Maximum operating rate600 cyc/h AC-3 600 cyc/h AC-3e 300 cyc/h AC-1
Safety reliability levelB10d = 100000 cycles contactor with nominal load EN/ISO 13849-1 B10d = 1800000 cycles contactor with mechanical load EN/ISO 13849-1
Irms rated making capacity7220 A at 440 V
Auxiliary contact composition1 NO + 1 NC
Ambient air temperature for storage-76...176 °F (-60...80 °C)
Ambient air temperature for operation-13...140 °F (-25...60 °C)
Permissible ambient air temperature around the device-40...158 °F (-40...70 °C) at Uc

Product details

Overview

The LC1G6304LSEA is a Schneider TeSys Giga 4-pole contactor rated for 630 A switching current and a 500 V coil. It is plate-mounted and carries an IP2X front face with shrouds. The contactor is certified to EN/IEC 60947-4-1, UL 60947-4-1, and CSA C22.2 No 60947-4-1 for North American installations.

Compared to the LC1G630EHEN, the LC1G6304LSEA uses a 500 V coil versus 130 V, and is rated for 630 A switching current versus 1050 A. Power consumption is 17 W versus 18.7 W. Select the LC1G6304LSEA when the control voltage is 500 V and the load current is 630 A or less. Versus the LC1G8004LSEA, the LC1G6304LSEA is rated for 630 A switching current versus 800 A. The LC1G8004LSEA uses spring-loaded terminals and a 60 Hz frequency rating. Choose the LC1G6304LSEA for 630 A loads where plate-mount and bolted connections are preferred.
