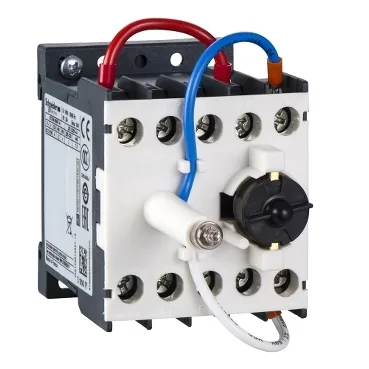

Schneider Electric TeSys K contactor, 3P, 1 NO auxiliary, 400 V AC coil, DOL starter LE1M135.
| Parameter | Value |
|---|---|
| Product / component type | Contactor |
| Series / range | TeSys |
| Application | Motor control |
| Parameter | Value |
|---|---|
| Utilisation category | AC-3 |
| Parameter | Value |
|---|---|
| Pole configuration | 3P |
| Parameter | Value |
|---|---|
| Operating altitude | 2000 m without derating |
| Parameter | Value |
|---|---|
| Depth | 57 mm |
| Parameter | Value |
|---|---|
| Device short name | LC1K |
| Pole contact composition | 3 NO |
| [Ie] rated operational current | 16 A (at 10 MOhm for signalling circuit |
| Ambient air temperature for storage | -50...80 °C |
It is designed for motor control duty under utilisation category AC-3, rated at 16 A operational current. The part also serves as the contactor element in a DOL starter assembly LE1M135.
The AC-3 rating at 16 A means this contactor is sized for switching a three-phase induction motor under full-load running conditions — the typical duty for starting and stopping a motor during normal operation. Depth of 57 mm fits standard DIN-rail enclosures without crowding adjacent devices.
No official successor order code is listed in the manufacturer's lifecycle record. For a drop-in replacement, you would need to cross-reference the coil voltage (400 V AC), pole configuration (3P, 3 NO), and AC-3 current rating (16 A) against current TeSys K or TeSys D series contactors. The closest functional match would be a currently-produced TeSys K contactor with the same coil and pole count.
The listed depth is 57 mm.
It belongs to the Schneider Electric TeSys range, specifically the TeSys K series of compact contactors.
