Schneider Electric LC2D40A3U7
MPNLC2D40A3U7
Obsolete

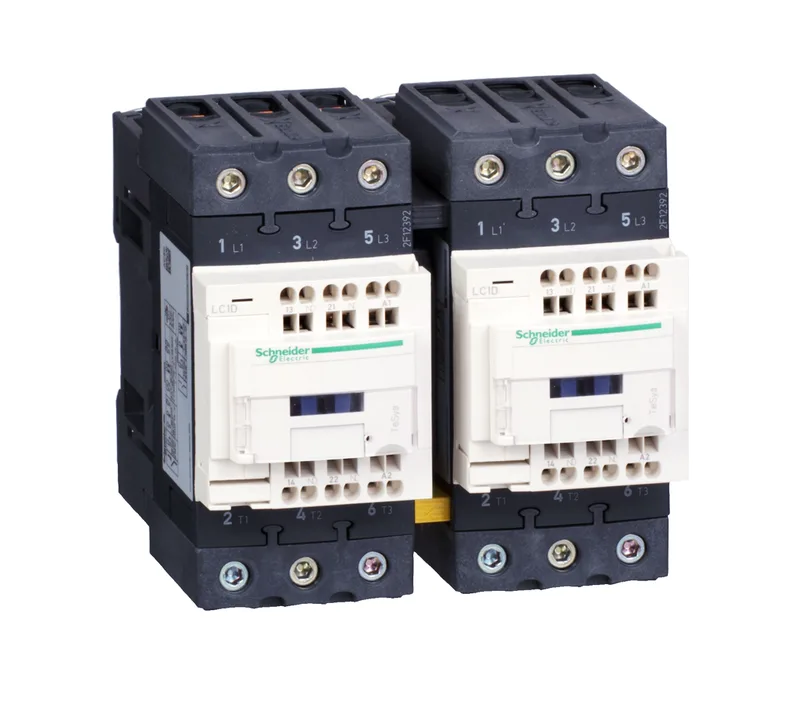

Reversing contactor, TeSys Deca, 3P(3 NO), AC-3, 0 to 440V, 40A, 240VAC coil
$263.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Identification
| Parameter | Value |
|---|---|
| Product / component type | Reversing contactor |
| Series / range | TeSys TeSys Deca |
| Application | Resistive load Motor control |
Ratings & Performance
| Parameter | Value |
|---|---|
| Rated operational voltage (Ue) | Power circuit Power circuit 10 MOhm for signalling circuit |
| Utilisation category | AC-1 AC-3 |
Contacts & Poles
| Parameter | Value |
|---|---|
| Pole configuration | 3P |
Environmental
| Parameter | Value |
|---|---|
| IP degree of protection | IP20 front face IEC 60529 |
| Operating altitude | 0...9842.52 ft (0...3000 m) |
| Mechanical robustness | Vibrations contactor open2 Gn, 5...300 Hz Vibrations contactor closed4 Gn, 5...300 Hz Shocks contactor open10 Gn for 11 ms Shocks contactor closed15 Gn for 11 ms |
| Protective treatment / pollution degree | TH IEC 60068-2-30 |
| Fire resistance | 1562 °F (850 °C) IEC 60695-2-1 |
| Flame retardance | V1 conforming to UL 94 |
Mechanical
| Parameter | Value |
|---|---|
| Width | 4.7 in (119 mm) |
| Height | 4.8 in (122 mm) |
| Depth | 4.7 in (120 mm) |
MPN
LC2D40A3U7
