Schneider Electric LC2K09013P7 — Contactors

Schneider LC2K09013P7 TeSys K Reversing Contactor, 9A AC-3,

MPNLC2K09013P7
Obsolete

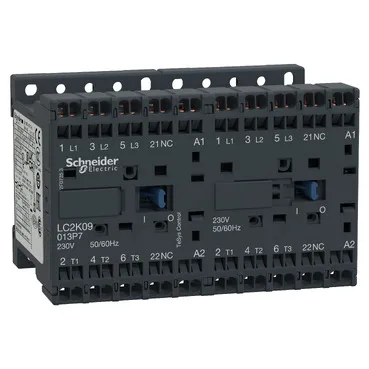

Schneider Electric TeSys K reversing contactor, LC2K09013P7, 3P, 9A AC-3/AC-3e at 440V, 230V AC coil, 1NC auxiliary, preassembled with reversing power busbar.

Schneider Electric LC2K09013P7 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

LC2K09013P7 — Identification
ParameterValue
Product / component typeReversing contactor
Series / rangeTeSys
ApplicationMotor control Resistive load
LC2K09013P7 — Ratings & Performance
ParameterValue
Rated operational voltage (Ue)Power circuit: 690 V AC 50/60 Hz Signalling circuit: 10 MOhm for signalling circuit
Utilisation categoryAC-1 AC-4 AC-3 AC-3e
LC2K09013P7 — Contacts & Poles
ParameterValue
Pole configuration3P
LC2K09013P7 — Environmental
ParameterValue
IP degree of protectionIP20 conforming to VDE 0106
Operating altitude2000 m without derating
Mechanical robustnessShocks contactor closed, on X axis: 10 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor closed, on Y axis: 15 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor closed, on Z axis: 15 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor opened, on X axis: 6 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor opened, on Y axis: 10 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor opened, on Z axis: 10 Gn for 11 ms conforming to IEC 60068-2-27 Vibrations contactor closed: 4 Gn, 5...300 Hz conforming to IEC 60068-2-6 Vibrations contactor opened: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6
Protective treatment / pollution degreeTC conforming to IEC 60068 TC conforming to DIN 50016
Flame retardanceV1 conforming to UL 94 Requirement 2 conforming to NF F 16-101 Requirement 2 conforming to NF F 16-102
LC2K09013P7 — Mechanical
ParameterValue
Width90 mm
Height58 mm
Depth57 mm

Product details

The 230 V AC coil and 1 NC auxiliary contact are built in.

Schneider has marked this part obsolete. The TeSys K family is long-established, so cross-referencing a current TeSys Deca or TeSys D reversing contactor may be possible, but pin-to-pin compatibility and mounting footprint must be validated against the panel layout.

IP20 finger-safe protection means it can live in an open control cabinet without additional shrouding. The reversing busbar is preassembled, which saves wiring time during panel build but also locks the pole arrangement — verify the busbar orientation matches your upstream contactor and downstream overload relay.

Flame retardance meets V1 per UL 94 and NF F 16-101/102, relevant for rail or transport applications where fire-smoke-toxicity requirements apply. Operating altitude is 2000 m without derating. The contactor handles shock up to 15 Gn on Y/Z axes when closed and vibration up to 4 Gn at 5–300 Hz — robust enough for machine-mounted panels near rotating equipment.

Frequently asked questions

What is the closest alternative to LC2K09013P7?

No official successor is listed in the record. A current TeSys Deca or TeSys D reversing contactor may be functionally similar, but pin-to-pin compatibility and mounting dimensions must be verified against your panel layout.

What are the key ratings of LC2K09013P7?

It is a 3-pole reversing contactor rated 9 A in AC-3/AC-3e at 440 V, with a 230 V AC coil and one NC auxiliary contact. It is preassembled with a reversing power busbar.

How do I source this obsolete part?

We can quote it to order against an RFQ through surplus or broker channels. No lead-time or stock figure is available on this listing.
