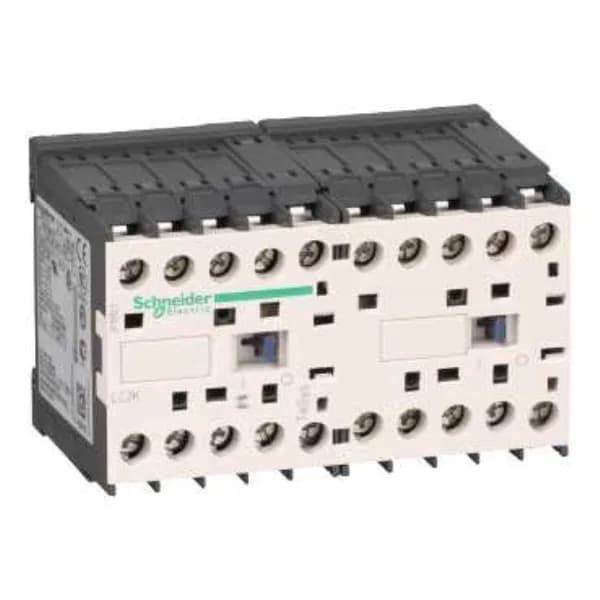

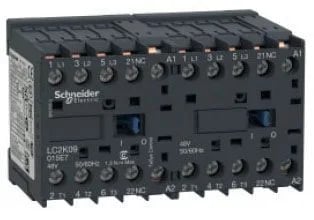

The LC2K09015E7 is a TeSys K reversing contactor from Schneider Electric, rated for motor control in AC-3 and AC-4 duty, with a 690 V AC rated operational voltage. Physical footprint is compact: 90 mm wide, 58 mm tall, 57 mm deep — fits shallow enclosures or tight DIN-rail rows.
Three normally open power poles, IP20 finger-safe front, V1 flame retardance per UL 94. Operating temperature range -25°C to 50°C, storage -50°C to 80°C. Mechanical shock tested to 15 Gn on Y and Z axes (closed contactor); vibration endurance at 4 Gn, 5-300 Hz. Suitable for high-vibration environments like conveyors or pumps.
