Schneider Electric LC2K0901 Series

51 variants · Schneider Electric

About the Schneider Electric LC2K0901 Series

The Schneider Electric LC2K0901 Series series groups 51 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common depth of 2.2 in (57 mm), height of 2.3 in (58 mm) and IP rating of IP20. Variants differ by application and utilization category, so you can match the exact application your application requires using the selection guide below.

Select a variant by

Application: Resistive load Motor control · Resistive load, Motor control
Utilization category: AC-1 AC-3 AC-4 AC-3e · AC-3 AC-3e AC-4 AC-1 · AC-4 AC-1 AC-3 AC-3e

Shared specifications

Depth: 2.2 in (57 mm)
Height: 2.3 in (58 mm)
IP rating: IP20

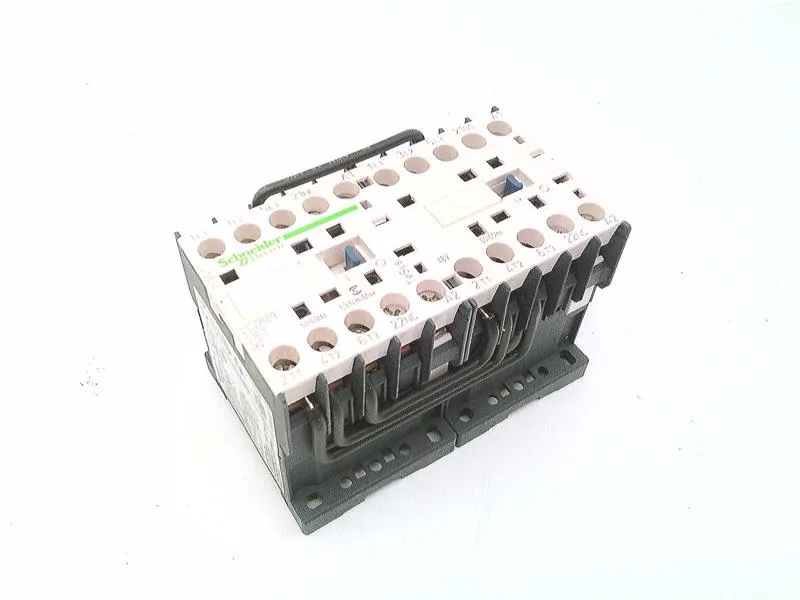

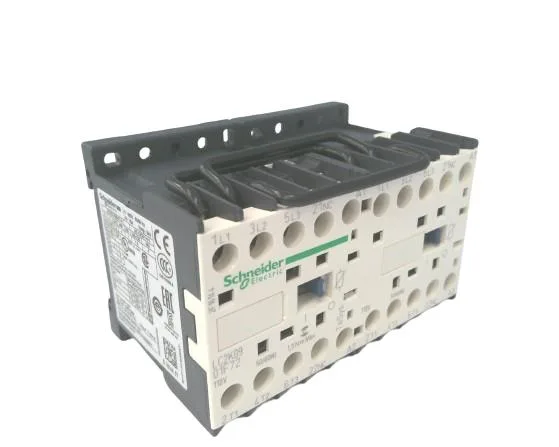

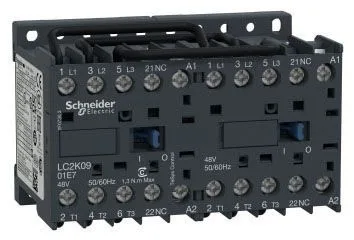

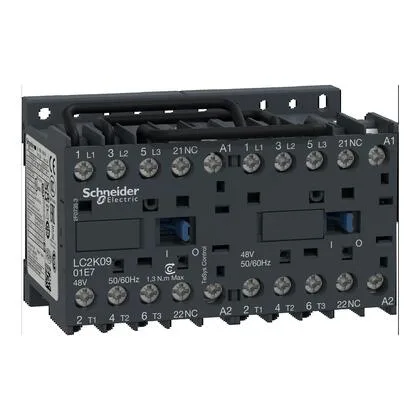

Main product or component type: Reversing contactor
Operating temperature: -13...122 °F (-25...50 °C)
Storage temperature: -58...176 °F (-50...80 °C)
Temp operating max: 50 °C
Temp operating min: -25 °C
Temp storage max: 80 °C
Temp storage min: -50 °C
Width: 3.5 in (90 mm)

Variant comparison

Parameter	LC2K0901U7	LC2K0901F72	LC2K09015E7	LC2K0901E7	LC2K0901B7	LC2K0901G7
Application	Resistive load Motor control	Resistive load, Motor control	Resistive load, Motor control	Resistive load, Motor control	Resistive load, Motor control	Resistive load Motor control
Utilization category	AC-3 AC-3e AC-4 AC-1	AC-3 AC-3e AC-4 AC-1	AC-4 AC-1 AC-3 AC-3e	AC-3 AC-3e AC-4 AC-1	AC-3 AC-3e AC-4 AC-1	AC-1 AC-3 AC-4 AC-3e

Request a quote on any Schneider Electric LC2K0901 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
