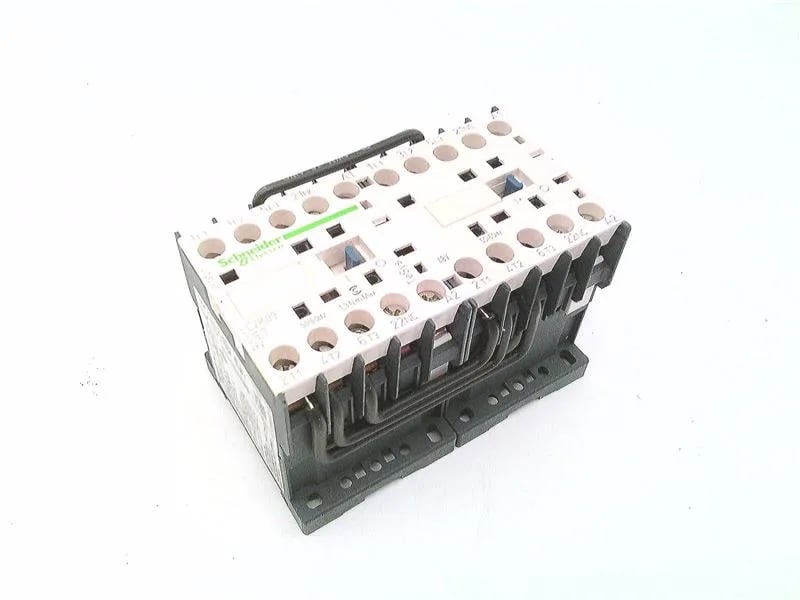

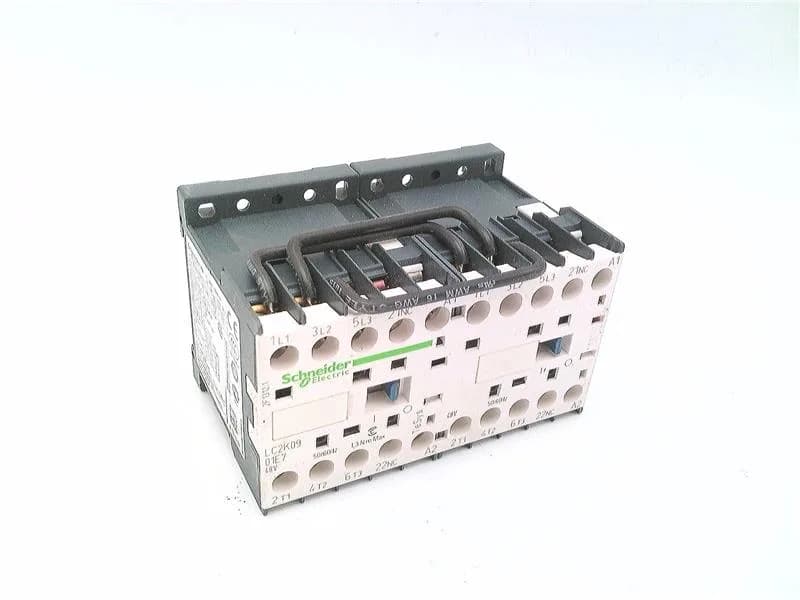

Schneider Electric LC2K0901E7

LC2K0901E7 Reversing Contactor, TeSys K, 9 A AC-3, Active

MPNLC2K0901E7
Active

Schneider Electric TeSys K reversing contactor, LC2K0901E7, 3-pole, 9 A AC-3, 575 VAC, IP20, active production.

$36.83Ref. price · indicative, final on quote
Schneider Electric LC2K0901E7 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

LC2K0901E7 key specifications
ParameterValue
Product or component typeReversing contactor
[Ue] rated operational voltagePower circuit 690 V AC 50/60 Hz Signalling circuit 10 MOhm for signalling circuit
Power pole contact composition3 NO
Poles description3P
Utilisation categoryAC-3 AC-3e AC-4 AC-1
IP degree of protectionIP20 VDE 0106
Operating altitude6561.68 ft (2000 m) without derating
Depth2.2 in (57 mm)
Width3.5 in (90 mm)
Height2.3 in (58 mm)
RangeTeSys
CategoryUS10I1222327

All specifications

LC2K0901E7 additional specifications
ParameterValue
Flame retardanceV1 conforming to UL 94 Requirement 2 conforming to NF F 16-101 Requirement 2 conforming to NF F 16-102
Device short nameLC2K
Device applicationControl
Device presentationPreassembled with reversing power busbar
Protective treatmentTC IEC 60068 TC DIN 50016
Contactor applicationMotor control Resistive load
Mechanical robustnessShocks contactor closed, on X axis10 Gn for 11 ms IEC 60068-2-27 Shocks contactor closed, on Y axis15 Gn for 11 ms IEC 60068-2-27 Shocks contactor closed, on Z axis15 Gn for 11 ms IEC 60068-2-27 Shocks contactor opened, on X axis6 Gn for 11 ms IEC 60068-2-27 Shocks contactor opened, on Y axis10 Gn for 11 ms IEC 60068-2-27 Shocks contactor opened, on Z axis10 Gn for 11 ms IEC 60068-2-27 Vibrations contactor closed4 Gn, 5...300 Hz IEC 60068-2-6 Vibrations contactor opened2 Gn, 5...300 Hz IEC 60068-2-6
Ambient air temperature for storage-58...176 °F (-50...80 °C)
Ambient air temperature for operation-13...122 °F (-25...50 °C)

Product details

What you need to know for a BOM line

The three normally open poles switch motors in both directions using one compact unit. Rated 9 A in AC-3 duty at 575 VAC — that's the motor-contacting current for a reversing start. Also covers AC-1 resistive loads up to its rated range, plus AC-3e and AC-4 for plugging/inching profiles. Dimensions 90 mm wide, 57 mm deep, 58 mm tall; operating range -25 to 50 °C, storage -50 to 80 °C; no derating needed up to 2000 m altitude.

Mechanical surroundings and protection

IP20 finger-safe when installed in a panel (VDE 0106). Flame retardance V1 per UL 94 and NF F 16-101/102 requirements — important for rail or public-transit specs. Vibration tested to 4 G closed, 2 G open; shock rated up to 15 G closed on Y/Z axis.

Frequently asked questions

What is the utilisation category and motor load rating?

Rated 9 A in AC-3 for standard motor switching, plus AC-3e, AC-4, and AC-1 for other load types. Power circuit voltage is 690 V AC 50/60 Hz.

What are the panel-fit dimensions?

Width 90 mm, depth 57 mm, height 58 mm. Compact enough for a reversing starter on a standard mounting plate.

What is the ambient operating range?

Operates from -25 to 50 °C, stores at -50 to 80 °C. No derating required below 2000 m altitude.
