Overview

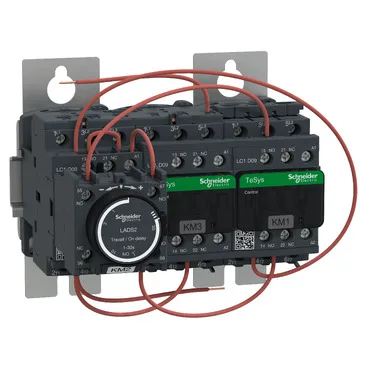

The LC3D09AP7 is a Schneider TeSys Deca star-delta starter, order code LC3D09AP7, rated 9 A in AC-3 utilization category with 3 poles and a 3 x 3 NO power contact configuration. It is pre-wired with a 230 VAC 50/60 Hz coil, screw-clamp terminals, and IP20 finger-safe enclosure for panel mounting.
Function & operation
As a star-delta starter, the LC3D09AP7 integrates three contactors in a pre-wired assembly that reduces inrush current during motor start by first connecting the motor windings in star configuration, then transitioning to delta for full-voltage run. The 9 A AC-3 rating defines the maximum switched current for starting squirrel-cage motors — AC-3 covers starting and plugging, not continuous resistive load. The 230 VAC 50/60 Hz coil is built for standard European control voltages; the pre-wired package saves panel wiring time. Mechanical robustness is specified for vibration: 2 Gn contactor open, 4 Gn closed over 5–300 Hz, and shock: 10 Gn open, 15 Gn closed for 11 ms. The V1 flammability rating per UL 94 and TH protective treatment per IEC 60068-2-30 suit the part for industrial environments with condensation or mild corrosive atmospheres.
Applications
This star-delta starter is specified for three-phase induction motors up to 9 A full-load current — typical in pumps, fans, compressors, and light conveyor drives where reduced starting current is required to limit voltage drop on the supply. The pre-wired assembly simplifies installation in motor control centres (MCCs) and OEM panels.
