LC3D09AP7
Schneider Electric
IP20-40...70 °C at Uc-60...80 °C
Ref. price$305.91 – $387.69
Lead time on requestGet quote

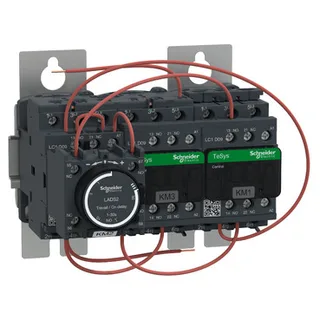

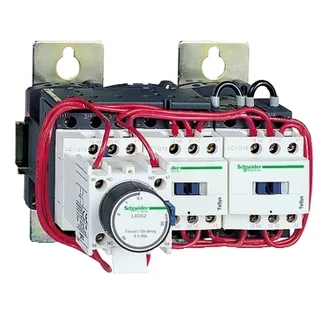

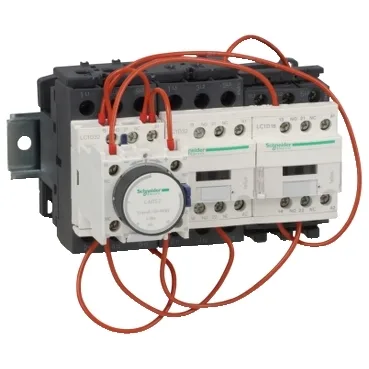

Schneider Electric LC3D Contactors Series
71 variants · Schneider Electric
About the Schneider Electric LC3D Contactors Series
The Schneider Electric LC3D Contactors Series series groups 71 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common application of Motor control, fire behavior of V1 conforming to UL 94 and main product or component type of Star delta starter. Variants differ by operating temperature and IP rating, so you can match the exact operating temperature your application requires using the selection guide below.
Select a variant by
- Operating temperature
- -40...60 °C 60...70 °C with derating · -40...70 °C at Uc
- IP rating
- IP2X · IP20
Shared specifications
- Application
- Motor control
- Fire behavior
- V1 conforming to UL 94
- Main product or component type
- Star delta starter
- Pollution degree
- 3
- Storage temperature
- -60...80 °C
- Temp operating max
- 70 °C
- Temp operating min
- -40 °C
- Temp storage max
- 80 °C
- Temp storage min
- -60 °C
- Utilization category
- AC-3
Variant comparison
| Parameter | LC3D090AU7 | LC3D09AP7 | LC3D115E7 | LC3D115FE7 | LC3D115Q7 | LC3D120AU7 |
|---|---|---|---|---|---|---|
| Operating temperature | -40...70 °C at Uc | -40...70 °C at Uc | -40...70 °C at Uc | -40...70 °C at Uc | -40...70 °C at Uc | -40...70 °C at Uc |
| IP rating | IP2X | IP20 | IP2X | IP2X | IP2X | IP20 |
Request a quote on any Schneider Electric LC3D Contactors Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
