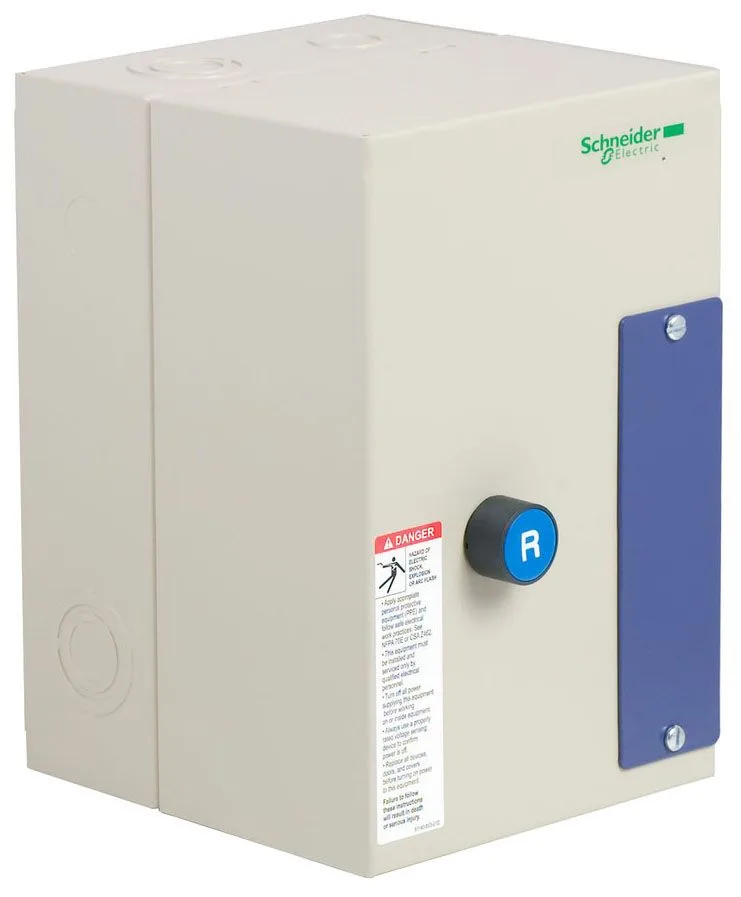

Schneider Electric LE1D093A62OT70
MPNLE1D093A62OT70
Active
Full Voltage Non-Reversing Starter TeSys D, 3P, Type 1, 9A, 480VAC Coil|Full Voltage Non-Reversing Starter TeSys D, 3P, Type 1, 9A, 480VAC Coil
$224.64Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Depth | 7.008 in (178 mm) |
| Width | 6.8 in (172 mm) |
| Height | 10.04 in (255 mm) |
| Starter type | Non reversing |
| Current rating | 20 A AC-1 9 A AC-3 |
| Enclosure type | NEMA 1 painted sheet steel |
| Range of product | Instakits |
| Horsepower rating | 1 hp 240 V AC, 1 phase 2 hp 208 V AC, 3 phase 2 hp 230 V AC, 3 phase 5 hp 460 V AC, 3 phase 7.5 hp 575 V AC, 3 phase 0.33 hp 120 V AC, 1 phase |
| Auxiliary contacts | 1 NO + 1 NC |
| Location of connection | Line |
| Maximum voltage rating | 600 V AC |
| Control circuit voltage | 480 V AC 50/60 Hz |
| Product or component type | Full voltage starter |
MPN
LE1D093A62OT70
