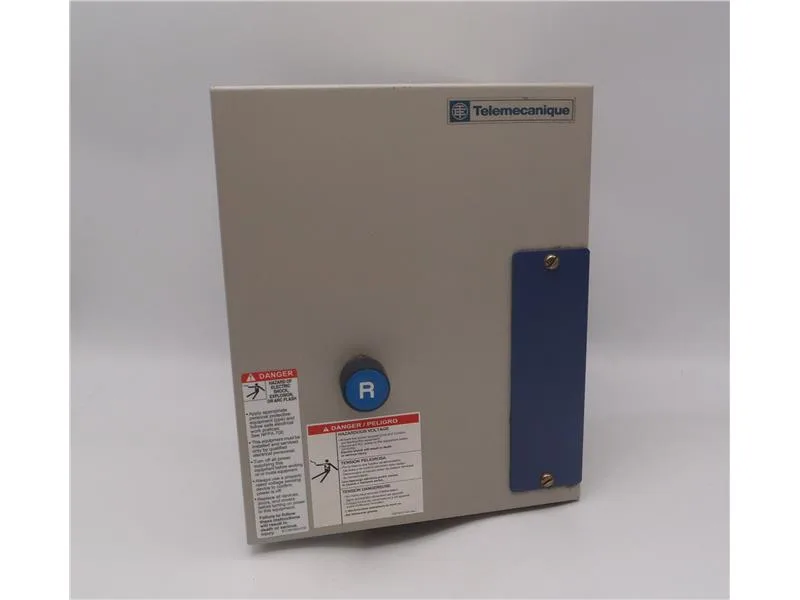

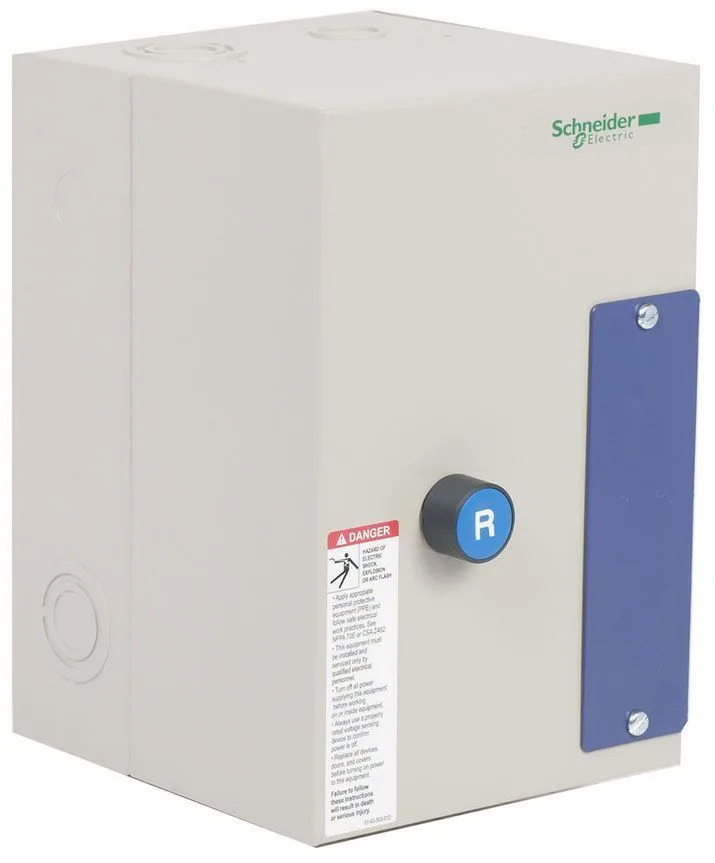

Schneider Electric LE1D503A62OU70
MPNLE1D503A62OU70
Active
SQUARE D LE1D503A62OU70: 50A 240V COIL 3P FULL VOLTAGE NON-REVERSING TYPE 1
$408.00 – $780.35Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Depth | 7.4 in (188 mm) |
| Width | 10.6 in (270 mm) |
| Height | 14.0 in (355 mm) |
| Starter type | Non reversing |
| Current rating | 80 A AC-1 50 A AC-3 |
| Enclosure type | NEMA 1 painted sheet steel |
| Range of product | Instakits |
| Horsepower rating | 3 hp 120 V AC, 1 phase 7.5 hp 240 V AC, 1 phase 15 hp 208 V AC, 3 phase 15 hp 230 V AC, 3 phase 40 hp 460 V AC, 3 phase 40 hp 575 V AC, 3 phase |
| Auxiliary contacts | 1 NO + 1 NC |
| Location of connection | Line |
| Maximum voltage rating | 600 V AC |
| Control circuit voltage | 240 V AC 50/60 Hz |
| Product or component type | Full voltage starter |
MPN
LE1D503A62OU70
