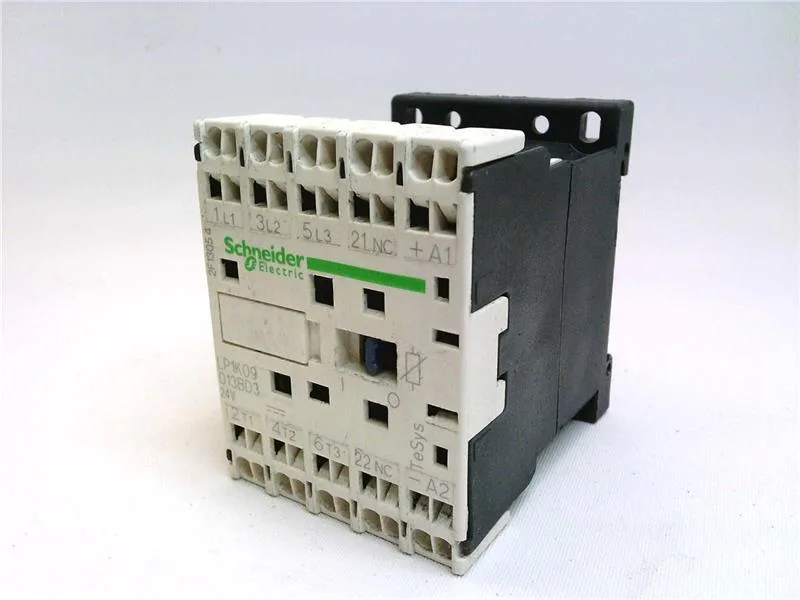

Schneider Electric LP1-K0901-3B-D3
MPNLP1-K0901-3B-D3
Obsolete
Contactor, TeSys K, 3P, AC-3/AC-3e, 440V, 9A, 1NC aux, 24V DC coil, spring terminals
$17.49Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Voltage min | 17 V for signalling circuit |
| Current min | 5 mA for signalling circuit |
| Poles | 3 |
| Utilization category | AC-3 AC-3e AC-1 AC-4 |
| Mounting | Plate Rail |
| Connections - terminals | spring terminals 1 0.001...0.002 in² (0.75...1.5 mm²)solid spring terminals 1 0.001...0.002 in² (0.75...1.5 mm²)flexible without cable end spring terminals 2 0.001...0.002 in² (0.75...1.5 mm²)flexible without cable end |
| Altitude max | 6561.68 ft (2000 m) without derating |
| Depth | 55.88 |
| Width | 45.72 |
| Height | 58.42 |
| Electrical life cycles | 1.3 Mcycles 9 A AC-3 1.3 Mcycles 9 A AC-3e 0.16 Mcycles 20 A AC-1 0.02 Mcycles 54 A AC-4 <= 440 V |
| Mechanical life cycles | 10 Mcycles |
All specifications
| Parameter | Value |
|---|---|
| Standards | EN/IEC 60947-4-1 EN/IEC 60947-5-1 UL 60947-4-1 UL 60947-5-1 CSA C22.2 No 60947-4-1 CSA C22.2 No 60947-5-1 GB/T 14048.4 |
| Range | TeSys |
| Power | 3 NO |
| IP rating | IP2X |
| Auxiliary contacts | Instantaneous 1 NC |
| Package_type | PCE |
| Fire_behavior | V1 conforming to UL 94 Requirement 2 conforming to NF F 16-101 Requirement 2 conforming to NF F 16-102 |
| Coil voltage | 0.8 |
| Coil technology | With integral suppression device |
| Heat dissipation | 1.3 W |
| Application_type | Motor control Resistive load |
| Supply voltage | Power circuit Signalling circuit 10 MOhm for signalling circuit |
| Device short name | LP1K |
| Operating time | 30 |
| Power consumption | 3 |
| Storage temperature | -58...176 °F (-50...80 °C) |
| Safety reliability level | B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1 |
| Maximum operating rate max | 3600 cyc/h |
| Main_product_or_component_type | Contactor |
| Operating temperature | -13 |
| Ordering and shipping details (Category) | US10I1222321 |
MPN
LP1-K0901-3B-D3
