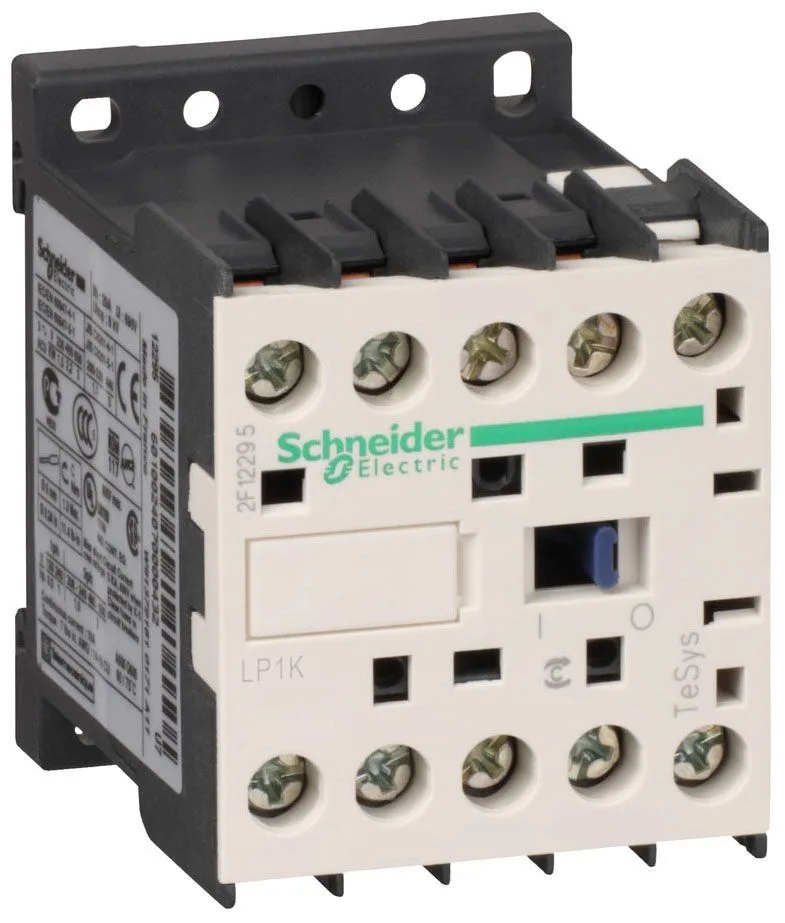

Schneider Electric LP1K0901 Series

37 variants · Schneider Electric

About the Schneider Electric LP1K0901 Series

The Schneider Electric LP1K0901 Series series groups 37 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common depth of 2.2 in (57 mm), electrical life cycles of 1.3 Mcycles 9 A AC-3 1.3 Mcycles 9 A AC-3e 0.16 Mcycles 20 A AC-1 0.02 Mcycles 54 A AC-4 <= 440 V and height of 2.3 in (58 mm). Variants differ by application, so you can match the exact application your application requires using the selection guide below.

Select a variant by

Application: Resistive load Motor control · Resistive load, Motor control

Shared specifications

Depth: 2.2 in (57 mm)
Electrical life cycles: 1.3 Mcycles 9 A AC-3 1.3 Mcycles 9 A AC-3e 0.16 Mcycles 20 A AC-1 0.02 Mcycles 54 A AC-4 <= 440 V
Height: 2.3 in (58 mm)
IP rating: IP2X
Main product or component type: Contactor
Mechanical life cycles: 10 Mcycles
Operating temperature: -13...122 °F (-25...50 °C)
Storage temperature: -58...176 °F (-50...80 °C)
Temp operating max: 50 °C
Temp operating min: -25 °C
Temp storage max: 80 °C
Temp storage min: -50 °C

Variant comparison

Parameter	LP1K09013BD3	LP1K0901JD	LP1K09013BD	LP1K0901FD
Application	Resistive load, Motor control	Resistive load, Motor control	Resistive load, Motor control	Resistive load Motor control

Request a quote on any Schneider Electric LP1K0901 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
