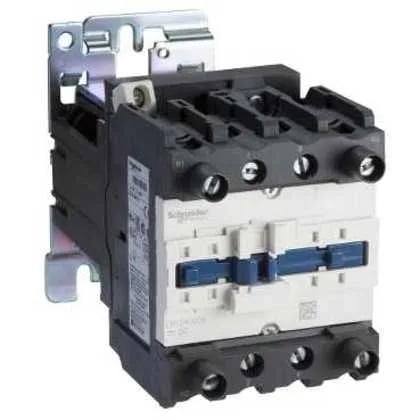

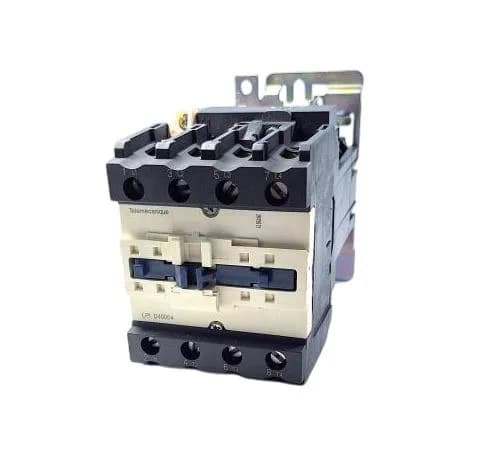

Schneider Electric TeSys Deca LP1D40004BD contactor, 4-pole, 40 A rated, AC-1/AC-3 utilization, 24 V DC coil, IP2X, plate/rail mount, discontinued.
| Parameter | Value |
|---|---|
| Range of product | TeSys Deca |
| Product or component type | Contactor |
| [Ue] rated operational voltage | Power circuit: 10 MOhm for control circuit |
| Poles description | 4P |
| Utilisation category | AC-1 AC-3 AC-3e AC-4 |
| IP degree of protection | IP2X conforming to IEC 60529 IP2X conforming to VDE 0106 |
| Mounting support | Plate Rail |
| Operating altitude | 3000 m without derating |
| Depth | 182 mm |
| Width | 85 mm |
| Height | 127 mm |
| Standards | BS 5424 IEC 60947-4-1 VDE 0660 EN 60947-4-1 IEC 60947-1 NF C 63-110 JEM 1038 EN 60947-1 |
| Parameter | Value |
|---|---|
| Fire resistance | 850 °C conforming to IEC 60695-2-1 |
| Flame retardance | V1 conforming to UL 94 |
| Non-overlap time | 1.5 ms on de-energisation between NC and NO contacts 1.5 ms on energisation between NC and NO contacts |
| Device short name | LP1D |
| Protective treatment | TH (pollution degree 3) conforming to IEC 60068 |
| Contactor application | Resistive load |
| Mechanical robustness | Shocks contactor open (8 Gn for 11 ms) Shocks contactor closed (10 Gn for 11 ms) Vibrations contactor opened (2 Gn, 5...300 Hz) Vibrations contactor closed (4 Gn, 5...300 Hz) |
| Permissible ambient air temperature around the device | -5...60 °C -40...70 °C at Uc |
The LP1D40004BD: It carries certifications including DNV, GL, UL, CSA, and GOST, and is sealed to IP2X per IEC 60529 and VDE 0106.
For a line-down or last-time-buy need, an RFQ confirms available quantity and lead time for this exact build code.
