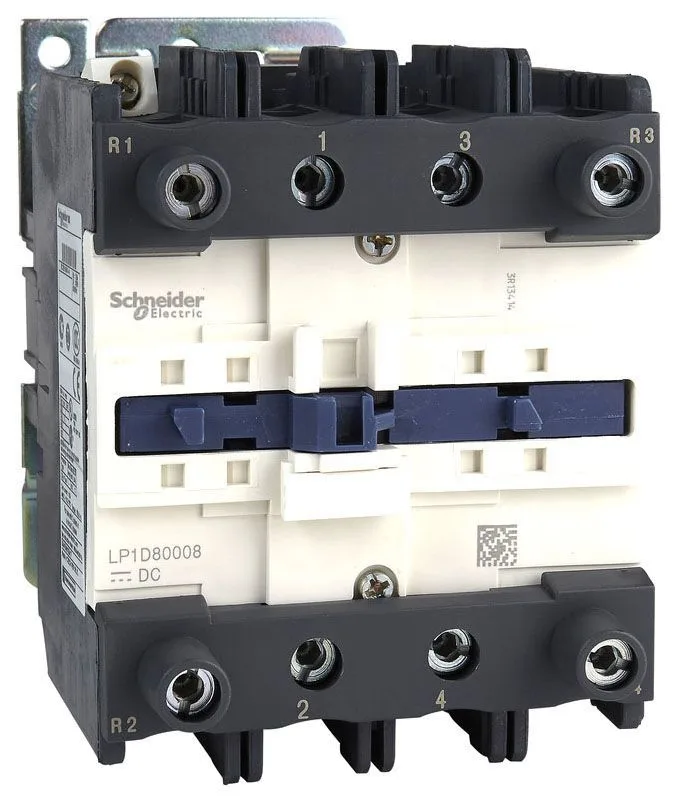

LP1D80008MD
Schneider Electric
IP20Resistive load60 °C
Ref. price$800.00
Lead time on requestGet quote
Schneider Electric LP1D Series
69 variants · Schneider Electric
About the Schneider Electric LP1D Series
The Schneider Electric LP1D Series series groups 69 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Variants differ by control circuit type, depth and electrical life cycles, so you can match the exact control circuit type your application requires using the selection guide below.
Select a variant by
- Control circuit type
- DC DC standard · DC wide range
- Depth
- 7.1 in (181 mm) · 7.2 in (182 mm) · 7.7 in (196 mm)
- Electrical life cycles
- 0.8 Mcycles 125 A AC-1 <= 440 V · 1.4 Mcycles 60 A AC-1 <= 440 V · 1.5 Mcycles 80 A AC-1 <= 440 V
- Mechanical life cycles
- 4 Mcycles · 10 Mcycles
- Operating time
- 4...19 ms opening 12...26 ms closing · 6...20 ms opening 20...35 ms closing
- Width
- 3.3 in (85 mm) · 3.8 in (96 mm)
Variant comparison
| Parameter | LP1D80008MD | LP1D40008BD | LP1D40008FD | LP1D40008MD | LP1D80004BD | LP1D80004BW |
|---|---|---|---|---|---|---|
| Control circuit type | DC DC standard | DC DC standard | DC DC standard | DC DC standard | DC DC standard | DC wide range |
| Depth | 7.7 in (196 mm) | 7.2 in (182 mm) | 7.2 in (182 mm) | 7.2 in (182 mm) | 7.1 in (181 mm) | 7.1 in (181 mm) |
| Electrical life cycles | 0.8 Mcycles 125 A AC-1 <= 440 V | 1.4 Mcycles 60 A AC-1 <= 440 V | 1.4 Mcycles 60 A AC-1 <= 440 V | 1.4 Mcycles 60 A AC-1 <= 440 V | 0.8 Mcycles 125 A AC-1 <= 440 V | 0.8 Mcycles 125 A AC-1 <= 440 V |
| Mechanical life cycles | 10 Mcycles | 10 Mcycles | 10 Mcycles | 10 Mcycles | 4 Mcycles | 4 Mcycles |
| Operating time | 6...20 ms opening 20...35 ms closing | 4...19 ms opening 12...26 ms closing | 4...19 ms opening 12...26 ms closing | 4...19 ms opening 12...26 ms closing | 6...20 ms opening 20...35 ms closing | 6...20 ms opening 20...35 ms closing |
| Width | 3.8 in (96 mm) | 3.3 in (85 mm) | 3.3 in (85 mm) | 3.3 in (85 mm) | 3.8 in (96 mm) | 3.8 in (96 mm) |
Request a quote on any Schneider Electric LP1D Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
