The Schneider TeSys Deca LP1D40008MD is a 4-pole contactor built for resistive loads (utilization category AC-1). It is rated 60 A AC-1, meaning it handles resistive heating or lighting loads up to that current - not motor starts, which is the AC-3 rating this part does not carry. The 60 A AC-1 rating holds across the full 440 V range, with an electrical durability of 1.4 Mcycles at that load. The coil includes a built-in bidirectional peak limiting diode suppressor. Inrush power is 22 W; opening time 4...19 ms, closing 12...26 ms. Mechanically, it's good for 10 Mcycles, with vibration tolerance of 4 Gn closed and 2 Gn open (5...300 Hz). IP20 front face.

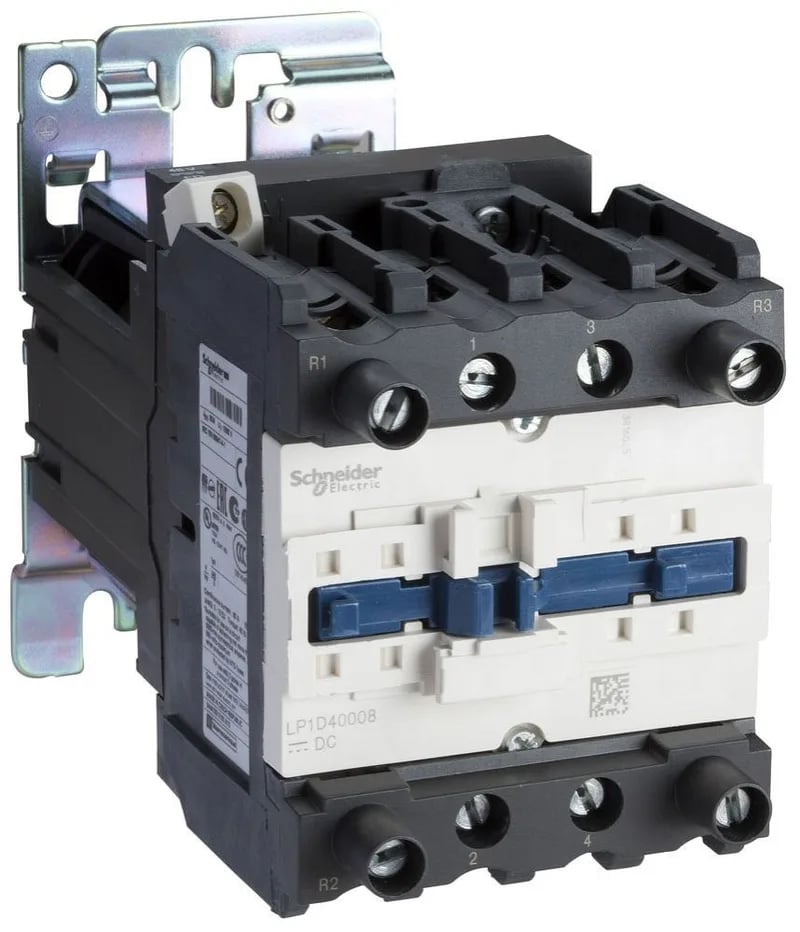

Schneider TeSys Deca LP1D40008MD Contactor, 4P, 60A AC-1, DC
MPNLP1D40008MD
Active
Schneider Electric TeSys Deca LP1D40008MD, 4-pole contactor, 60 A AC-1, DC control, screw clamp terminals.
$489.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Range of product | TeSys Deca |
| Control circuit type | DC DC standard |
| Product or component type | Contactor |
| Coil voltage | 220 V DC |
| Voltage | Power circuit 690 V IEC 60947-4-1 Power circuit 600 V CSA Power circuit 600 V UL |
| Control circuit voltage limits | 0.1...0.3 Uc (-40...131 °F (-40...55 °C)):drop-out DC 0.85...1.1 Uc (-40...131 °F (-40...55 °C)):operational DC |
| [Ue] rated operational voltage | Power circuit <= 1000 V AC 25...400 Hz |
| [Uimp] rated impulse withstand voltage | 6 kV IEC 60947 |
| [Icw] rated short-time withstand current | 72 A 104 °F (40 °C) - 10 min for power circuit 165 A 104 °F (40 °C) - 1 min for power circuit 320 A 104 °F (40 °C) - 10 s for power circuit 720 A 104 °F (40 °C) - 1 s for power circuit |
| Breaking capacity | 800 A at 440 V for power circuit conforming to IEC 60947 |
| [Ie] rated operational current | 60 A (at <140 °F (60 °C)) at <= 440 V AC AC-1 for power circuit |
| [Ith] conventional free air thermal current | 60 A (at 140 °F (60 °C)) for power circuit |
All specifications
| Parameter | Value |
|---|---|
| Inrush power in | 22 W 68 °F (20 °C)) |
| Power dissipation per pole | 5.4 W AC-1 |
| Hold-in power consumption in | 22 W 68 °F (20 °C) |
| Poles description | 4P |
| Pole contact composition | 2 NO + 2 NC |
| Utilisation category | AC-1 |
| IP degree of protection | IP20 front face IEC 60529 |
| Mounting support | Rail Plate |
| Connections - terminals | Power circuit: screw clamp terminals 1 0.004...0.04 in² (2.5...25 mm²) - cable stiffness: flexible without cable end Power circuit: screw clamp terminals 2 0.004...0.02 in² (2.5...16 mm²) - cable stiffness: flexible without cable end Power circuit: screw clamp terminals 1 0.004...0.04 in² (2.5...25 mm²) - cable stiffness: flexible with cable end Power circuit: screw clamp terminals 2 0.004...0.02 in² (2.5...10 mm²) - cable stiffness: flexible with cable end Power circuit: screw clamp terminals 1 0.004...0.04 in² (2.5...25 mm²) - cable stiffness: solid Power circuit: screw clamp terminals 2 0.004...0.02 in² (2.5...16 mm²) - cable stiffness: solid Control circuit: screw clamp terminals 1 0.002...0.006 in² (1...4 mm²) - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 2 0.002...0.006 in² (1...4 mm²) - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 1 0.002...0.006 in² (1...4 mm²) - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 2 0.002...0.004 in² (1...2.5 mm²) - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 1 0.002...0.006 in² (1...4 mm²) - cable stiffness: solid Control circuit: screw clamp terminals 2 0.002...0.006 in² (1...4 mm²) - cable stiffness: solid |
| Pollution degree | 3 |
| Operating altitude | 0...9842.52 ft (0...3000 m) |
| Depth | 7.2 in (182 mm) |
| Width | 3.3 in (85 mm) |
| Height | 5 in (127 mm) |
| Electrical durability | 1.4 Mcycles 60 A AC-1 <= 440 V |
| Mechanical durability | 10 Mcycles |
| Standards | CSA C22.2 No 14 EN 60947-4-1 EN 60947-5-1 IEC 60947-4-1 IEC 60947-5-1 UL 60947-4-1 |
| Range | TeSys |
| Category | US10I1222358 |
| Time constant | 75 ms |
| Operating time | 4...19 ms opening 12...26 ms closing |
| Coil technology | Built-in bidirectional peak limiting diode suppressor |
| Fire resistance | 1562 °F (850 °C) IEC 60695-2-1 |
| Flame retardance | V1 conforming to UL 94 |
| Protective cover | With |
| Average impedance | 1.5 mOhm - Ith 60 A 50 Hz for power circuit |
| Device short name | LP1D |
| Tightening torque | Power circuit 70.8 lbf.in (8 N.m) screw clamp terminals 0.04...0.05 in² (25...35 mm²) hexagonal 0.2 in (4 mm) Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals flat Ø 6 mm Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals Philips No 2 Power circuit 44.3 lbf.in (5 N.m) screw clamp terminals 0.002...0.04 in² (1...25 mm²) hexagonal 0.2 in (4 mm) Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals pozidriv No 2 |
| Compatibility code | LP1D |
| Overvoltage category | III |
| Contactor application | Resistive load |
| Mechanical robustness | Shocks contactor open 8 Gn for 11 ms) Shocks contactor closed 10 Gn for 11 ms) Vibrations contactor opened 2 Gn, 5...300 Hz) Vibrations contactor closed 4 Gn, 5...300 Hz) |
| Associated fuse rating | 80 A gG at 80 A gG at <= 690 V coordination type 2 for power circuit |
| Maximum operating rate | 3600 cyc/h at 60 °C |
| Safety reliability level | B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1 |
| Irms rated making capacity | 800 A at 440 V for power circuit conforming to IEC 60947 |
| Permissible ambient air temperature around the device | -40...140 °F (-40...60 °C) 140...158 °F (60...70 °C) with derating |
Product details
Frequently asked questions
What are the key standards this contactor complies with?
It is certified to IEC 60947-4-1, IEC 60947-5-1, UL 60947-4-1, CSA C22.2 No 14, and EN versions of those standards. The front face carries IP20 protection.
What is the depth of the LP1D40008MD?
The depth is 7.2 inches (182 mm).
