Schneider Electric LP1D65008BD

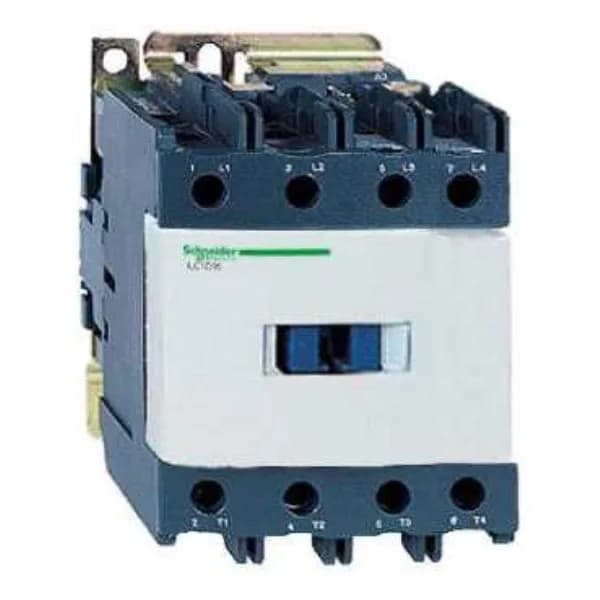

Schneider LP1D65008BD TeSys Deca 4P Contactor

MPNLP1D65008BD
Active

Schneider TeSys Deca LP1D65008BD, 4-pole contactor, 80 A AC-1, DC coil with integrated bidirectional peak limiting diode suppressor.

$194.31Ref. price · indicative, final on quote
Schneider Electric LP1D65008BD datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

LP1D65008BD key specifications
ParameterValue
Range of productTeSys Deca
Control circuit typeDC DC standard
Product or component typeContactor
Coil voltage24 V DC
VoltagePower circuit 690 V IEC 60947-4-1 Power circuit 600 V CSA Power circuit 600 V UL
Control circuit voltage limits0.1...0.3 Uc (-40...131 °F (-40...55 °C)):drop-out DC 0.85...1.1 Uc (-40...131 °F (-40...55 °C)):operational DC
[Ue] rated operational voltagePower circuit <= 1000 V AC 25...400 Hz
[Uimp] rated impulse withstand voltage6 kV IEC 60947
[Icw] rated short-time withstand current110 A 104 °F (40 °C) - 10 min for power circuit 260 A 104 °F (40 °C) - 1 min for power circuit 520 A 104 °F (40 °C) - 10 s for power circuit 900 A 104 °F (40 °C) - 1 s for power circuit
Breaking capacity1000 A at 440 V for power circuit conforming to IEC 60947
[Ie] rated operational current80 A (at <140 °F (60 °C)) at <= 440 V AC AC-1 for power circuit
[Ith] conventional free air thermal current80 A (at 140 °F (60 °C)) for power circuit

All specifications

LP1D65008BD additional specifications
ParameterValue
Inrush power in22 W 68 °F (20 °C))
Power dissipation per pole9.6 W AC-1
Hold-in power consumption in22 W 68 °F (20 °C)
Poles description4P
Pole contact composition2 NO + 2 NC
Utilisation categoryAC-1
IP degree of protectionIP20 front face IEC 60529
Mounting supportPlate Rail
Connections - terminalsPower circuit: screw clamp terminals 1 0.004...0.04 in² (2.5...25 mm²) - cable stiffness: flexible without cable end Power circuit: screw clamp terminals 2 0.004...0.02 in² (2.5...16 mm²) - cable stiffness: flexible without cable end Power circuit: screw clamp terminals 1 0.004...0.04 in² (2.5...25 mm²) - cable stiffness: flexible with cable end Power circuit: screw clamp terminals 2 0.004...0.02 in² (2.5...10 mm²) - cable stiffness: flexible with cable end Power circuit: screw clamp terminals 1 0.004...0.04 in² (2.5...25 mm²) - cable stiffness: solid Power circuit: screw clamp terminals 2 0.004...0.02 in² (2.5...16 mm²) - cable stiffness: solid Control circuit: screw clamp terminals 1 0.002...0.006 in² (1...4 mm²) - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 2 0.002...0.006 in² (1...4 mm²) - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 1 0.002...0.006 in² (1...4 mm²) - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 2 0.002...0.004 in² (1...2.5 mm²) - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 1 0.002...0.006 in² (1...4 mm²) - cable stiffness: solid Control circuit: screw clamp terminals 2 0.002...0.006 in² (1...4 mm²) - cable stiffness: solid
Pollution degree3
Operating altitude0...9842.52 ft (0...3000 m)
Depth7.2 in (182 mm)
Width3.3 in (85 mm)
Height5 in (127 mm)
Electrical durability1.5 Mcycles 80 A AC-1 <= 440 V
Mechanical durability10 Mcycles
StandardsCSA C22.2 No 14 EN 60947-4-1 EN 60947-5-1 IEC 60947-4-1 IEC 60947-5-1 UL 60947-4-1
RangeTeSys
CategoryUS10I1222358
Time constant75 ms
Operating time4...19 ms opening 12...26 ms closing
Coil technologyBuilt-in bidirectional peak limiting diode suppressor
Fire resistance1562 °F (850 °C) IEC 60695-2-1
Flame retardanceV1 conforming to UL 94
Protective coverWith
Average impedance1.5 mOhm - Ith 80 A 50 Hz for power circuit
Device short nameLP1D
Tightening torquePower circuit 70.8 lbf.in (8 N.m) screw clamp terminals 0.04...0.05 in² (25...35 mm²) hexagonal 0.2 in (4 mm) Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals flat Ø 6 mm Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals Philips No 2 Power circuit 44.3 lbf.in (5 N.m) screw clamp terminals 0.002...0.04 in² (1...25 mm²) hexagonal 0.2 in (4 mm) Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals pozidriv No 2
Compatibility codeLP1D
Overvoltage categoryIII
Contactor applicationResistive load
Mechanical robustnessShocks contactor open 8 Gn for 11 ms) Shocks contactor closed 10 Gn for 11 ms) Vibrations contactor opened 2 Gn, 5...300 Hz) Vibrations contactor closed 3 Gn, 5...300 Hz)
Associated fuse rating125 A gG at 125 A gG at <= 690 V coordination type 2 for power circuit
Maximum operating rate3600 cyc/h at 60 °C
Safety reliability levelB10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Irms rated making capacity1000 A at 440 V for power circuit conforming to IEC 60947
Permissible ambient air temperature around the device-40...140 °F (-40...60 °C) 140...158 °F (60...70 °C) with derating

Product details

The Schneider LP1D65008BD is a TeSys Deca contactor rated for 80 A in AC-1 resistive duty, with 4 poles and a DC coil that includes a built-in bidirectional peak limiting diode suppressor — no external flyback diode needed. Mechanical durability hits 10 Mcycles; electrical durability at rated load is 1.5 Mcycles.

AC-1 utilisation category limits this contactor to resistive loads only — not for motor starting or inductive switching. The 80 A rating is continuous at 440 V. If your panel runs heating elements, lighting banks, or transformer primaries that stay within resistive inrush, this part is on-spec. The 4-pole frame (2 NO + 2 NC) suits three-phase plus neutral or dual independent load circuits. Coil suppression is already inside the contactor — the bidirectional peak limiting diode cuts EMI and protects the DC driver circuit. The control circuit operates on DC only; no AC coil variant here. Rated making and breaking capacity is 1000 A at 440 V for the power circuit, per IEC 60947.

Mounting and wiring note

Mounts on plate or rail. Screw-clamp terminals on power and control circuits; torque spec is 70.8 lbf·in (8 N·m) for power conductors up to 25 mm² flexible with ferrule, and 15.05 lbf·in (1.7 N·m) for control wiring. Accepts solid or stranded copper. The IP20 front face keeps fingers out but doesn't seal against washdown. Pollution degree 3 environment — okay for most control panels unless exposure to conductive dust is extreme.

Frequently asked questions

What compliance standards does the LP1D65008BD meet?

It is listed to UL 60947-4-1, CSA C22.2 No 14, IEC 60947-4-1, and IEC 60947-5-1. Fire resistance is rated at 850 °C per IEC 60695-2-1, and flame retardance is V1 per UL 94.

What is the exact depth of the LP1D65008BD?

The depth is 7.2 in (182 mm).
