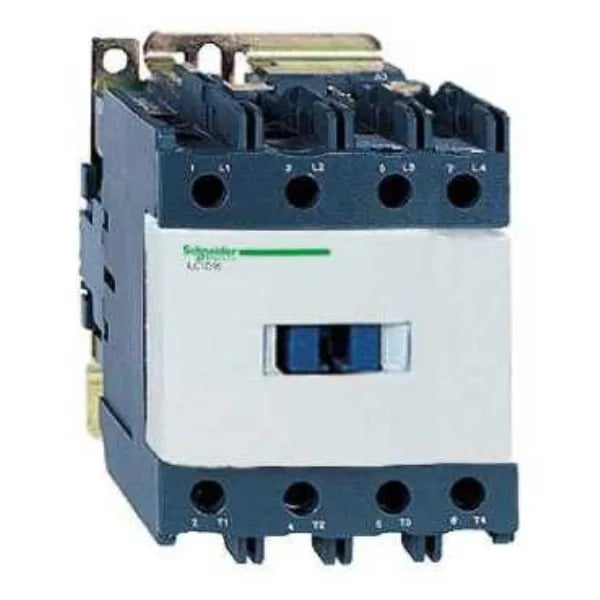

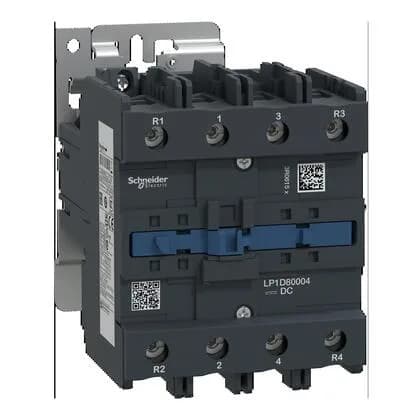

Schneider Electric LP1D80004BD

Schneider LP1D80004BD TeSys Deca Contactor, 4P DC Coil, AC-1

MPNLP1D80004BD
Active

Schneider TeSys Deca LP1D80004BD 4-pole DC coil contactor, 125 A AC-1 resistive load, with protective cover.

$179.62Ref. price · indicative, final on quote
Schneider Electric LP1D80004BD datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

LP1D80004BD key specifications
ParameterValue
Range of productTeSys Deca
Control circuit typeDC DC standard
Product or component typeContactor
Coil voltage24 V DC
VoltagePower circuit 600 V CSA Power circuit 600 V UL Power circuit 1000 V IEC 60947-4-1
Control circuit voltage limits0.1...0.3 Uc (-40...158 °F (-40...70 °C)):drop-out DC 0.85...1.1 Uc (-40...131 °F (-40...55 °C)):operational DC 1...1.1 Uc (131...158 °F (55...70 °C)):operational DC
[Ue] rated operational voltagePower circuit Power circuit <= 300 V DC
[Uimp] rated impulse withstand voltage8 kV IEC 60947
[Icw] rated short-time withstand current135 A 104 °F (40 °C) - 10 min for power circuit 320 A 104 °F (40 °C) - 1 min for power circuit 640 A 104 °F (40 °C) - 10 s for power circuit 990 A 104 °F (40 °C) - 1 s for power circuit
Breaking capacity1100 A at 440 V for power circuit conforming to IEC 60947
[Ie] rated operational current125 A (at 80 A (at 80 A (at 55 A (at <140 °F (60 °C)) at <= 400 V AC AC-4 for power circuit
[Ith] conventional free air thermal current125 A (at 140 °F (60 °C)) for power circuit

All specifications

LP1D80004BD additional specifications
ParameterValue
Inrush power in22 W 68 °F (20 °C))
Power dissipation per pole12.5 W AC-1 5.1 W AC-3 5.1 W AC-3e
Hold-in power consumption in22 W 68 °F (20 °C)
Poles description4P
Pole contact composition4 NO
Utilisation categoryAC-1
IP degree of protectionIP20 front face IEC 60529
Mounting supportRail Plate
Connections - terminalsControl circuit: screw clamp terminals 1 0.002...0.006 in² (1...4 mm²) - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 2 0.002...0.006 in² (1...4 mm²) - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 2 0.002...0.004 in² (1...2.5 mm²) - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 1 0.002...0.006 in² (1...4 mm²) - cable stiffness: solid Control circuit: screw clamp terminals 2 0.002...0.006 in² (1...4 mm²) - cable stiffness: solid Power circuit: connector 1 0.006...0.08 in² (4...50 mm²) - cable stiffness: flexible without cable end Power circuit: connector 2 0.006...0.04 in² (4...25 mm²) - cable stiffness: flexible without cable end Power circuit: connector 1 0.006...0.08 in² (4...50 mm²) - cable stiffness: flexible with cable end Power circuit: connector 2 0.006...0.02 in² (4...16 mm²) - cable stiffness: flexible with cable end Power circuit: connector 1 0.006...0.08 in² (4...50 mm²) - cable stiffness: solid Power circuit: connector 2 0.006...0.04 in² (4...25 mm²) - cable stiffness: solid Control circuit: screw clamp terminals 1 0.002...0.004 in² (1...2.5 mm²) - cable stiffness: flexible with cable end
Pollution degree3
Operating altitude0...9842.52 ft (0...3000 m)
Depth7.1 in (181 mm)
Width3.8 in (96 mm)
Height5 in (127 mm)
Electrical durability0.8 Mcycles 125 A AC-1 <= 440 V
Mechanical durability4 Mcycles
StandardsCSA C22.2 No 14 EN 60947-4-1 EN 60947-5-1 IEC 60947-4-1 IEC 60947-5-1 UL 60947-4-1
RangeTeSys
CategoryUS10I1222359
Time constant75 ms
Operating time6...20 ms opening 20...35 ms closing
Coil technologyWithout built-in suppressor module
Fire resistance1562 °F (850 °C) IEC 60695-2-1
Flame retardanceV1 conforming to UL 94
Protective coverWith
Average impedance0.8 mOhm - Ith 125 A 50 Hz for power circuit
Device short nameLP1D
Tightening torqueControl circuit 10.6 lbf.in (1.2 N.m) screw clamp terminals flat Ø 6 mm Control circuit 10.6 lbf.in (1.2 N.m) screw clamp terminals Philips No 2 Power circuit 106.2 lbf.in (12 N.m) connector flat Ø 6 to Ø 8 mm Power circuit 106.2 lbf.in (12 N.m) connector hexagonal 0.2 in (4 mm) Control circuit 10.6 lbf.in (1.2 N.m) lugs-ring terminals pozidriv No 2
Compatibility codeLP1D
Overvoltage categoryIII
Contactor applicationResistive load
Mechanical robustnessVibrations contactor open 2 Gn, 5...300 Hz) Vibrations contactor closed 3 Gn, 5...300 Hz) Shocks contactor open 8 Gn for 11 ms) Shocks contactor closed 10 Gn for 11 ms)
Associated fuse rating200 A gG at 160 A gG at <= 690 V coordination type 2 for power circuit
Maximum operating rate3600 cyc/h at 60 °C
Safety reliability levelB10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Irms rated making capacity1100 A at 440 V for power circuit conforming to IEC 60947
Permissible ambient air temperature around the device-40...140 °F (-40...60 °C) 140...158 °F (60...70 °C) with derating

Product details

If your BOM requires motor switching (AC-3 or AC-4), this contactor is not the correct fit; the AC-1 rating caps the making and breaking current for resistive duty only.

Coil and control

The coil is DC control circuit type rated at 22 W inrush at 68 °F (20 °C). There is no built-in suppressor module fitted, so plan an external flyback diode across the coil if the driving output is a solid-state relay or PLC transistor output. Operating time is 6...20 ms opening and 20...35 ms closing. Tighten control circuit terminals to 10.6 lbf·in (1.2 N·m).

Dimensions: 7.1 in (181 mm) depth, 3.8 in (96 mm) width, 5 in (127 mm) height. Compliant with UL 60947-4-1, CSA C22.2 No 14, EN 60947-4-1, and IEC 60947-4-1. Flame retardance V1 per UL 94, fire resistance at 1562 °F (850 °C).

Frequently asked questions

What is the depth of LP1D80004BD?

Depth is 7.1 in (181 mm).

What standards does LP1D80004BD comply with?

It complies with CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, and UL 60947-4-1.
