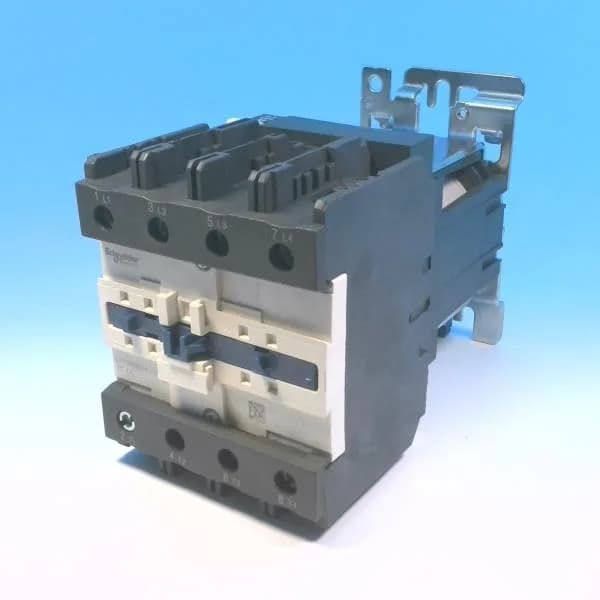

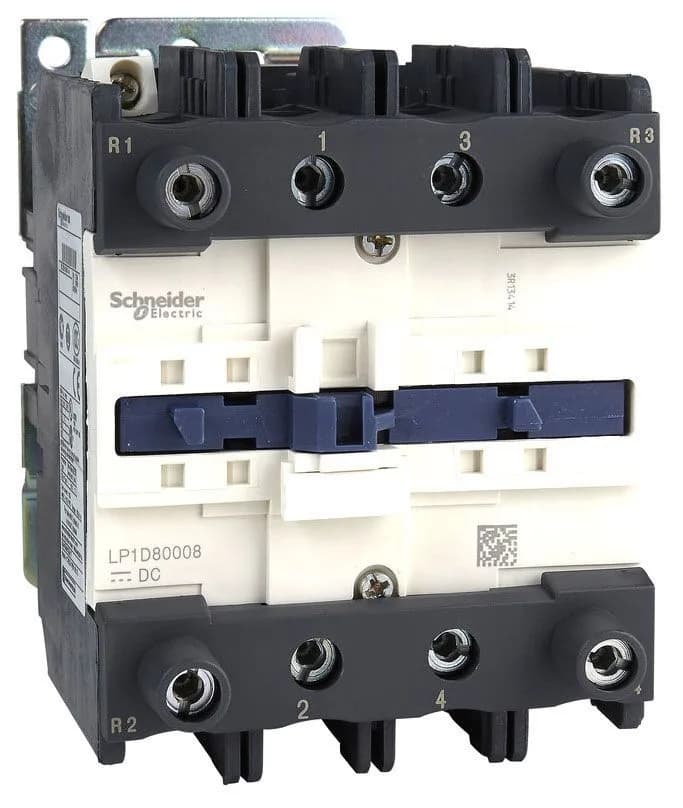

Schneider Electric LP1D80004BW

Schneider LP1D80004BW TeSys Deca 4-Pole Contactor, AC-1

MPNLP1D80004BW
Active

Schneider Electric TeSys Deca LP1D80004BW, 4-pole contactor, AC-1 resistive load, 125 A, DC wide-range coil.

$201.93Ref. price · indicative, final on quote
Schneider Electric LP1D80004BW datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

LP1D80004BW key specifications
ParameterValue
Range of productTeSys Deca
Control circuit typeDC wide range
Product or component typeContactor
Coil voltage24 V DC
VoltagePower circuit 600 V CSA Power circuit 600 V UL Power circuit 1000 V IEC 60947-4-1
Control circuit voltage limits0.1...0.3 Uc (-40...158 °F (-40...70 °C)):drop-out DC 0.75...1.2 Uc (-40...131 °F (-40...55 °C)):operational DC 1...1.2 Uc (131...158 °F (55...70 °C)):operational DC
[Ue] rated operational voltagePower circuit Power circuit <= 300 V DC
[Uimp] rated impulse withstand voltage8 kV IEC 60947
[Icw] rated short-time withstand current135 A 104 °F (40 °C) - 10 min for power circuit 320 A 104 °F (40 °C) - 1 min for power circuit 640 A 104 °F (40 °C) - 10 s for power circuit 990 A 104 °F (40 °C) - 1 s for power circuit
Breaking capacity1100 A at 440 V for power circuit conforming to IEC 60947
[Ie] rated operational current125 A (at 80 A (at 80 A (at 55 A (at <140 °F (60 °C)) at <= 400 V AC AC-4 for power circuit
[Ith] conventional free air thermal current125 A (at 140 °F (60 °C)) for power circuit

All specifications

LP1D80004BW additional specifications
ParameterValue
Inrush power in22 W 68 °F (20 °C))
Power dissipation per pole12.5 W AC-1
Hold-in power consumption in22 W 68 °F (20 °C)
Poles description4P
Pole contact composition4 NO
Utilisation categoryAC-1
IP degree of protectionIP20 front face IEC 60529
Mounting supportRail Plate
Connections - terminalsControl circuit: screw clamp terminals 1 0.002...0.006 in² (1...4 mm²) - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 2 0.002...0.006 in² (1...4 mm²) - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 2 0.002...0.004 in² (1...2.5 mm²) - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 1 0.002...0.006 in² (1...4 mm²) - cable stiffness: solid Control circuit: screw clamp terminals 2 0.002...0.006 in² (1...4 mm²) - cable stiffness: solid Power circuit: connector 1 0.006...0.08 in² (4...50 mm²) - cable stiffness: flexible without cable end Power circuit: connector 2 0.006...0.04 in² (4...25 mm²) - cable stiffness: flexible without cable end Power circuit: connector 1 0.006...0.08 in² (4...50 mm²) - cable stiffness: flexible with cable end Power circuit: connector 2 0.006...0.02 in² (4...16 mm²) - cable stiffness: flexible with cable end Power circuit: connector 1 0.006...0.08 in² (4...50 mm²) - cable stiffness: solid Power circuit: connector 2 0.006...0.04 in² (4...25 mm²) - cable stiffness: solid Control circuit: screw clamp terminals 1 0.002...0.004 in² (1...2.5 mm²) - cable stiffness: flexible with cable end
Pollution degree3
Operating altitude0...9842.52 ft (0...3000 m)
Depth7.1 in (181 mm)
Width3.8 in (96 mm)
Height5 in (127 mm)
Electrical durability0.8 Mcycles 125 A AC-1 <= 440 V
Mechanical durability4 Mcycles
StandardsCSA C22.2 No 14 EN 60947-4-1 EN 60947-5-1 IEC 60947-4-1 IEC 60947-5-1 UL 60947-4-1
RangeTeSys
CategoryUS10I1222359
Time constant75 ms
Operating time6...20 ms opening 20...35 ms closing
Coil technologyWithout built-in suppressor module
Fire resistance1562 °F (850 °C) IEC 60695-2-1
Flame retardanceV1 conforming to UL 94
Protective coverWithout
Average impedance0.8 mOhm - Ith 125 A 50 Hz for power circuit
Device short nameLP1D
Tightening torqueControl circuit 10.6 lbf.in (1.2 N.m) screw clamp terminals flat Ø 6 mm Control circuit 10.6 lbf.in (1.2 N.m) screw clamp terminals Philips No 2 Power circuit 106.2 lbf.in (12 N.m) connector flat Ø 6 to Ø 8 mm Power circuit 106.2 lbf.in (12 N.m) connector hexagonal 0.2 in (4 mm) Control circuit 10.6 lbf.in (1.2 N.m) lugs-ring terminals pozidriv No 2
Compatibility codeLP1D
Overvoltage categoryIII
Contactor applicationResistive load
Mechanical robustnessVibrations contactor open 2 Gn, 5...300 Hz) Vibrations contactor closed 3 Gn, 5...300 Hz) Shocks contactor open 8 Gn for 11 ms) Shocks contactor closed 10 Gn for 11 ms)
Associated fuse rating200 A gG at 160 A gG at <= 690 V coordination type 2 for power circuit
Maximum operating rate3600 cyc/h at 60 °C
Safety reliability levelB10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Irms rated making capacity1100 A at 440 V for power circuit conforming to IEC 60947
Permissible ambient air temperature around the device-40...140 °F (-40...60 °C) 140...158 °F (60...70 °C) with derating

Product details

The LP1D80004BW: TeSys Deca 4-pole contactor built for high-temperature industrial processes — fire resistance rated 850 °C. The DC wide-range control circuit (without built-in suppressor) requires an external freewheel diode for inductive loads. Control wiring accepts up to 4 mm²; power lugs handle 50 mm² cable.

Mounts on rail or plate via the integrated support. Torque control terminals to 1.2 N·m (Philips No 2), power terminals to 12 N·m (hex 4 mm or flat Ø6–8 mm). Front face IP20 keeps dust and accidental contact out of the panel.

Ratings and durability

Rated breaking capacity 1100 A at 440 V per IEC 60947, suited for switching resistive loads up to 125 A AC-1. Electrical durability 0.8 million cycles at 125 A AC-1 ≤440 V; mechanical durability 4 million cycles.

Certified to CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, and UL 60947-4-1. Flame retardance V1 per UL 94; fire resistance tested at 850 °C.

Frequently asked questions

What is LP1D80004BW's listed depth?

Depth is 7.1 in (181 mm).

What is the range of LP1D80004BW?

It belongs to the TeSys Deca range.

What compliance documentation does this part have?

It is certified to UL 60947-4-1, CSA C22.2 No 14, IEC 60947-4-1, and EN 60947-4-1, among others listed in the standards.
