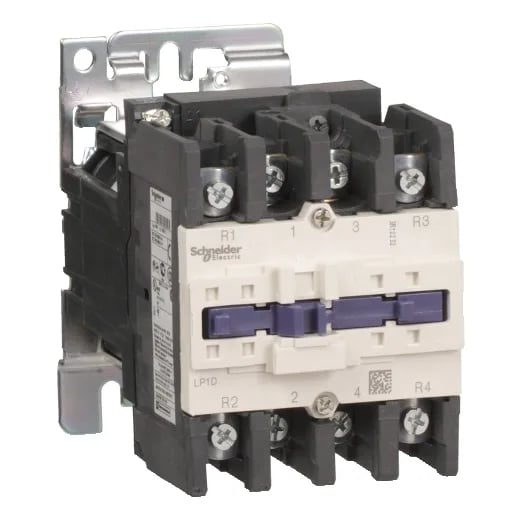

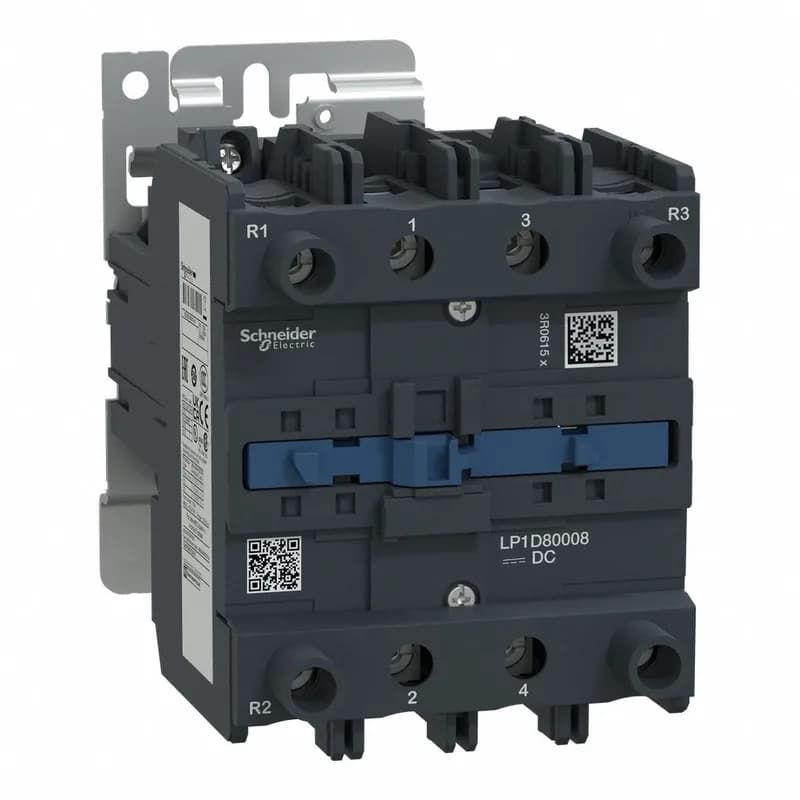

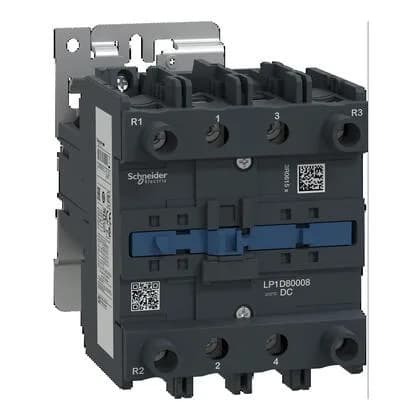

Schneider Electric LP1D80008BD

Schneider LP1D80008BD TeSys Deca Contactor 125A AC-1 4P

MPNLP1D80008BD
Active

Schneider Electric TeSys Deca LP1D80008BD 4-pole contactor, rated 125 A in AC-1 utilisation category, DC coil, IP20 front face.

$220.98Ref. price · indicative, final on quote
Schneider Electric LP1D80008BD datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

LP1D80008BD key specifications
ParameterValue
Range of productTeSys Deca
Control circuit typeDC DC standard
Product or component typeContactor
Coil voltage24 V DC
VoltagePower circuit 600 V CSA Power circuit 600 V UL Power circuit 1000 V IEC 60947-4-1
Control circuit voltage limits0.1...0.3 Uc (-40...131 °F (-40...55 °C)):drop-out DC 0.85...1.1 Uc (-40...131 °F (-40...55 °C)):operational DC
[Ue] rated operational voltagePower circuit <= 690 V AC 25...400 Hz
[Uimp] rated impulse withstand voltage8 kV IEC 60947
[Icw] rated short-time withstand current135 A 104 °F (40 °C) - 10 min for power circuit 320 A 104 °F (40 °C) - 1 min for power circuit 640 A 104 °F (40 °C) - 10 s for power circuit 990 A 104 °F (40 °C) - 1 s for power circuit
Breaking capacity1100 A at 440 V for power circuit conforming to IEC 60947
[Ie] rated operational current125 A (at <140 °F (60 °C)) at <= 440 V AC AC-1 for power circuit
[Ith] conventional free air thermal current125 A (at 140 °F (60 °C)) for power circuit

All specifications

LP1D80008BD additional specifications
ParameterValue
Inrush power in22 W 68 °F (20 °C))
Power dissipation per pole12.5 W AC-1
Hold-in power consumption in22 W 68 °F (20 °C)
Poles description4P
Pole contact composition2 NO + 2 NC
Utilisation categoryAC-1
IP degree of protectionIP20 front face IEC 60529
Mounting supportPlate Rail
Connections - terminalsControl circuit: screw clamp terminals 1 0.002...0.006 in² (1...4 mm²) - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 2 0.002...0.006 in² (1...4 mm²) - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 2 0.002...0.004 in² (1...2.5 mm²) - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 1 0.002...0.006 in² (1...4 mm²) - cable stiffness: solid Control circuit: screw clamp terminals 2 0.002...0.006 in² (1...4 mm²) - cable stiffness: solid Power circuit: connector 1 0.006...0.08 in² (4...50 mm²) - cable stiffness: flexible without cable end Power circuit: connector 2 0.006...0.04 in² (4...25 mm²) - cable stiffness: flexible without cable end Power circuit: connector 1 0.006...0.08 in² (4...50 mm²) - cable stiffness: flexible with cable end Power circuit: connector 2 0.006...0.02 in² (4...16 mm²) - cable stiffness: flexible with cable end Power circuit: connector 1 0.006...0.08 in² (4...50 mm²) - cable stiffness: solid Power circuit: connector 2 0.006...0.04 in² (4...25 mm²) - cable stiffness: solid Control circuit: screw clamp terminals 1 0.002...0.004 in² (1...2.5 mm²) - cable stiffness: flexible with cable end
Pollution degree3
Operating altitude0...9842.52 ft (0...3000 m)
Depth7.7 in (196 mm)
Width3.8 in (96 mm)
Height5 in (127 mm)
Electrical durability0.8 Mcycles 125 A AC-1 <= 440 V
Mechanical durability10 Mcycles
StandardsCSA C22.2 No 14 EN 60947-4-1 EN 60947-5-1 IEC 60947-4-1 IEC 60947-5-1 UL 60947-4-1
RangeTeSys
CategoryUS10I1222359
Time constant75 ms
Operating time6...20 ms opening 20...35 ms closing
Coil technologyWithout built-in suppressor module
Fire resistance1562 °F (850 °C) IEC 60695-2-1
Flame retardanceV1 conforming to UL 94
Protective coverWith
Average impedance0.8 mOhm - Ith 125 A 50 Hz for power circuit
Device short nameLP1D
Tightening torqueControl circuit 10.6 lbf.in (1.2 N.m) screw clamp terminals flat Ø 6 mm Control circuit 10.6 lbf.in (1.2 N.m) screw clamp terminals Philips No 2 Power circuit 106.2 lbf.in (12 N.m) connector flat Ø 6 to Ø 8 mm Power circuit 106.2 lbf.in (12 N.m) connector hexagonal 0.2 in (4 mm) Control circuit 10.6 lbf.in (1.2 N.m) screw clamp terminals pozidriv No 2
Compatibility codeLP1D
Overvoltage categoryIII
Contactor applicationResistive load
Mechanical robustnessVibrations contactor open 2 Gn, 5...300 Hz) Vibrations contactor closed 3 Gn, 5...300 Hz) Shocks contactor open 8 Gn for 11 ms) Shocks contactor closed 10 Gn for 11 ms)
Associated fuse rating200 A gG at 160 A gG at <= 690 V coordination type 2 for power circuit
Maximum operating rate3600 cyc/h at 60 °C
Safety reliability levelB10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Irms rated making capacity1100 A at 440 V for power circuit conforming to IEC 60947
Permissible ambient air temperature around the device-40...140 °F (-40...60 °C) 140...158 °F (60...70 °C) with derating

Product details

Part overview and key rating

DC standard coil. Opening time 6–20 ms, closing time 20–35 ms.

Physical and mounting specification

Dimensions are 196 mm deep, 96 mm wide, and 127 mm tall. Mounting support is plate or rail. Power circuit terminals accept 4–50 mm² flexible or solid cable; control circuit terminals accept 1–4 mm². Tightening torque for power connections is 106.2 lbf·in (12 N·m); control circuit is 10.6 lbf·in (1.2 N·m).

Sourcing posture

As an active part available through our supply channel, the LP1D80008BD is quoted to order. Submit an RFQ specifying quantity and target lead time for a firm delivery commitment.

Frequently asked questions

What are the key electrical ratings?

The contactor is rated for 125 A in AC-1 utilisation category (resistive loads), with 4 poles. Coil is DC standard. Mechanical durability is 10 million cycles; electrical durability is 0.8 million cycles at 125 A AC-1.

What compliance certifications does this part carry?

It is certified under UL 60947-4-1, IEC 60947-4-1, IEC 60947-5-1, EN 60947-4-1, EN 60947-5-1, and CSA C22.2 No 14.
