Schneider Electric LP1D80008FD

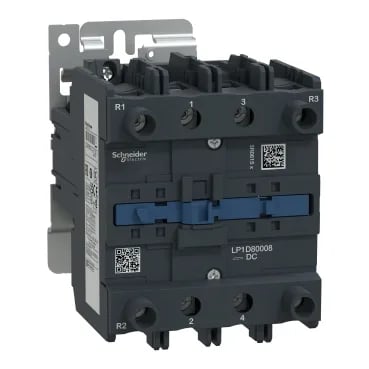

Schneider LP1D80008FD TeSys Deca contactor, 125 A AC-1, 110 V DC

MPNLP1D80008FD
Active

Schneider Electric TeSys Deca LP1D80008FD 4-pole contactor, 125 A AC-1 switching current, 110 V DC coil, 0.8 Mcycles electrical life, 10 Mcycles mechanical, IP20 front face, UL/CSA/CCC/DNV-GL certified.

$734.62Ref. price · indicative, final on quote
Schneider Electric LP1D80008FD datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

LP1D80008FD key specifications
ParameterValue
Range of productTeSys Deca
Control circuit typeDC DC standard
Product or component typeContactor
Coil voltage110 V DC
VoltagePower circuit 600 V CSA Power circuit 600 V UL Power circuit 1000 V IEC 60947-4-1
Control circuit voltage limits0.1...0.3 Uc (-40...131 °F (-40...55 °C)):drop-out DC 0.85...1.1 Uc (-40...131 °F (-40...55 °C)):operational DC
[Ue] rated operational voltagePower circuit <= 690 V AC 25...400 Hz
[Uimp] rated impulse withstand voltage8 kV IEC 60947
[Icw] rated short-time withstand current135 A 104 °F (40 °C) - 10 min for power circuit 320 A 104 °F (40 °C) - 1 min for power circuit 640 A 104 °F (40 °C) - 10 s for power circuit 990 A 104 °F (40 °C) - 1 s for power circuit
Breaking capacity1100 A at 440 V for power circuit conforming to IEC 60947
[Ie] rated operational current125 A (at <140 °F (60 °C)) at <= 440 V AC AC-1 for power circuit
[Ith] conventional free air thermal current125 A (at 140 °F (60 °C)) for power circuit

All specifications

LP1D80008FD additional specifications
ParameterValue
Inrush power in22 W 68 °F (20 °C))
Power dissipation per pole12.5 W AC-1
Hold-in power consumption in22 W 68 °F (20 °C)
Poles description4P
Pole contact composition2 NO + 2 NC
Utilisation categoryAC-1
IP degree of protectionIP20 front face IEC 60529
Mounting supportRail Plate
Connections - terminalsControl circuit: screw clamp terminals 1 0.002...0.006 in² (1...4 mm²) - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 2 0.002...0.006 in² (1...4 mm²) - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 2 0.002...0.004 in² (1...2.5 mm²) - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 1 0.002...0.006 in² (1...4 mm²) - cable stiffness: solid Control circuit: screw clamp terminals 2 0.002...0.006 in² (1...4 mm²) - cable stiffness: solid Power circuit: connector 1 0.006...0.08 in² (4...50 mm²) - cable stiffness: flexible without cable end Power circuit: connector 2 0.006...0.04 in² (4...25 mm²) - cable stiffness: flexible without cable end Power circuit: connector 1 0.006...0.08 in² (4...50 mm²) - cable stiffness: flexible with cable end Power circuit: connector 2 0.006...0.02 in² (4...16 mm²) - cable stiffness: flexible with cable end Power circuit: connector 1 0.006...0.08 in² (4...50 mm²) - cable stiffness: solid Power circuit: connector 2 0.006...0.04 in² (4...25 mm²) - cable stiffness: solid Control circuit: screw clamp terminals 1 0.002...0.004 in² (1...2.5 mm²) - cable stiffness: flexible with cable end
Pollution degree3
Operating altitude0...9842.52 ft (0...3000 m)
Depth7.7 in (196 mm)
Width3.8 in (96 mm)
Height5 in (127 mm)
Electrical durability0.8 Mcycles 125 A AC-1 <= 440 V
Mechanical durability10 Mcycles
StandardsCSA C22.2 No 14 EN 60947-4-1 EN 60947-5-1 IEC 60947-4-1 IEC 60947-5-1 UL 60947-4-1
RangeTeSys
Category22359-CTR,TESYS D,OPEN,80-150A AC&DC
Time constant75 ms
Operating time6...20 ms opening 20...35 ms closing
Coil technologyWithout built-in suppressor module
Fire resistance1562 °F (850 °C) IEC 60695-2-1
Flame retardanceV1 conforming to UL 94
Protective coverWith
Average impedance0.8 mOhm - Ith 125 A 50 Hz for power circuit
Device short nameLP1D
Tightening torqueControl circuit 10.6 lbf.in (1.2 N.m) screw clamp terminals flat Ø 6 mm Control circuit 10.6 lbf.in (1.2 N.m) screw clamp terminals Philips No 2 Power circuit 106.2 lbf.in (12 N.m) connector flat Ø 6 to Ø 8 mm Power circuit 106.2 lbf.in (12 N.m) connector hexagonal 0.2 in (4 mm) Control circuit 10.6 lbf.in (1.2 N.m) screw clamp terminals pozidriv No 2
Compatibility codeLP1D
Overvoltage categoryIII
Contactor applicationResistive load
Mechanical robustnessVibrations contactor open 2 Gn, 5...300 Hz) Vibrations contactor closed 3 Gn, 5...300 Hz) Shocks contactor open 8 Gn for 11 ms) Shocks contactor closed 10 Gn for 11 ms)
Associated fuse rating200 A gG at 160 A gG at <= 690 V coordination type 2 for power circuit
Maximum operating rate3600 cyc/h at 60 °C
Safety reliability levelB10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Irms rated making capacity1100 A at 440 V for power circuit conforming to IEC 60947
Permissible ambient air temperature around the device-40...140 °F (-40...60 °C) 140...158 °F (60...70 °C) with derating

Product details

Overview

The LP1D80008FD is a Schneider TeSys Deca 4-pole contactor rated for 125 A AC-1 resistive load switching, with a 110 V DC coil and no built-in suppressor module. It carries UL, CSA, CCC, DNV-GL, RINA, BV, and LROS certifications, making it suited for marine and industrial panels requiring global compliance.

Compared to the LC1D40008X6, the LP1D80008FD switches 125 A AC-1 versus 60 A, with a 1100 A rated making capacity at 440 V versus 800 A, and draws 22 W coil power versus 13 VA at 60 Hz.

MPN
LP1D80008FD
