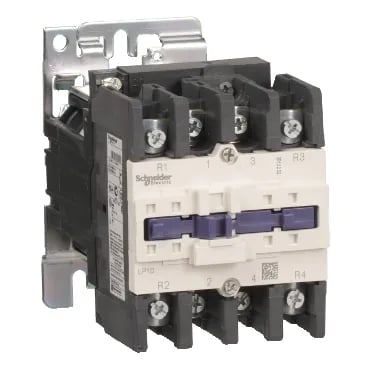

Schneider Electric LP1D80008SD
MPNLP1D80008SD
Obsolete
Contactor, TeSys Deca, 4P(2NO + 2NC), AC-1, <= 440 V 125 A - 72 V DC coil
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Range of product | TeSys Deca |
| Control circuit type | DC DC standard |
| Product or component type | Contactor |
| Coil voltage | 72 V DC |
| Voltage | Power circuit 600 V CSA Power circuit 600 V UL Power circuit 1000 V IEC 60947-4-1 |
| Control circuit voltage limits | 0.1...0.3 Uc (-40...158 °F (-40...70 °C)):drop-out DC 0.85...1.1 Uc (-40...131 °F (-40...55 °C)):operational DC 1...1.1 Uc (131...158 °F (55...70 °C)):operational DC |
| [Ue] rated operational voltage | Power circuit Power circuit <= 300 V DC |
| [Uimp] rated impulse withstand voltage | 8 kV IEC 60947 |
| [Icw] rated short-time withstand current | 135 A 104 °F (40 °C) - 10 min for power circuit 320 A 104 °F (40 °C) - 1 min for power circuit 640 A 104 °F (40 °C) - 10 s for power circuit 990 A 104 °F (40 °C) - 1 s for power circuit |
| Breaking capacity | 1100 A at 440 V for power circuit conforming to IEC 60947 |
| [Ie] rated operational current | 125 A (at <140 °F (60 °C)) at <= 440 V AC AC-1 for power circuit |
| [Ith] conventional free air thermal current | 125 A (at 140 °F (60 °C)) for power circuit |
All specifications
| Parameter | Value |
|---|---|
| Inrush power in | 22 W 68 °F (20 °C)) |
| Power dissipation per pole | 12.5 W AC-1 |
| Hold-in power consumption in | 22 W 68 °F (20 °C) |
| Poles description | 4P |
| Pole contact composition | 2 NO + 2 NC |
| Utilisation category | AC-1 |
| IP degree of protection | IP20 front face IEC 60529 |
| Mounting support | Plate Rail |
| Connections - terminals | Control circuit: screw clamp terminals 1 0.002...0.006 in² (1...4 mm²) - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 2 0.002...0.006 in² (1...4 mm²) - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 2 0.002...0.004 in² (1...2.5 mm²) - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 1 0.002...0.006 in² (1...4 mm²) - cable stiffness: solid Control circuit: screw clamp terminals 2 0.002...0.006 in² (1...4 mm²) - cable stiffness: solid Power circuit: connector 1 0.006...0.08 in² (4...50 mm²) - cable stiffness: flexible without cable end Power circuit: connector 2 0.006...0.04 in² (4...25 mm²) - cable stiffness: flexible without cable end Power circuit: connector 1 0.006...0.08 in² (4...50 mm²) - cable stiffness: flexible with cable end Power circuit: connector 2 0.006...0.02 in² (4...16 mm²) - cable stiffness: flexible with cable end Power circuit: connector 1 0.006...0.08 in² (4...50 mm²) - cable stiffness: solid Power circuit: connector 2 0.006...0.04 in² (4...25 mm²) - cable stiffness: solid Control circuit: screw clamp terminals 1 0.002...0.004 in² (1...2.5 mm²) - cable stiffness: flexible with cable end |
| Pollution degree | 3 |
| Operating altitude | 0...9842.52 ft (0...3000 m) |
| Depth | 7.7 in (196 mm) |
| Width | 3.8 in (96 mm) |
| Height | 5 in (127 mm) |
| Electrical durability | 0.8 Mcycles 125 A AC-1 <= 440 V |
| Mechanical durability | 4 Mcycles |
| Standards | CSA C22.2 No 14 EN 60947-4-1 EN 60947-5-1 IEC 60947-4-1 IEC 60947-5-1 UL 508 |
| Range | TeSys |
| Category | 22359-CTR,TESYS D,OPEN,80-150A AC&DC |
| Time constant | 75 ms |
| Operating time | 6...20 ms opening 20...35 ms closing |
| Coil technology | Without built-in suppressor module |
| Fire resistance | 1562 °F (850 °C) IEC 60695-2-1 |
| Flame retardance | V1 conforming to UL 94 |
| Protective cover | Without |
| Average impedance | 0.8 mOhm - Ith 125 A 50 Hz for power circuit |
| Device short name | LP1D |
| Tightening torque | Control circuit 10.6 lbf.in (1.2 N.m) screw clamp terminals flat Ø 6 mm Control circuit 10.6 lbf.in (1.2 N.m) screw clamp terminals Philips No 2 Power circuit 106.2 lbf.in (12 N.m) connector flat Ø 6 to Ø 8 mm Power circuit 106.2 lbf.in (12 N.m) connector hexagonal 0.2 in (4 mm) |
| Compatibility code | LP1D |
| Overvoltage category | III |
| Contactor application | Resistive load |
| Mechanical robustness | Vibrations contactor open 2 Gn, 5...300 Hz) Vibrations contactor closed 3 Gn, 5...300 Hz) Shocks contactor open 8 Gn for 11 ms) Shocks contactor closed 10 Gn for 11 ms) |
| Associated fuse rating | 200 A gG at 160 A gG at <= 690 V coordination type 2 for power circuit |
| Safety reliability level | B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1 |
| Irms rated making capacity | 1100 A at 440 V for power circuit conforming to IEC 60947 |
| Permissible ambient air temperature around the device | -40...140 °F (-40...60 °C) 140...158 °F (60...70 °C) with derating |
