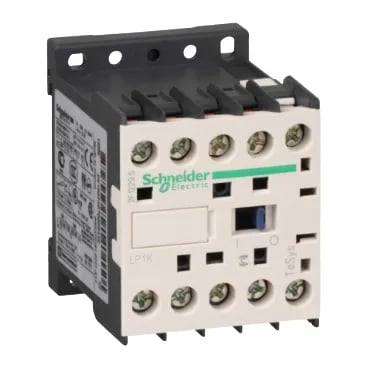

Its conventional free-air thermal current (Ith) is 20 A at 50 °C for the power circuit, and the rated operational current (Ie) is 20 A at 690 V AC, 50/60 Hz. That AC-1 rating means it handles resistive loads like heaters or lighting banks at full rated current without derating for motor inrush; for motor duty (AC-3) you would need a different rating. The coil is 60 V DC, with an operating range of 0.8 to 1.15 times the control voltage and a drop-out band of 0.1 to 0.75 Uc below 50 °C. Inrush power at 20 °C is 3 W; hold-in power is also 3 W — a continuous-duty coil, not a power-saver design.
Screw-clamp terminals accept a Philips No 2 or flat 6 mm screwdriver at 1.3 N·m tightening torque. The 4-pole, all-NO configuration means it switches four independent resistive circuits simultaneously; no auxiliary contacts are integrated, so add a separate block if you need a feedback signal.
Approvals and standards
Certified to EN/IEC 60947-4-1, GB/T 14048.4, UL 60947-4-1, CSA C22.2 No 60947-4-1, and JIS C8201-4-1. Overvoltage category III, rated impulse withstand voltage 8 kV. Flame retardance meets UL 94 V1 and NF F 16-101/102 requirements. These approvals cover most industrial control panels in North America, Europe, and Asia.
