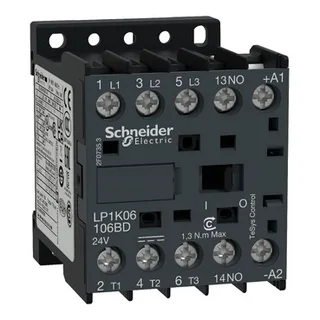

LP1K06106BD3
Schneider Electric
Lead time on requestGet quote
Schneider Electric LP1K Series
67 variants · Schneider Electric
About the Schneider Electric LP1K Series
The Schneider Electric LP1K Series series groups 67 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common main product or component type of Contactor. Variants differ by depth, height and utilization category, so you can match the exact depth your application requires using the selection guide below.
Select a variant by
- Depth
- 2.2 in (57 mm) · 57 mm
- Height
- 2.3 in (58 mm) · 58 mm
- Utilization category
- AC-1 · AC-1 AC-4 AC-3 · AC-3 AC-1 AC-3e · AC-3 AC-4 · AC-4 AC-1 AC-3 · AC-4 AC-3
- Width
- 1.8 in (45 mm) · 45 mm
- Application
- Resistive load · Resistive load, Motor control
- Operating temperature
- -25...50 °C · -13...122 °F (-25...50 °C)
- Storage temperature
- -58...176 °F (-50...80 °C) · -50...80 °C
Shared specifications
- Main product or component type
- Contactor
Variant comparison
| Parameter | LP1K06105ED | LP1K06105ED3 | LP1K06106BD3 | LP1K09004KD | LP1K09004ZD | LP1K09008GD3 |
|---|---|---|---|---|---|---|
| Depth | 2.2 in (57 mm) | 2.2 in (57 mm) | 57 mm | 57 mm | 57 mm | 57 mm |
| Height | 2.3 in (58 mm) | 2.3 in (58 mm) | 58 mm | 58 mm | 58 mm | 58 mm |
| Utilization category | AC-4 AC-3 | AC-3 AC-4 | AC-4 AC-3 | AC-1 | AC-1 | AC-1 |
| Width | 1.8 in (45 mm) | 1.8 in (45 mm) | 45 mm | 45 mm | 45 mm | 45 mm |
| Application | — | — | — | Resistive load | Resistive load | Resistive load |
| Operating temperature | — | — | — | -25...50 °C | -25...50 °C | -25...50 °C |
| Storage temperature | — | — | — | -50...80 °C | -50...80 °C | -50...80 °C |
Request a quote on any Schneider Electric LP1K Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
