Rated AC-3 12 A at 440 V, it handles a 3-phase motor up to that switching duty; the 72 V DC coil pulls in reliably on a standard control supply. IP20 finger-safe terminals (VDE 0106) mean it's protected against accidental contact in an enclosure.

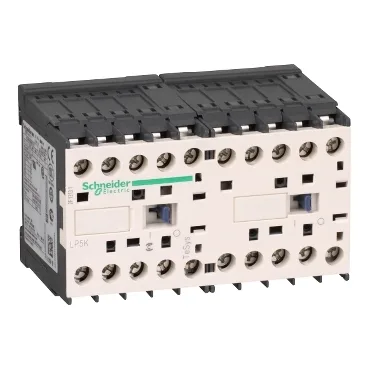

Schneider TeSys K LP5K12105SW3 reversing contactor, 12A AC-3
MPNLP5K12105SW3
Obsolete
Schneider Electric TeSys K reversing contactor, 3P, AC-3 12 A at 440 V, 72 V DC coil, IP20.
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Product / component type | Reversing contactor |
| Series / range | TeSys |
| Application | Motor control Resistive load |
| Parameter | Value |
|---|---|
| Rated operational voltage (Ue) | Power circuit: 690 V AC 50/60 Hz Signalling circuit: 10 MOhm for signalling circuit |
| Utilisation category | AC-3 AC-1 AC-4 |
| Parameter | Value |
|---|---|
| Pole configuration | 3P |
| Parameter | Value |
|---|---|
| IP degree of protection | IP20 conforming to VDE 0106 |
| Operating altitude | 2000 m without derating |
| Mechanical robustness | Shocks contactor closed, on Z axis: 15 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor opened, on Z axis: 10 Gn for 11 ms conforming to IEC 60068-2-27 Vibrations contactor closed: 4 Gn, 5...300 Hz conforming to IEC 60068-2-6 Vibrations contactor opened: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6 Shocks contactor opened, on X axis: 10 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor opened, on Y axis: 6 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor closed, on X axis: 15 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor closed, on Y axis: 10 Gn for 11 ms conforming to IEC 60068-2-27 |
| Protective treatment / pollution degree | TC conforming to IEC 60068 TC conforming to DIN 50016 |
| Flame retardance | V1 conforming to UL 94 Requirement 2 conforming to NF F 16-101 Requirement 2 conforming to NF F 16-102 |
| Parameter | Value |
|---|---|
| Width | 90 mm |
| Height | 58 mm |
| Depth | 57 mm |
Product details
Frequently asked questions
What is the closest alternative to LP5K12105SW3 in the TeSys family?
The manufacturer does not list a direct drop-in successor for this obsolete code. A current TeSys K or TeSys D reversing contactor with a 72 V DC coil and 12 A AC-3 rating would be the functional equivalent, but pinout and busbar arrangement must be verified against your panel layout.
What are the key ratings for LP5K12105SW3?
It is a 3-pole reversing contactor rated AC-3 12 A at 440 V, with a 72 V DC coil. The power circuit is rated for 690 V AC 50/60 Hz. IP20 protection, UL 94 V1 flame retardance, and dimensions of 90×58×57 mm.
