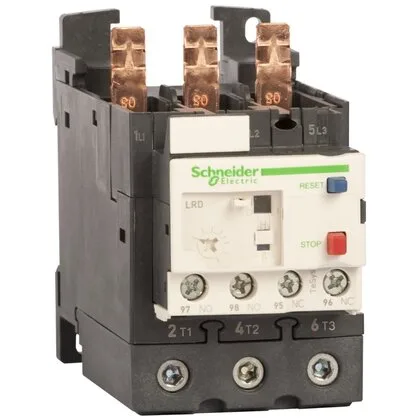

Schneider Electric LR3D318

Schneider LR3D318 TeSys Deca thermal overload relay, Class 10A

MPNLR3D318
Active

Schneider LR3D318 Solid State Overload Relays.

$143.21Ref. price · indicative, final on quote
Schneider Electric LR3D318 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

LR3D318 key specifications
ParameterValue
Control typeRed push-button stop Blue push-button reset
Network typeDC AC
Product or component typeNon differential thermal overload relay
Climatic withstandIACS E10
VoltagePower circuit 600 V CSA Power circuit 600 V UL Power circuit 690 V IEC 60947-4-1
[Ue] rated operational voltage690 V AC 0...400 Hz power circuit IEC 60947-4-1
[Uimp] rated impulse withstand voltage6 kV
Permissible current0.95 A 380 V AC-15 signalling circuit 0.06 A 440 V DC-13 signalling circuit
[Ith] conventional free air thermal current5 A signalling circuit
Network frequency0...400 Hz
Phase failure sensitivityTripping current 130 % of Ir on two phase, the last one at 0
IP degree of protectionIP20 conforming to IEC 60529

All specifications

LR3D318 additional specifications
ParameterValue
Mounting supportPlate, with specific accessories Rail, with specific accessories Under contactor
Connections - terminalsControl circuit screw clamp terminals 2 0.002...0.004 in² (1...2.5 mm²) flexible without cable end Control circuit screw clamp terminals 2 0.002...0.004 in² (1...2.5 mm²) flexible with cable end Control circuit screw clamp terminals 2 0.002...0.004 in² (1...2.5 mm²) solid without cable end Power circuit EverLink BTR screw connectors 1 0.002...0.05 in² (1...35 mm²) flexible without cable end Power circuit EverLink BTR screw connectors 1 0.002...0.05 in² (1...35 mm²) flexible with cable end Power circuit EverLink BTR screw connectors 1 0.002...0.05 in² (1...35 mm²) solid without cable end
Depth4.8 in (123 mm)
Width2.2 in (55 mm)
Height2.8 in (70 mm)
StandardsEN/IEC 60947-4-1 EN/IEC 60947-5-1 UL 60947-4-1 UL 60947-5-1 CSA C22.2 No 60947-4-1 CSA C22.2 No 60947-5-1 GB/T 14048.4 GB/T 14048.5
RangeTeSys TeSys Deca
CategoryUS10I1222347
Flame retardanceV1 conforming to UL 94
Device short nameLR3D
Relay applicationMotor protection
Tightening torqueControl circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals Power circuit 44.3 lbf.in (5 N.m) EverLink BTR screw connectors
Tripping threshold1.14 +/- 0.06 Ir IEC 60947-4-1
Dielectric strength1.89 kV 50 Hz IEC 60947-1
Mechanical robustnessShocks15 Gn for 11 ms IEC 60068-2-7 Vibrations4 gn IEC 60068-2-6
Associated fuse rating4 A gG for signalling circuit 4 A BS for signalling circuit
Thermal overload classClass 10A IEC 60947-4-1
Temperature compensation-4...140 °F (-20...60 °C)
Auxiliary contact composition1 NO + 1 NC
Ambient air temperature for storage-76...158 °F (-60...70 °C)
Thermal protection adjustment range12...18 A
Ambient air temperature for operation-4...140 °F (-20...60 °C) without derating IEC 60947-4-1

Product details

Overview

The LR3D318 is a TeSys Deca non-differential thermal overload relay from Schneider, rated Class 10A per IEC 60947-4-1 and carrying 1 NO + 1 NC auxiliary contacts for trip and alarm signalling. It mounts directly on LC1D40A, LC1D65A, and LC1D50A contactors; power-circuit EverLink BTR screw connectors torque to 44.3 lbf.in (5 N.m) and accept up to 35 mm² cable.

Protection characteristics

Phase-failure sensitivity trips at 130 % of Ir on two phases with the third at zero, and the tripping threshold is fixed at 1.14 ± 0.06 Ir — no adjustable dial, so set the motor FLA at the contactor selection stage.

Certifications and sourcing

Carries IEC, UL, CSA, CCC, EAC, DNV-GL, RMRS, and Lloyds Register approvals; it is a current catalogue item with lead time confirmed per RFQ.

MPN
LR3D318
