Schneider Electric LUCB1XBL

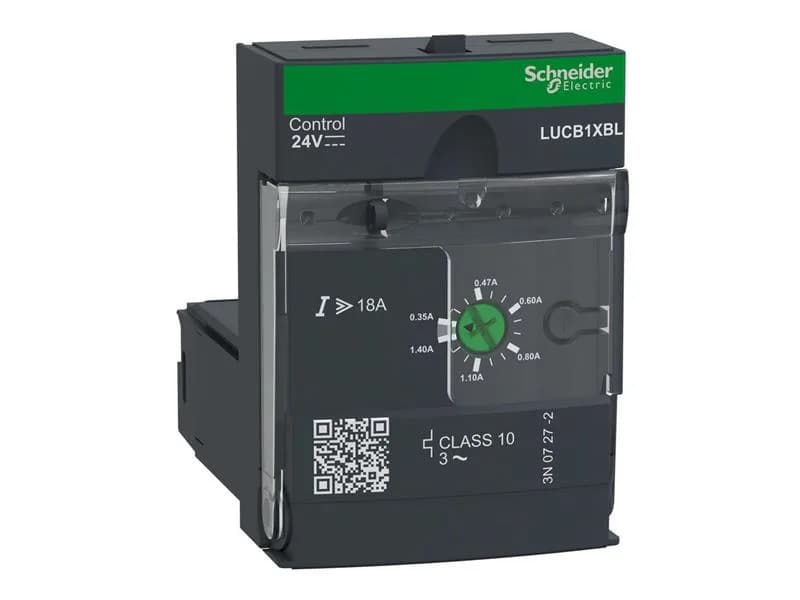

Schneider Electric LUCB1XBL TeSys Ultra Control Unit, 24 VDC

MPNLUCB1XBL
Active

Schneider Electric TeSys Ultra, Advanced Control Unit, LUCB1XBL, 24 V DC control circuit, manual reset, plug-in front face, overload and phase failure protection.

$50.93Ref. price · indicative, final on quote
Schneider Electric LUCB1XBL datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

LUCB1XBL key specifications
ParameterValue
Load type3-phase motor self-cooled
Range of productTeSys Ultra
Product or component typeAdvanced control unit
Immunity to voltage dips70 % / 500 ms IEC 61000-4-11
Coil voltage24 V DC
Voltage690 V IEC 60947-6-2 600 V UL 60947-4-1 600 V CSA C22.2 No 60947-4-1
Control circuit voltage limits20...27 V DC 24 V in operation 14.5 V DC 24 V drop-out
[Ue] rated operational voltage690 V AC
[Uimp] rated impulse withstand voltage6 kV IEC 60947-6-2
Typical current consumption130 mA 24 V DC I maximum while closing with LUB12 220 mA 24 V DC I maximum while closing with LUB32 220 mA 24 V DC I maximum while closing with LUB38 60 mA 24 V DC I rms sealed with LUB12 80 mA 24 V DC I rms sealed with LUB32 80 mA 24 V DC I rms sealed with LUB38
Rated motor current adjustment range0.35...1.4 A
Motor power0.25 kW 400...440 V AC 50/60 Hz

All specifications

LUCB1XBL additional specifications
ParameterValue
Network frequency40...60 Hz
Phase failure sensitivityYes
Utilisation categoryAC-43 AC-44 AC-41
IP degree of protectionIP20 front panel and wired terminals IEC 60947-1 IP20 other faces IEC 60947-1 IP40 front panel outside connection zone IEC 60947-1
Shock resistance10 gn power poles open IEC 60068-2-27 15 gn power poles closed IEC 60068-2-27
Operating altitude6561.68 ft (2000 m)
Vibration resistance2 gn 5...300 Hz power poles open IEC 60068-2-6 4 gn 5...300 Hz power poles closed IEC 60068-2-6
Depth2.4 in (60 mm)
Width1.8 in (45 mm)
Height2.6 in (66 mm)
StandardsEN 60947-6-2 IEC 60947-6-2 UL 60947-4-1, with phase barrier CSA C22.2 No 60947-4-1, with phase barrier
RangeTeSys
ResetManual reset
CategoryUS10I1122397
Fixing modePlug-in (front face)
Operating time35 ms opening with LUB12 control circuit 35 ms opening with LUB32 control circuit 35 ms opening with LUB38 control circuit 70 ms closing with LUB12 control circuit 70 ms closing with LUB32 control circuit 70 ms closing with LUB38 control circuit
Fire resistance1760 °F (960 °C) parts supporting live components IEC 60695-2-12 1202 °F (650 °C) IEC 60695-2-12
Heat dissipation2 W control circuit with LUB12 3 W control circuit with LUB32 3 W control circuit with LUB38
Device short nameLUCB
Compatibility codeLUCB
Device applicationMotor control Motor protection
Tripping threshold14.2 x Ir +/- 20 %
Protective treatmentTH IEC 60068
Thermal overload classClass 10 40...60 Hz -13...158 °F (-25...70 °C) IEC 60947-6-2 Class 10 40...60 Hz -13...158 °F (-25...70 °C) UL 508
Immunity to microbreaks3 ms
Main function availableEarth fault protection Protection against phase failure and phase imbalance Protection against overload and short-circuit Manual reset
Safe separation of circuit400 V SELV between the control and auxiliary circuits IEC 60947-1 400 V SELV between the control or auxiliary circuit and the main circuit IEC 60947-1
Product specific applicationBasic protection and advanced functions, communication
Resistance to fast transients2 kV 3 serial link IEC 61000-4-4 4 kV 4 all circuits except for serial link IEC 61000-4-4
Resistance to radiated fields9.1 V/m (10 V/m) 3 IEC 61000-4-3
Immunity to radioelectric fields10 V IEC 61000-4-6
Ambient air temperature for storage-40...185 °F (-40...85 °C)
Ambient air temperature for operation-13...158 °F (-25...70 °C)
Resistance to electrostatic discharge8 kV 3 in open air IEC 61000-4-2 8 kV 4 on contact IEC 61000-4-2

Product details

The LUCB1XBL is the plug-in advanced control unit for the TeSys Ultra motor management system. It integrates overload, short-circuit, phase failure, and earth fault protection into a single 1.8″ wide module. Communication-ready, it suits basic and advanced motor control applications in MCCs.

Rated for utilization categories AC-41, AC-43, and AC-44, it handles resistive, low-inductive, and high-inductive motor loads — AC-44 covers severe inrush and plugging duty. The 14.2 x Ir trip threshold gives short-circuit protection that coordinates with upstream breakers. Immunity to microbreaks of 3 ms and voltage dips down to 70% for 500 ms means the unit rides through common line disturbances without nuisance tripping. The manual reset forces an operator check after a fault, avoiding automatic restart on a live hazard.

Plug-in mounting on TeSys Ultra base: 24 V DC supply, current up to 220 mA peak / 80 mA sealed, heat 2–3 W, front IP20, terminals IP20, outside IP40, phase barrier for UL/CSA.

Frequently asked questions

What control voltage does it require?

24 V DC.

What protection functions does it provide?

Overload, short-circuit, phase failure/phase imbalance, and earth fault protection. Manual reset.

What standards does it comply with?

EN/IEC 60947-6-2, UL 60947-4-1 with phase barrier, and CSA C22.2 No 60947-4-1 with phase barrier.
