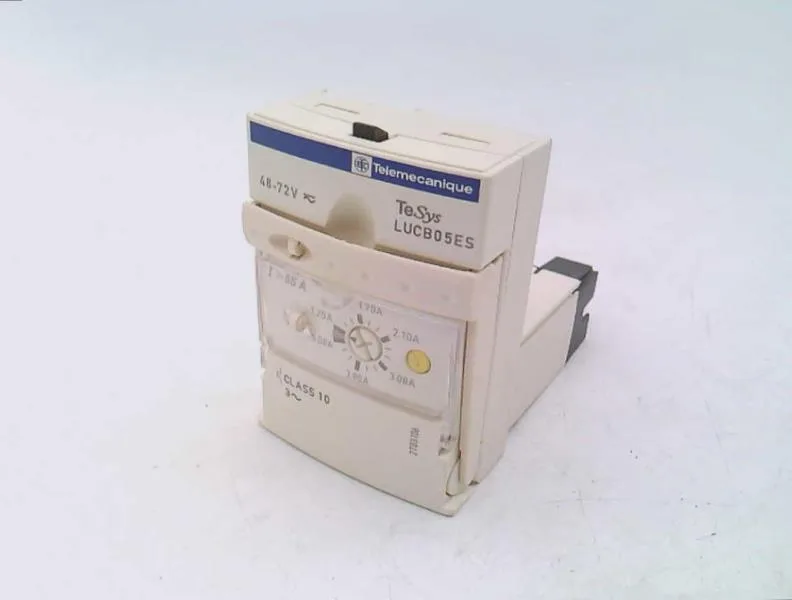

LUCB05ES
Schneider Electric
Motor control Motor protection85 °C-40 °C
Ref. price$62.23 – $162.59
Lead time on requestGet quote
Schneider Electric LUCB Series
25 variants · Schneider Electric
About the Schneider Electric LUCB Series
The Schneider Electric LUCB Series series groups 25 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common application of Motor control Motor protection, depth of 2.4 in (60 mm) and fixing mode of Plug-in (front face). Variants differ by utilization category, so you can match the exact utilization category your application requires using the selection guide below.
Select a variant by
- Utilization category
- AC-41 AC-44 AC-43 · AC-43 AC-41 AC-44 · AC-43 AC-44 AC-41 · AC-44 AC-41 AC-43 · AC-44 AC-43 AC-41
Shared specifications
- Application
- Motor control Motor protection
- Depth
- 2.4 in (60 mm)
- Fixing mode
- Plug-in (front face)
- Height
- 2.6 in (66 mm)
- Load type
- 3-phase motor self-cooled
- Main product or component type
- Advanced control unit
- Operating temperature
- -13...158 °F (-25...70 °C)
- Storage temperature
- -40...185 °F (-40...85 °C)
- Temp operating max
- 70 °C
- Temp operating min
- -25 °C
- Temp storage max
- 85 °C
- Temp storage min
- -40 °C
Variant comparison

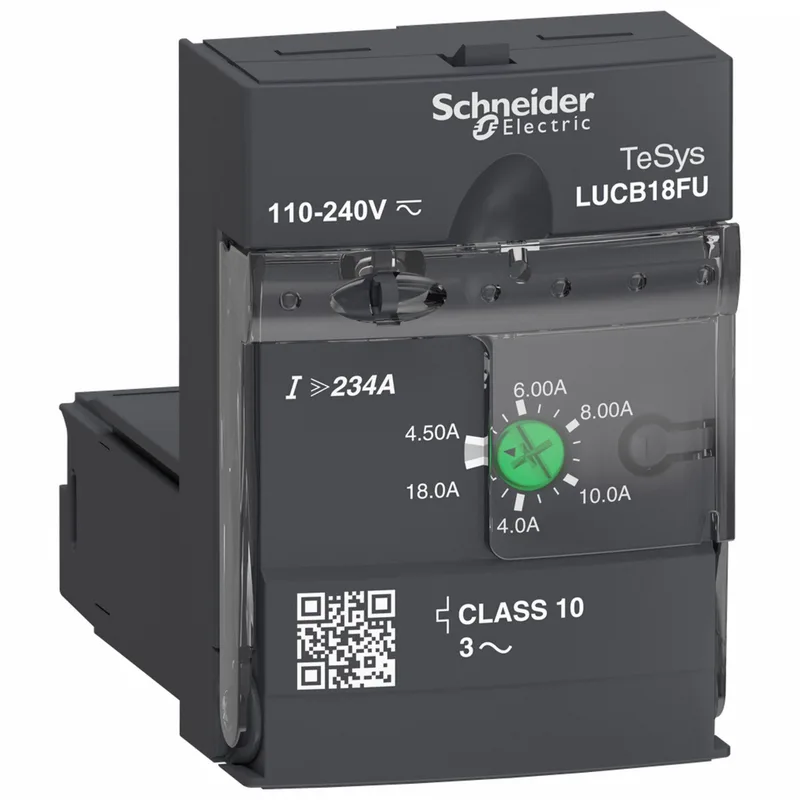

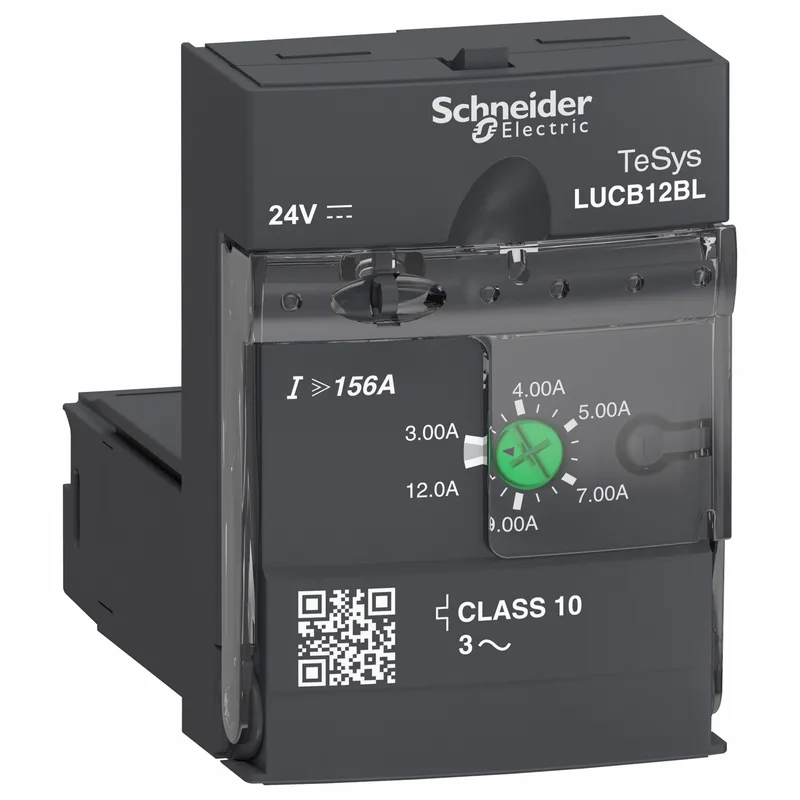

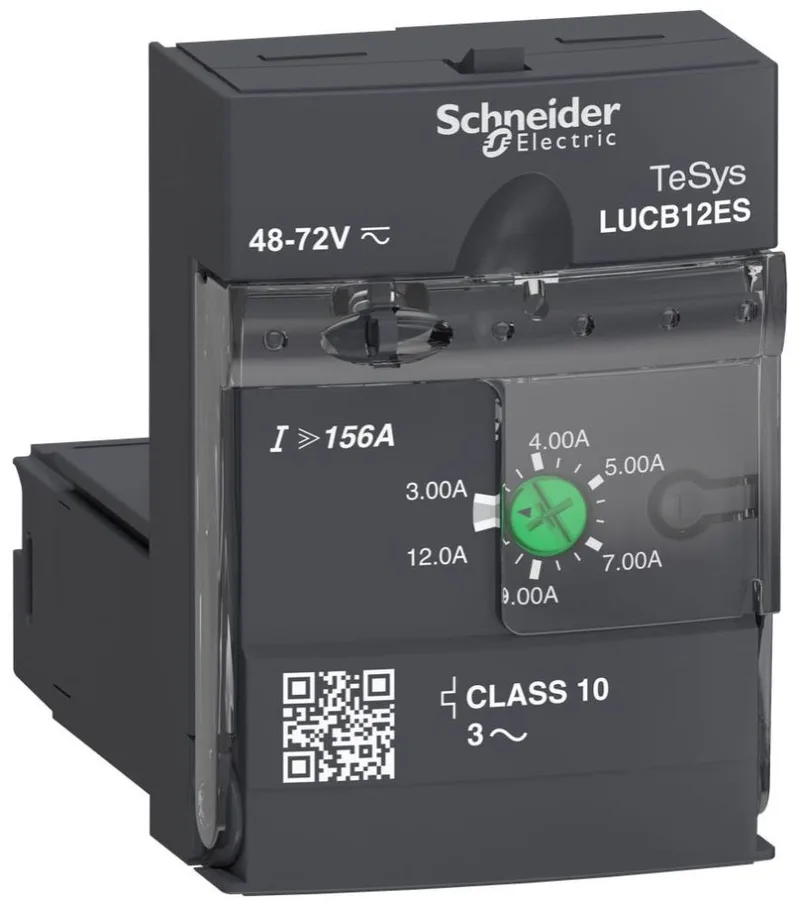

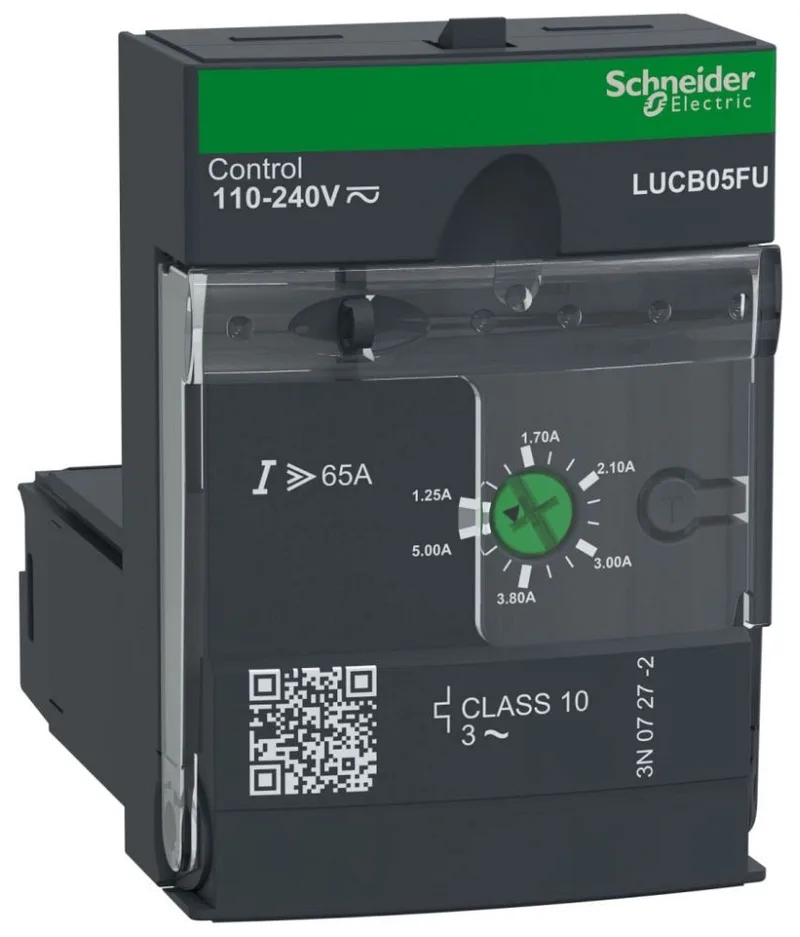

| Parameter | LUCBX6FU | LUCB18FU | LUCB05ES | LUCB05FU | LUCB12B | LUCB12ES |
|---|---|---|---|---|---|---|
| Utilization category | AC-44 AC-43 AC-41 | AC-43 AC-44 AC-41 | AC-43 AC-41 AC-44 | AC-41 AC-44 AC-43 | AC-44 AC-43 AC-41 | AC-43 AC-41 AC-44 |
Request a quote on any Schneider Electric LUCB Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
