Schneider Electric LV429442
MPNLV429442
Active

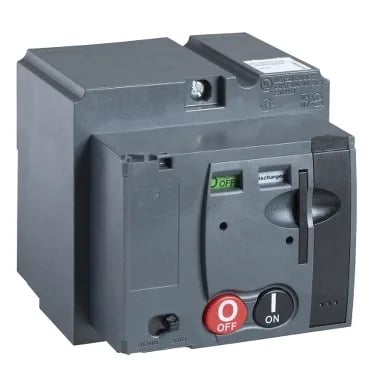

Communicating motor mechanism MTc 100/160, ComPacT NSX100/160, 24VDC to 30VDC
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Product / component type | Motor mechanism |
| Device application | Automatic spring charging |
| Parameter | Value |
|---|---|
| Device short name | MT100/160 |
| Parameter | Value |
|---|---|
| Control type | Communicating |
| Provided equipment | SDE adaptor |
| Control signal type | Impulse Maintained |
| Locking options description | 1 to 3 padlocks Ø 5 to Ø 8 Padlocking in OFF position |
| Maximum operating frequency | 4 per minute |
| Coil voltage | 24/30 V DC |
| Circuit breaker mounting mode | Fixed |
| Circuit breaker response time | < 700 ms open < 80 ms closed |
| Maximum power consumption in | 500 W - closing 500 W - opening |
| Circuit breaker frame rated current | 100 A 160 A |
MPN
LV429442
