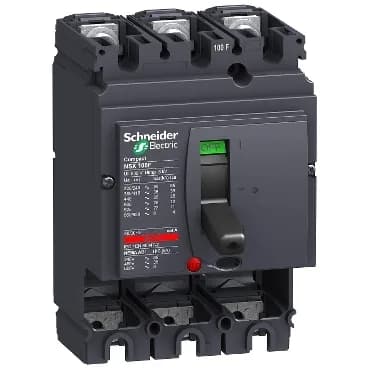

LV429003
3PIP40Distribution
Lead time on requestGet quote
Schneider Electric LV429 Series
141 variants · Schneider Electric
Schneider Electric LV429 Series — schneider
Schneider Electric LV429 Series includes 141 variants for industrial automation. Standardized form factors for DIN rail/panel mounting in motor control centers, distribution boards, and PLC I/O systems.
Applications
Control panels, machine building, building services.
Selection
Match rated current, voltage, poles, and control voltage. Provide complete order code for pricing and availability.
Availability
Standard configurations in distributor inventory.
About the Schneider Electric LV429 Series
The Schneider Electric LV429 Series series groups 141 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Variants differ by main product or component type, application and operating temperature, so you can match the exact main product or component type your application requires using the selection guide below. The range mixes active and legacy part numbers, so you can source both current Schneider Electric LV429 Series variants and discontinued ones from a single page.
Select a variant by
- Main product or component type

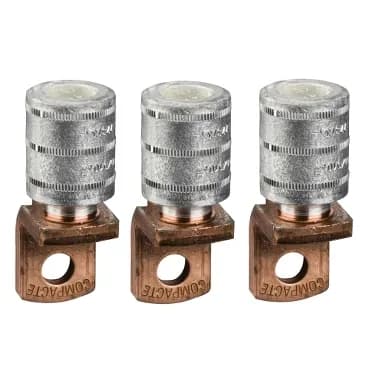

- Bare cable connector · Basic frame · Terminal extension · Trip unit
- Application
- Distribution · Generator · Motor
- Operating temperature
- -25...70 °C · -13...158 °F (-25...70 °C)
- Poles
- 3P · 4P
- Storage temperature
- -58...185 °F (-50...85 °C) · -50...85 °C
- Trip unit type
- Magnetic · Thermal-magnetic
- Terminal pitch
- 1.4 in (35 mm) · 35 mm
Variant comparison
| Parameter | LV429003 | LV429123 | LV429142 | LV429143 | LV429144 | LV429145 |
|---|---|---|---|---|---|---|
| Main product or component type | Basic frame | Trip unit | Trip unit | Trip unit | Trip unit | Trip unit |
| Application | Distribution | Motor | Generator | Generator | Generator | Generator |
| Operating temperature | -13...158 °F (-25...70 °C) | -13...158 °F (-25...70 °C) | -25...70 °C | -25...70 °C | -25...70 °C | -25...70 °C |
| Poles | 3P | 3P | 3P | 3P | 3P | 3P |
| Storage temperature | -58...185 °F (-50...85 °C) | -58...185 °F (-50...85 °C) | -50...85 °C | -50...85 °C | -50...85 °C | -50...85 °C |
| Trip unit type | — | Magnetic | Thermal-magnetic | Thermal-magnetic | Thermal-magnetic | Thermal-magnetic |
| Terminal pitch | 1.4 in (35 mm) | — | — | — | — | — |
Request a quote on any Schneider Electric LV429 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
