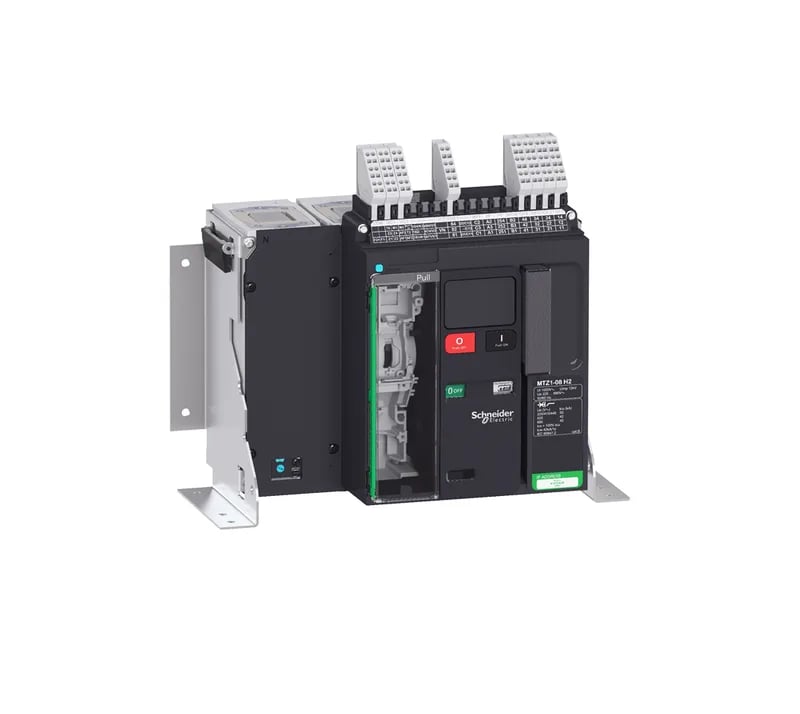

Schneider LV847132 Masterpact Circuit Breaker
MPNLV847132
Active
Circuit Breaker Masterpact
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Control type | Push-button |
| Performance type | L1 150 kA 415 V AC |
| Product or component type | Circuit breaker |
| Voltage | 1000 V AC 50/60 Hz |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 12 kV |
| [Icw] rated short-time withstand current | 10 kA 0.5 s |
| Line rated current | 1000 A 104 °F (40 °C) |
| [Ics] rated service breaking capacity | 150 kA 220/415 V AC 50/60 Hz 130 kA 440 V AC 50/60 Hz 100 kA 500/525 V AC 50/60 Hz |
| [Icm] rated short-circuit making capacity | 330 kA 220/415 V AC 50/60 Hz 286 kA 440 V AC 50/60 Hz 220 kA 500/525 V AC 50/60 Hz 52 kA 660/690 V AC 50/60 Hz |
| [Icu] rated ultimate short-circuit breaking capacity | 150 kA 220/415 V AC 50/60 Hz 130 kA 440 V AC 50/60 Hz 100 kA 500/525 V AC 50/60 Hz |
| Power dissipation in | 110 W |
All specifications
| Parameter | Value |
|---|---|
| Poles description | 3P |
| IP degree of protection | IP30 conforming to EN 60529 |
| Mounting mode | Fixed |
| Mounting support | Rails Base plate |
| Connection pitch | 2.8 in (70 mm) |
| Upside connection | Front Rear |
| Downside connection | Front Rear |
| Maximum closing response time | 50 ms |
| Pollution degree | 3 IEC 60947-1 |
| Operating altitude | 0...6561.68 ft (0...2000 m) without derating 2000...5000 m with derating |
| Depth | 8.2 in (209 mm) |
| Width | 10.9 in (276 mm) |
| Height | 11.9 in (301 mm) |
| Electrical durability | AC-23A 3000 cycles 690 V AC 50/60 Hz EN/IEC 60947-3 AC-23A 6000 cycles 440 V AC 50/60 Hz EN/IEC 60947-3 AC-3 6000 cycles 440 V AC 50/60 Hz EN/IEC 60947-3 2000 cycles 690 V AC 50/60 Hz EN/IEC 60947-2 3000 cycles 440 V AC 50/60 Hz EN/IEC 60947-2 |
| Mechanical durability | 12500 cycles with periodic preventive maintenance |
| Standards | EN/IEC 60947-1 EN/IEC 60947-2 EN/IEC 60947-2 Annex H IEC 61557-12 |
| Range | MasterPacT |
| Control unit | Without control unit |
| Sensor rating | 400 A 630 A 800 A 1000 A |
| Device short name | MTZ1 10 L1 |
| Device application | Power distribution protection |
| Selectivity category | Category A |
| Maximum breaking time | 9 ms |
| Suitability for isolation | Yes EN/IEC 60947-2 |
| Ambient air temperature for storage | -40...185 °F (-40...85 °C) |
| Ambient air temperature for operation | -13...158 °F (-25...70 °C) |
| Integrated instantaneous protection (DIN in kA peak) | 9...11 kA |
MPN
LV847132
