LV847602
Schneider Electric
Equipment protection, monitoring and control-25...70 °C (operating) -35 °C (for start-up of product)4
Ref. price$1,939.29
Lead time on requestGet quote
Schneider Electric LV847 Series
172 variants · Schneider Electric
About the Schneider Electric LV847 Series
The Schneider Electric LV847 Series series groups 172 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common temp operating max of 70 °C. Variants differ by application, main product or component type and operating temperature, so you can match the exact application your application requires using the selection guide below.
Select a variant by
- Application
- Distribution · Equipment protection, monitoring and control · Power distribution protection
- Main product or component type
- Circuit breaker · Control unit · Switch disconnector
- Operating temperature
- -25...70 °C · -25...70 °C (operating) -35 °C (for start-up of product) · -13...158 °F (-25...70 °C)
- Pollution degree
- 3 conforming to EN/IEC 60947-4-1 · 3 conforming to IEC 60947-1 · 3 IEC 60947-1
- Temp operating min
- -35 °C · -25 °C
- Connection surface bottom
- Front · Front Rear
- Connection surface top
- Front · Front Rear
- Depth
- 8.2 in (209 mm) · 209 mm
Shared specifications
- Temp operating max
- 70 °C
Variant comparison
| Parameter | LV847602 | LV847130 | LV847140 | LV847159 | LV847131 | LV847150 |
|---|---|---|---|---|---|---|
| Application | Equipment protection, monitoring and control | Power distribution protection | Power distribution protection | Distribution | Power distribution protection | Power distribution protection |

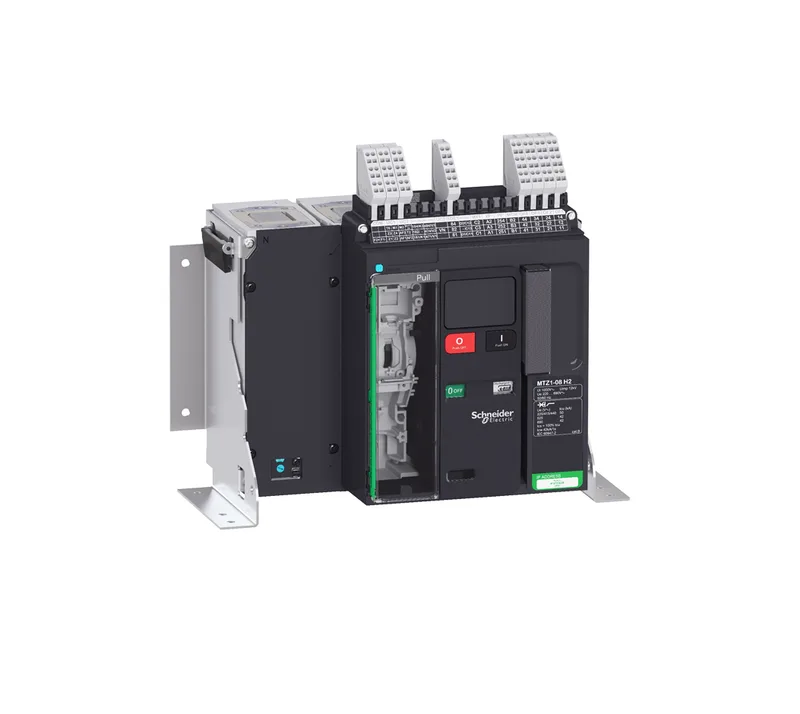

| Main product or component type | Control unit | Circuit breaker | Circuit breaker | Switch disconnector | Circuit breaker | Circuit breaker |
| Operating temperature | -25...70 °C (operating) -35 °C (for start-up of product) | -13...158 °F (-25...70 °C) | -13...158 °F (-25...70 °C) | -25...70 °C | -13...158 °F (-25...70 °C) | -13...158 °F (-25...70 °C) |
| Pollution degree | 3 conforming to IEC 60947-1 | 3 IEC 60947-1 | 3 IEC 60947-1 | 3 conforming to EN/IEC 60947-4-1 | 3 IEC 60947-1 | 3 IEC 60947-1 |
| Temp operating min | -35 °C | -25 °C | -25 °C | -25 °C | -25 °C | -25 °C |
| Connection surface bottom | — | Front Rear | Front Rear | Front | Front Rear | Front Rear |
| Connection surface top | — | Front Rear | Front Rear | Front | Front Rear | Front Rear |
| Depth | — | 8.2 in (209 mm) | 8.2 in (209 mm) | 209 mm | 8.2 in (209 mm) | 8.2 in (209 mm) |
Request a quote on any Schneider Electric LV847 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
