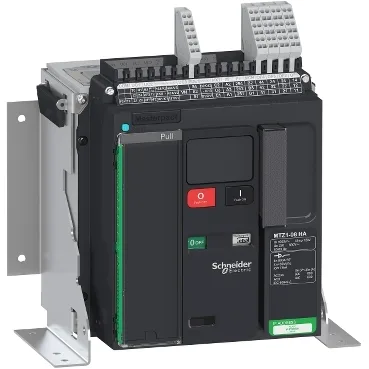

Schneider Electric LV847161
MPNLV847161
Active
Switch-disconnector Masterpact MTZ1 08 HA - 800 A - 3P fixed
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Control type | Push-button |
| Network type | AC |
| Product or component type | Switch disconnector |
| Voltage | 1000 V AC 50/60 Hz EN/IEC 60947-3 |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz EN/IEC 60947-3 |
| [Uimp] rated impulse withstand voltage | 12 kVEN/IEC 60947-3 |
| [Icw] rated short-time withstand current | 20 kA 3 s EN/IEC 60947-3 36 kA 0.5 s EN/IEC 60947-3 36 kA 1 s |
| [Ie] rated operational current | 800 A AC 50/60 Hz 690 V |
| [Icm] rated short-circuit making capacity | 75 kA peak 220...690 V AC 50/60 Hz |
| Network frequency | 50/60 Hz |
| Poles description | 3P |
| Utilisation category | AC-23A AC-3 |
All specifications
| Parameter | Value |
|---|---|
| IP degree of protection | IP30 |
| Mounting mode | Fixed |
| Connection pitch | 2.8 in (70 mm) |
| Upside connection | Front |
| Downside connection | Front |
| Switch-disconnector name | MasterPact MTZ1 08 HA |
| Pollution degree | 3 EN/IEC 60947-4-1 |
| Depth | 8.2 in (209 mm) |
| Width | 10.9 in (276 mm) |
| Height | 11.9 in (301 mm) |
| Electrical durability | AC-23A 6000 cycles 440 V AC 50/60 Hz EN/IEC 60947-3 AC-23A 3000 cycles 690 V AC 50/60 Hz EN/IEC 60947-3 AC-3 6000 cycles 440 V AC 50/60 Hz EN/IEC 60947-3 |
| Mechanical durability | 12500 cycles with periodic preventive maintenance EN/IEC 60947-3 |
| Standards | EN/IEC 60947-3 |
| Range | MasterPact |
| Visible break | No |
| Safety category | HA |
| Device application | Distribution |
| Suitability for isolation | Yes EN/IEC 60947-3 |
| Contact position indicator | Yes |
| Ambient air temperature for storage | -40...185 °F (-40...85 °C) |
| Ambient air temperature for operation | -13...158 °F (-25...70 °C) |
MPN
LV847161
